Connecting a USB Interface

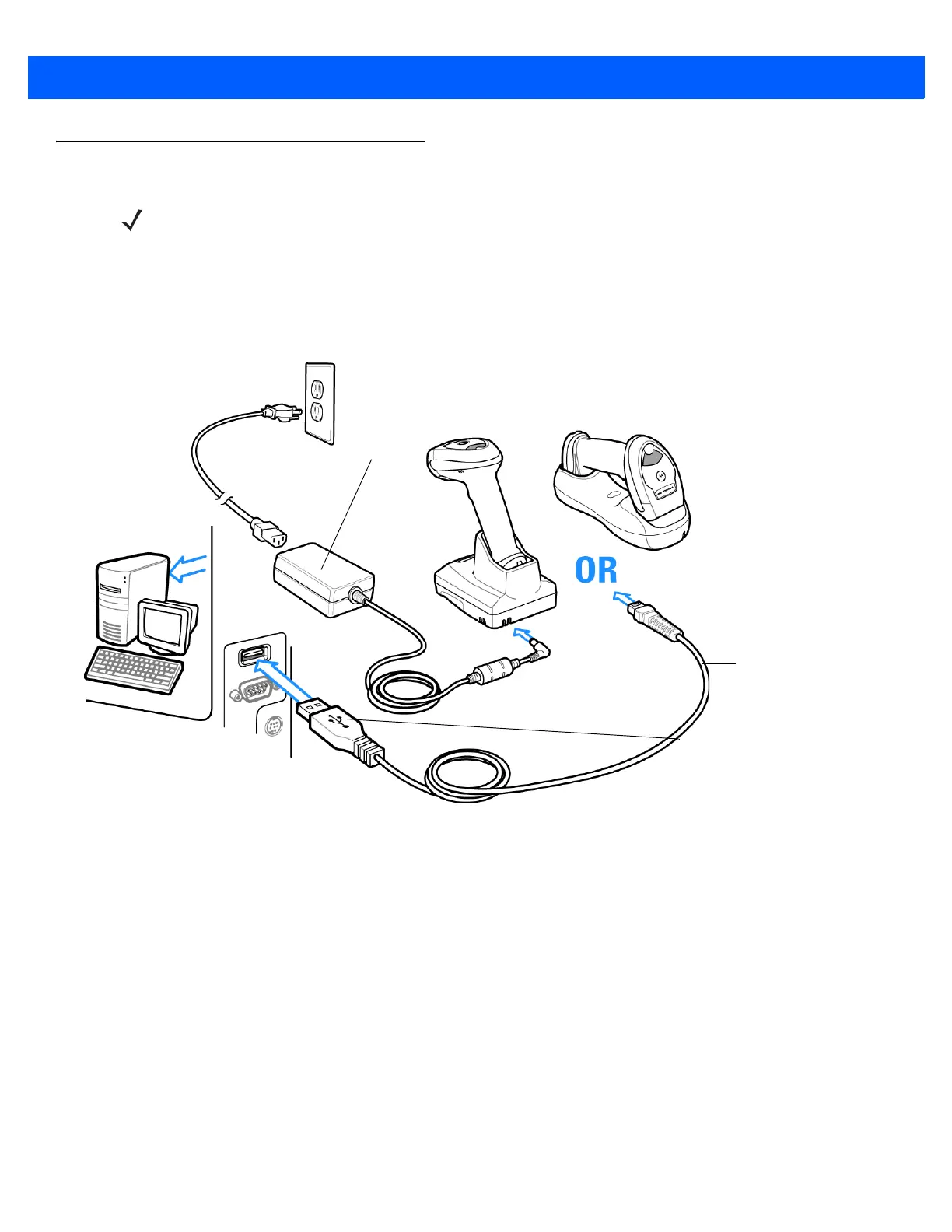

Figure 8-1 USB Connection
The linear imager scanner cradle connects with USB capable hosts including:
• Desktop PCs and Notebooks
• Apple™ iMac, G4, iBooks (North America only)
• IBM SurePOS terminals
• Sun, IBM, and other network computers that support more than one keyboard.
The following operating systems support the linear imager scanner cradle through USB:
• Windows 98, 2000, ME, XP
• MacOS 8.5 and above
• IBM 4690 OS.
The linear imager scanner cradle also interfaces with other USB hosts which support USB Human Interface
Devices (HID).
NOTE See Chapter 4, RADIO COMMUNICATIONS for information about linear imager scanner/cradle pairing
and wireless communication
The linear imager scanner must be connected to the cradle for the host parameter setting to take effect.
When the linear imager scanner is not connected to a cradle, and a host parameter bar code is scanned,
a long low/long high beep sequence sounds.
Interface Cable
USB Series A Connector
Power Supply

Motorola LI4278 LINEAR IMAGER Specifications

General

Scan Rate	547 scans per second
Decode Capability	1D barcodes
Scan Pattern	Single line
Light Source	LED
IP Rating	IP42
Scanner Type	Linear Imager
Battery	Rechargeable Li-ion battery
Drop Specification	1.8 m (6 ft) drops to concrete
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Technology	Linear Imager
Radio Range	Up to 100 m (330 ft) in open air
Interface	USB, RS232, Keyboard Wedge
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
Weight	7.9 oz./224 g
Dimensions	9.8 cm H x 7 cm W x 18.6 cm L (3.8 in H x 2.7 in W x 7.3 in L)
