Motorola LI4278 LINEAR IMAGER Product Reference Guide

GETTING STARTED 1 - 15
3. Ensure the desk/wall mount converter knob is in the position shown in Figure 1-11.

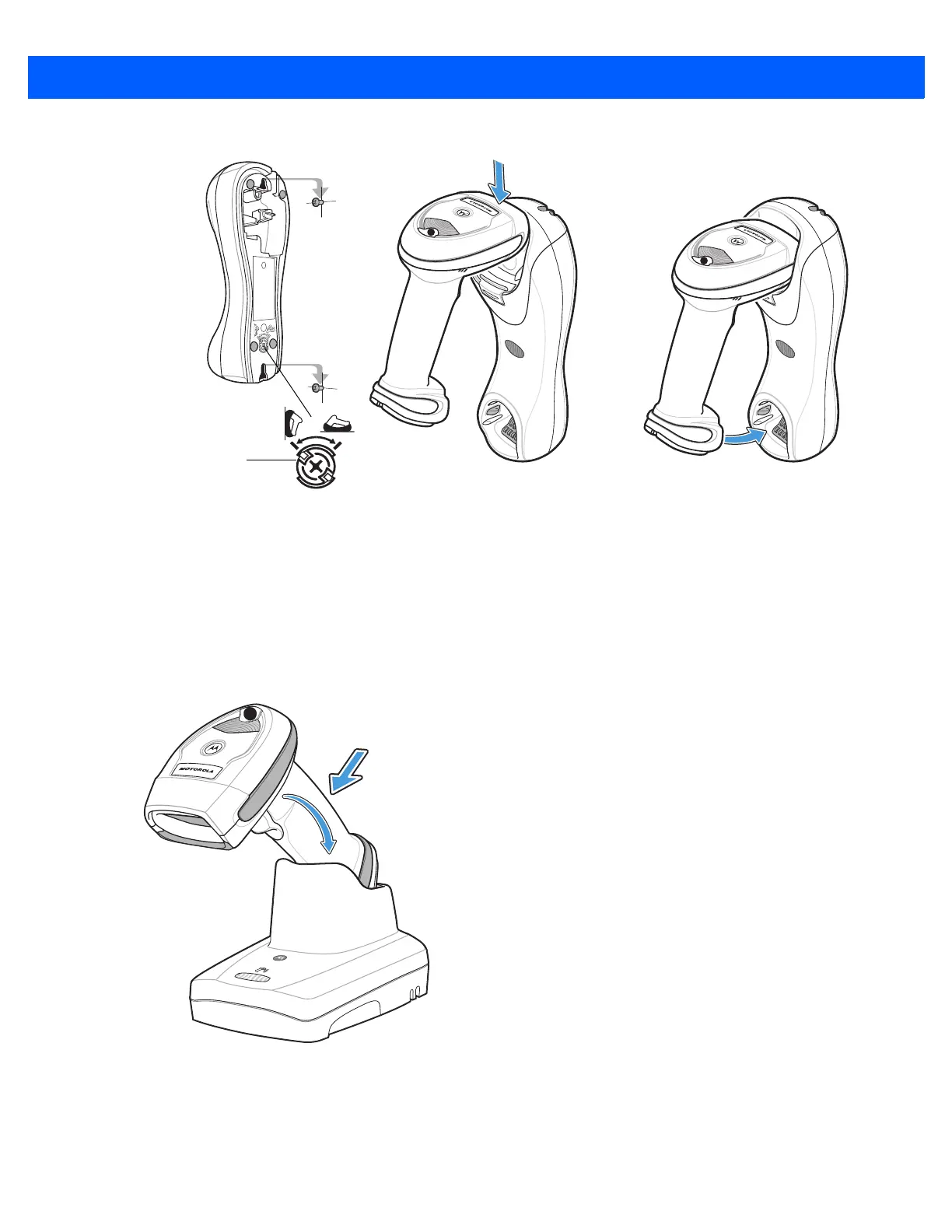

Figure 1-11 Vertical Mount - Inserting the Linear Imager Scanner in the Cradle
Inserting/Removing Linear Imager Scanner in the CR0078-P Cradle
To insert the scanner in the Presentation Cradle:
1. Insert the scanner by placing the bottom of the scanner, at a slight forward angle, into the CR0078-P
cradle.
2. Push the handle back and down until it clicks, engaging the contacts of the scanner and cradle.
Figure 1-12 Inserting the Linear Imager Scanner in the Presentation Cradle
To remove the scanner from the Presentation Cradle:
1. Remove the scanner by pushing the scanner slightly forward and up out of the CR0078-P cradle.
Desk/Wall
Mount
Converter Knob
Click
1
2

Motorola LI4278 LINEAR IMAGER Specifications

General

Scan Rate	547 scans per second
Decode Capability	1D barcodes
Scan Pattern	Single line
Light Source	LED
IP Rating	IP42
Scanner Type	Linear Imager
Battery	Rechargeable Li-ion battery
Drop Specification	1.8 m (6 ft) drops to concrete
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Technology	Linear Imager
Radio Range	Up to 100 m (330 ft) in open air
Interface	USB, RS232, Keyboard Wedge
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5% to 95% (non-condensing)
Weight	7.9 oz./224 g
Dimensions	9.8 cm H x 7 cm W x 18.6 cm L (3.8 in H x 2.7 in W x 7.3 in L)
