2 - 6 LI4278 Product Reference Guide

Scanning

To program the linear imager scanner, see the appropriate host chapter, Chapter 4, RADIO

COMMUNICATIONS and Chapter 11, SYMBOLOGIES. (In addition to the parameters included in the chapters

mentioned, user preference and miscellaneous linear imager scanner option parameters are also available in

this guide.)

Aiming

When scanning, the linear imager scanner projects a red illumination which allows positioning the bar code

within its field of view. See Decode Ranges on page 2-8 for the proper distance to achieve between the linear

imager scanner and a bar code.

Hand-Held Scanning

To scan:

1. Ensure all connections are secure (see appropriate host chapter).

2. Aim the linear imager scanner at the bar code.

3. Press the trigger.

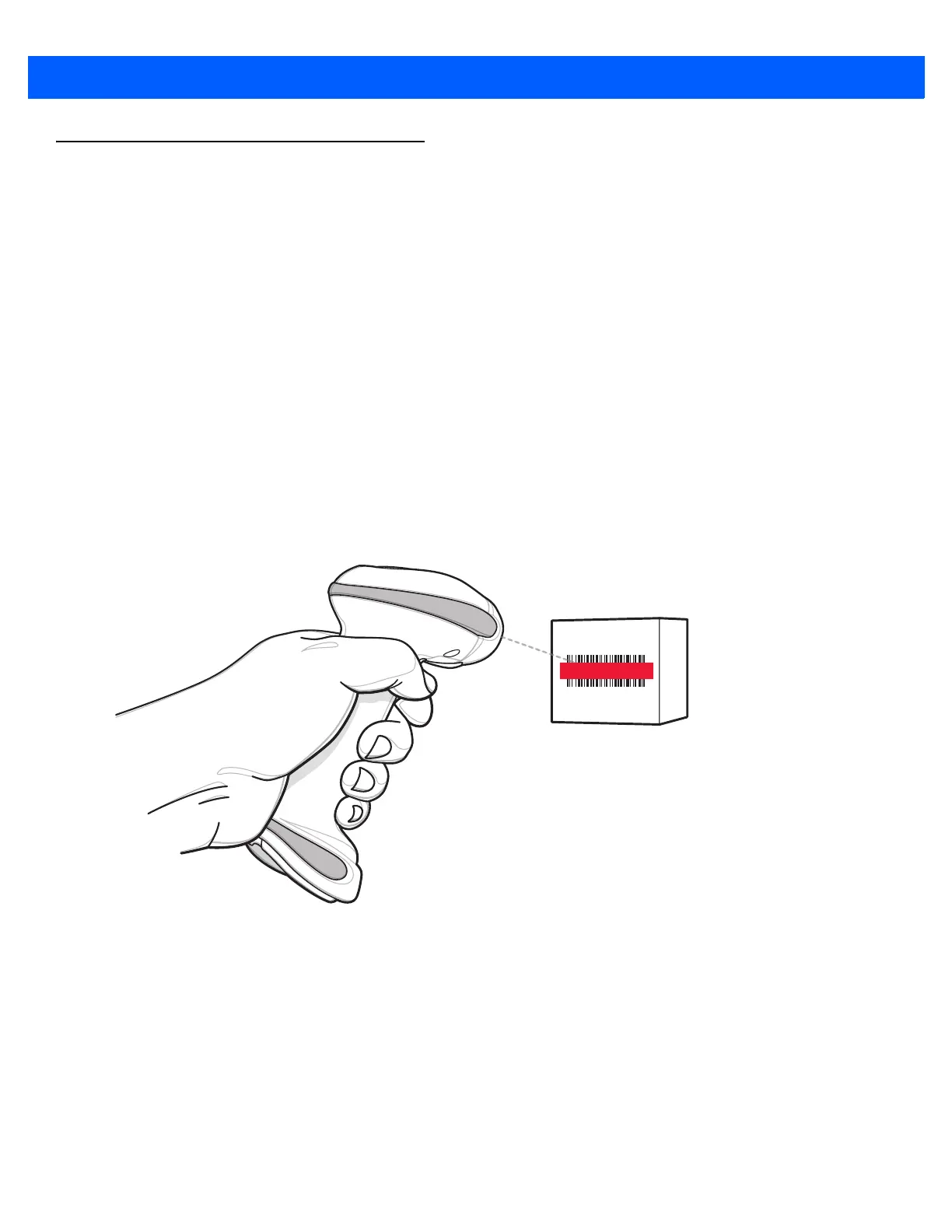

Figure 2-1

Scanning

4. Upon successful decode, the linear imager scanner beeps and the LED displays a single green flash. (For

more information about beeper and LED definitions, see Table 2-1 and Table 2-2.)
