7 - 12 LI4278 Product Reference Guide
Hardware Handshaking (continued)

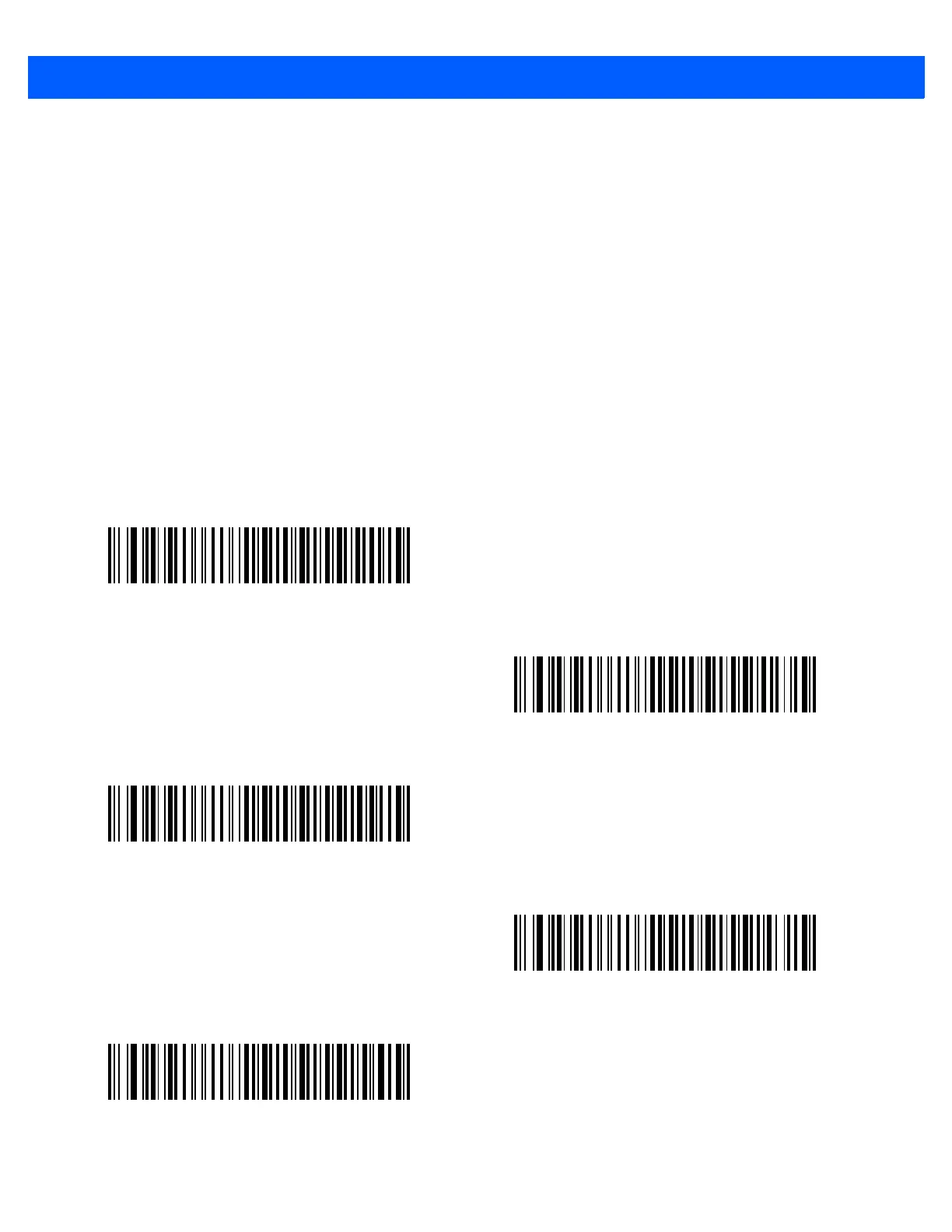

None: Scan the bar code below if no Hardware Handshaking is desired.
Standard RTS/CTS: Scan the bar code below to select Standard RTS/CTS Hardware Handshaking.
RTS/CTS Option 1: When RTS/CTS Option 1 is selected, the linear imager scanner asserts RTS before
transmitting and ignores the state of CTS. The linear imager scanner de-asserts RTS when the
transmission is complete.
RTS/CTS Option 2: When Option 2 is selected, RTS is always high or low (user-programmed logic
level). However, the linear imager scanner waits for CTS to be asserted before transmitting data. If CTS
is not asserted within Host Serial Response Time-out, the linear imager scanner issues an error
indication and discards the data.
RTS/CTS Option 3: When Option 3 is selected, the linear imager scanner asserts RTS prior to any data
transmission, regardless of the state of CTS. The linear imager scanner waits up to Host Serial
Response Time-out for CTS to be asserted. If CTS is not asserted during this time, the linear imager
scanner issues an error indication and discards the data. The linear imager scanner de-asserts RTS
when transmission is complete.
*None
Standard RTS/CTS
RTS/CTS Option 1
RTS/CTS Option 2
RTS/CTS Option 3
