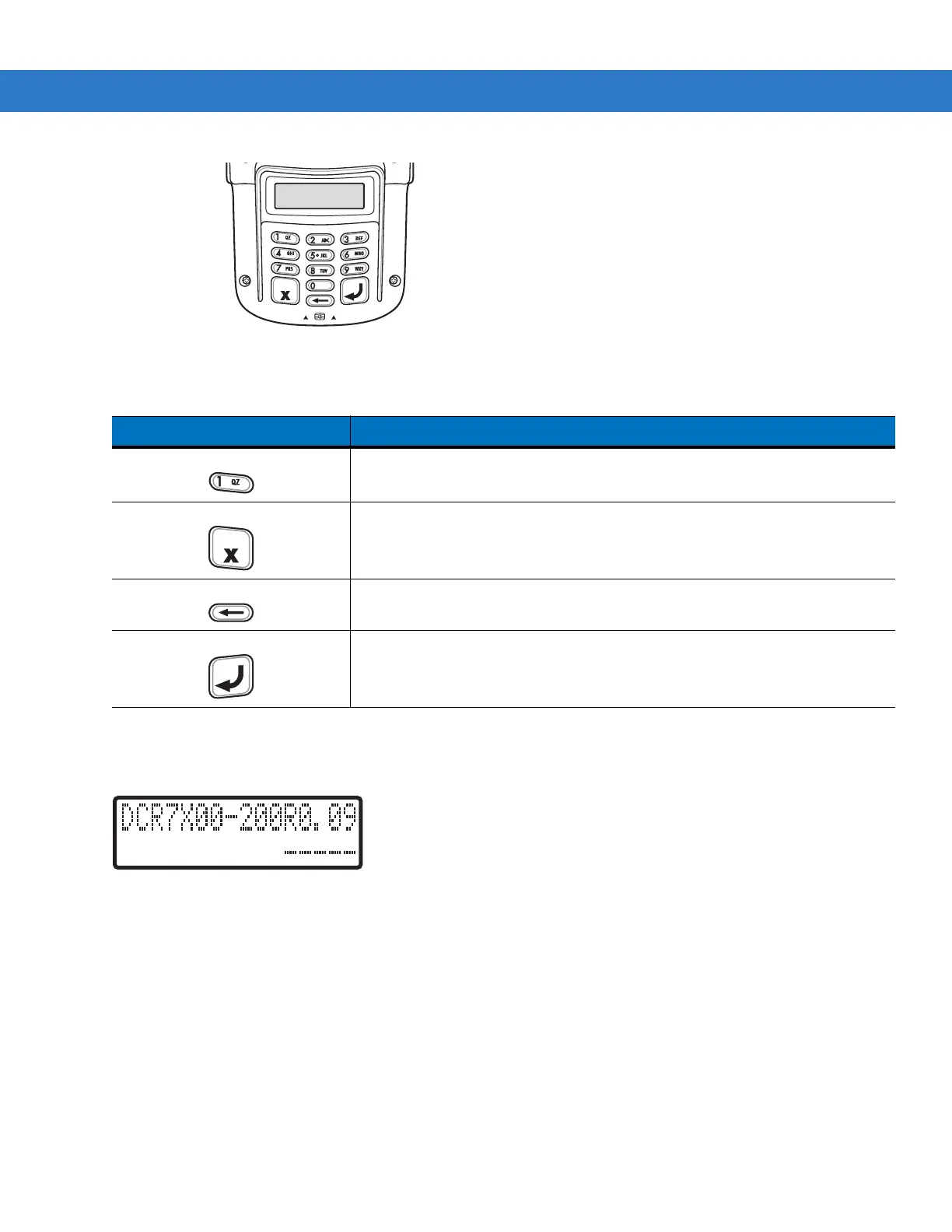

Figure 7-26
Keypad
Display Messages
After connecting the module to the MC70/MC75 and an application opens the COM port, the following displays:
.
Figure 7-27
Display
Line 1 indicates the model number and the firmware version. The firmware version displays after the model
number. In this example the firmware version is 0.09.
Line 2 indicates the keyload code. Each characters of the keyload code represents a different key type.
Table 7-6
Keypad Button Descriptions
Key Description
Numeric Used to enter PIN.
Cancel (Red) Cancels the current transaction.
Clear (Yellow) Clears the entered data.
Enter (Green) Submits the entered data.
