Accessories 7 - 27
Cables
This section describes how to set up and use the cables. The cables are available with a variety of connection
capabilities.
The following communication/charge cables are available:
• Serial (RS232) Charge cable (9-pin D female with power input receptacle)
• USB Client Charge cable (standard-A connector and a barrel receptacle for power)
• Auto charge cable
• DEX cable
• Modem inverter cable
• Charge only cable.
The following printer cables are available directly from Zebra:
• O’Neil Printer cable
• Zebra Printer cable.

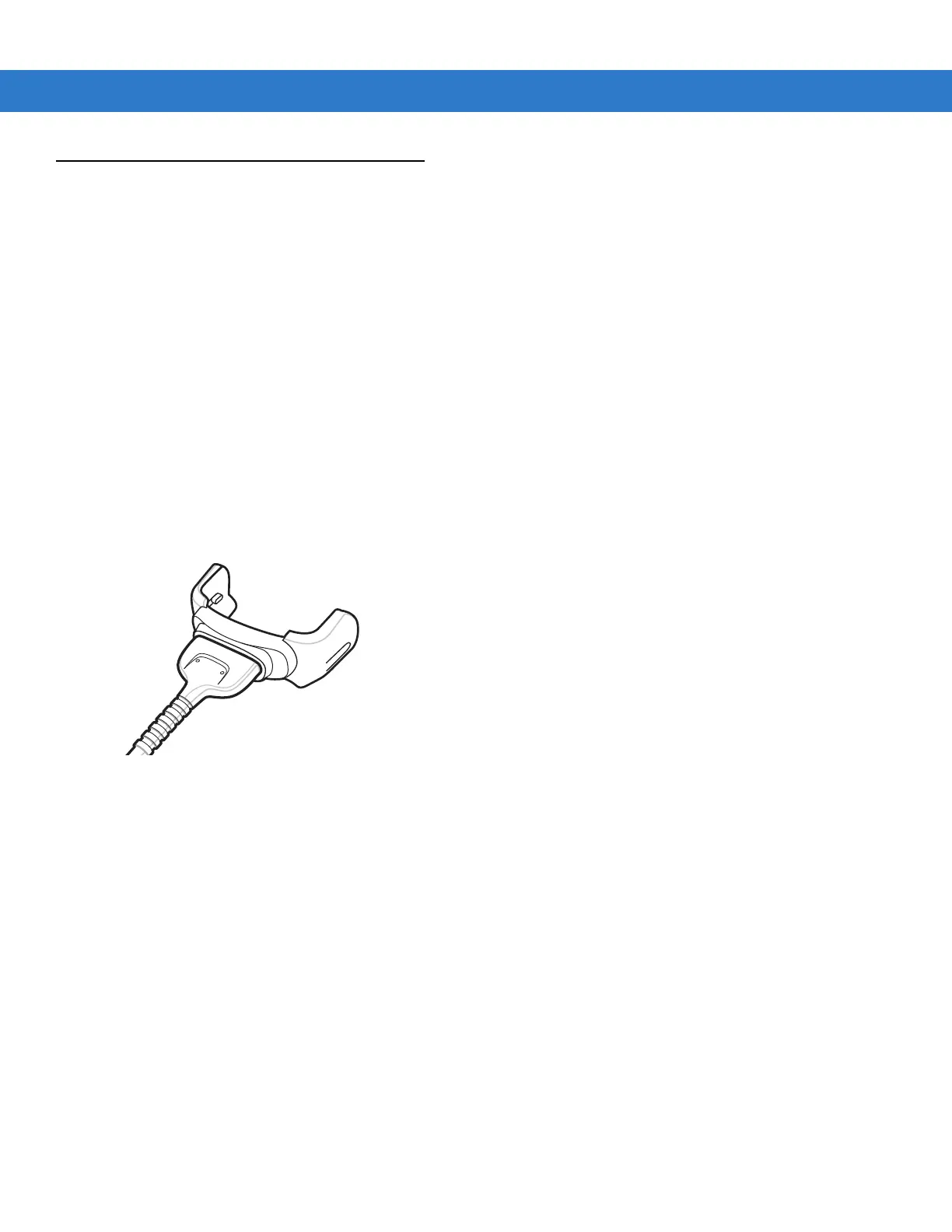

Figure 7-29 Cables
Communication/charge cables:
• Provide the MC75A with operating and charging power when used with the approved power supply.
• Synchronize information between the MC75A and a host computer. With customized or third party software,
it can also synchronize the MC75A with corporate databases.
• Provide serial connection through the serial pass-through port for communication with a serial device, such
as a host computer. For communication setup procedures, refer to the MC75A Integrator Guide.
• Provide USB connection through the USB pass-through port for communication with a USB device, such as
a host computer. For communication setup procedures, refer to the MC75A Integrator Guide.
Dedicated printer cables provide communication with a printer.
Battery Charging and Operating Power
The communication/charge cables can charge the MC75A battery and supply operating power.
To charge the MC75A battery:
1. Connect the communication/charge cable power input connector to the approved power source.
