7. Snap the scan window cover into place on the tower, over the scan window.

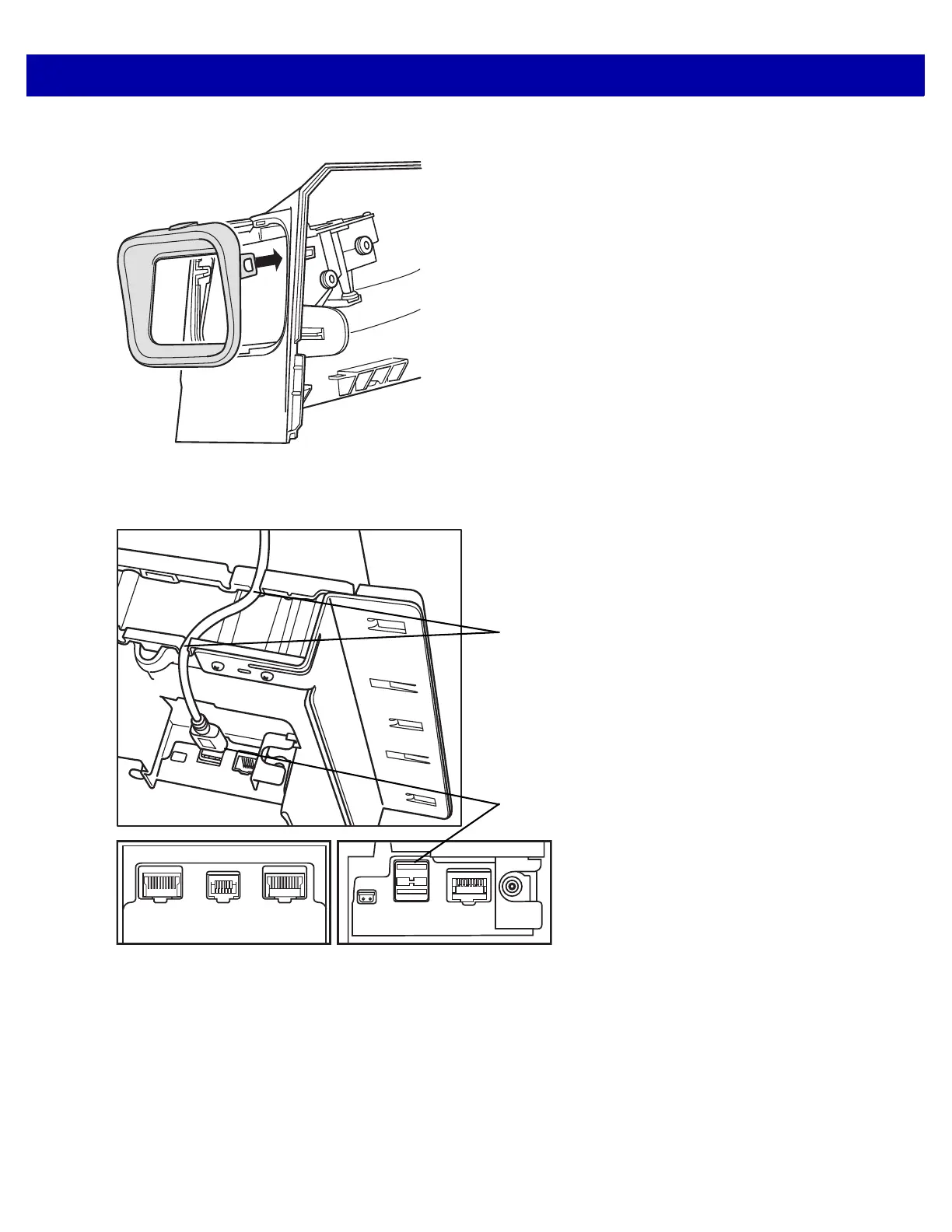

Figure 8-6 Adding the Scan Window Cover
8. Connect the USB cable to the top USB port (recommended) on the MP6000. Route the cable into the side
cable slots as shown.
Figure 8-7 Connecting the Cable
Top USB Port
Side Cable Slots
