Motorola ST7000 - One-Touch Buttons

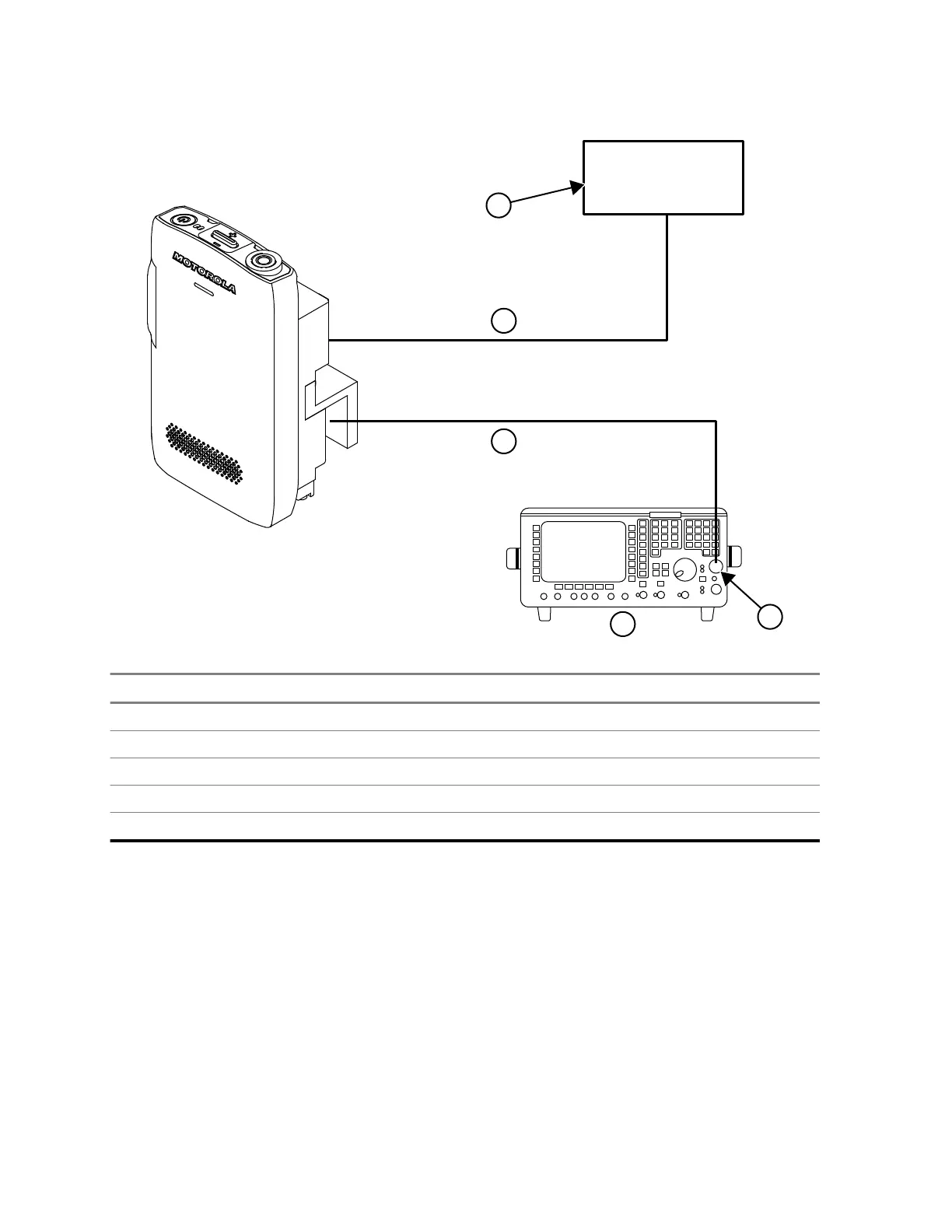

Figure 2: Typical Test Setup
1
4
2
3
5
No. Description
1 3.8 V Power Supply
2 Battery Eliminator connected to Power Supply
3 RF Cable
4 N-type RF Connector
5 IFR 39xx/IFR 2968
4.1.1
Assembly Procedures
Procedure:
1 Insert the bottom area of the battery eliminator into the compartment.
