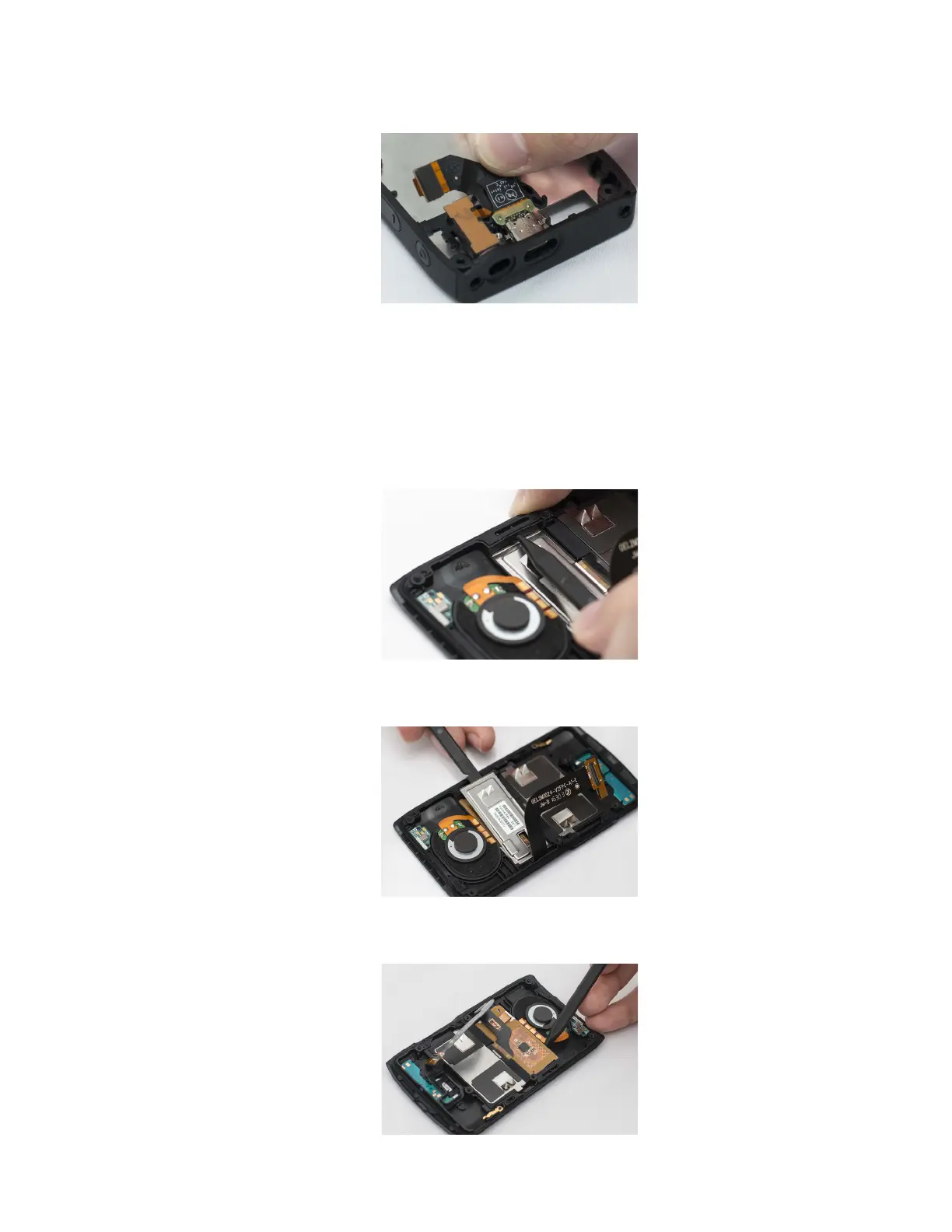

Figure 25: Removing the USB-C/Audio Jack Flex Assembly
5.7.2.8
Removing the OLED Display Module Assembly
Procedure:
1 Push the plastic retention feature beyond the edge of the metal retainer to detach the OLED
capacitive touch metal retainer.
Figure 26: Detaching the Capacitive Touch Metal Retainer
2 Lift the capacitive touch metal retainer to remove it.
Figure 27: Removing the Capacitive Touch Metal Retainer
3 Lift the OLED capacitive touch proximity module assembly to detach it.
Figure 28: Detaching the OLED Capacitive Touch Proximity Module Assembly
MN002952A01-AH
Chapter 5: Maintenance
79
