5.7.2.1
Removing the Antenna
Procedure:
Unscrew the antenna counterclockwise until it is detached from the radio. The antenna must be
removed each time the back housing is removed.

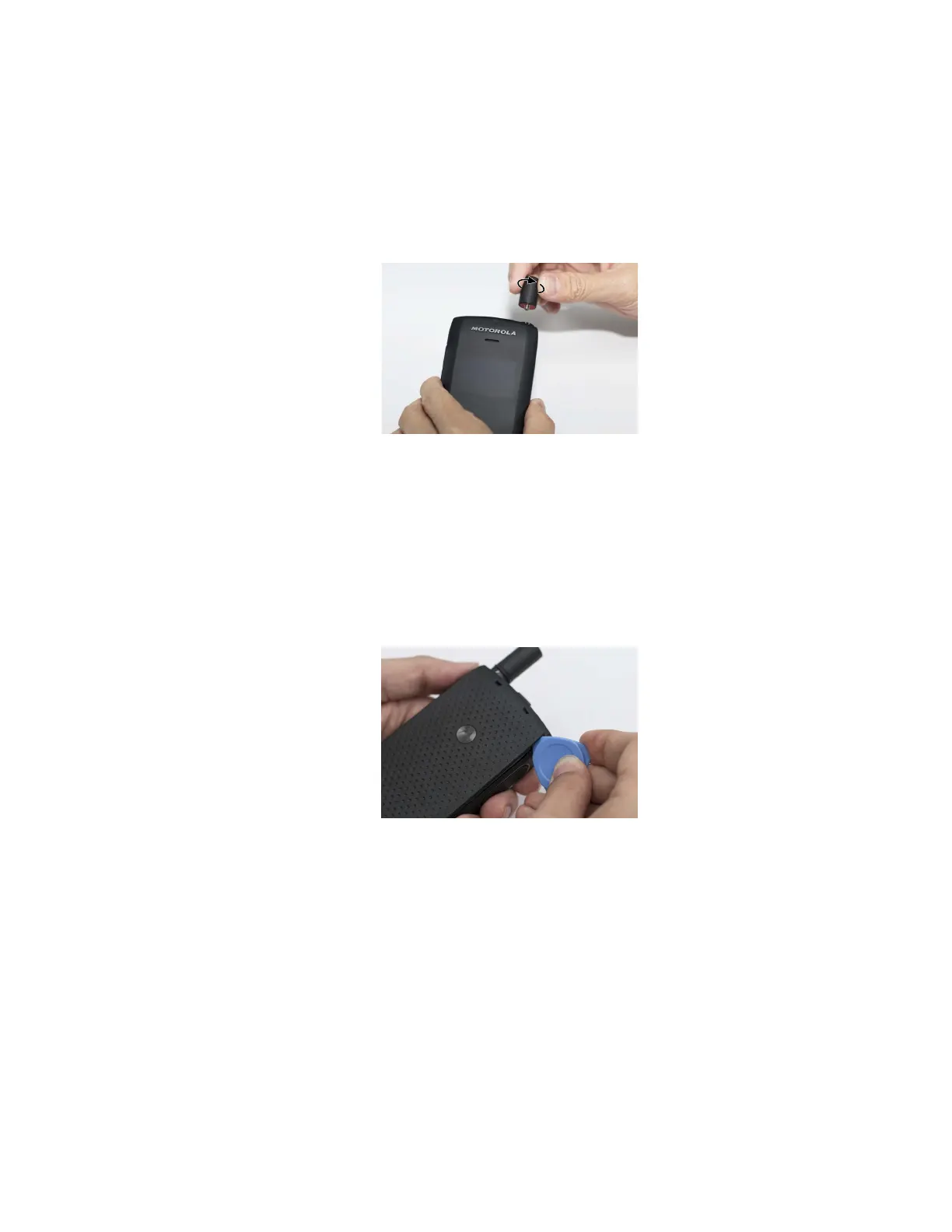

Figure 13: Removing the Antenna
5.7.2.2
Removing the Back Cover
Prerequisites: Prepare the Battery Cover Opener (part number HW001104A01).
Procedure:
1 Place the Battery Cover Opener at the top right and left corners of the battery cover. Twist the
Battery Cover Opener to pry open the battery cover.
Figure 14: Removing the Battery Cover
2 Lift the battery cover.
5.7.2.3
Removing the Battery
Procedure:
Push the battery release button upward to release the battery from the radio.
MN002952A01-AH
Chapter 5: Maintenance
75
