AirWorks AWK-1137C Introduction
1-3
ATTENTION
•
The AWK-1137C is NOT a portable mobile d
evice and should be located at least 20 cm away from the human
body.
•
The AWK-1137C is NOT designed for the general public. A well-trained technician should be enlisted to
ensure safe deployment of AWK-1137C units, and to establish a wireless network.
Patent http://www.moxa.com/doc/operations/Moxa_Patent_Marking.pdf

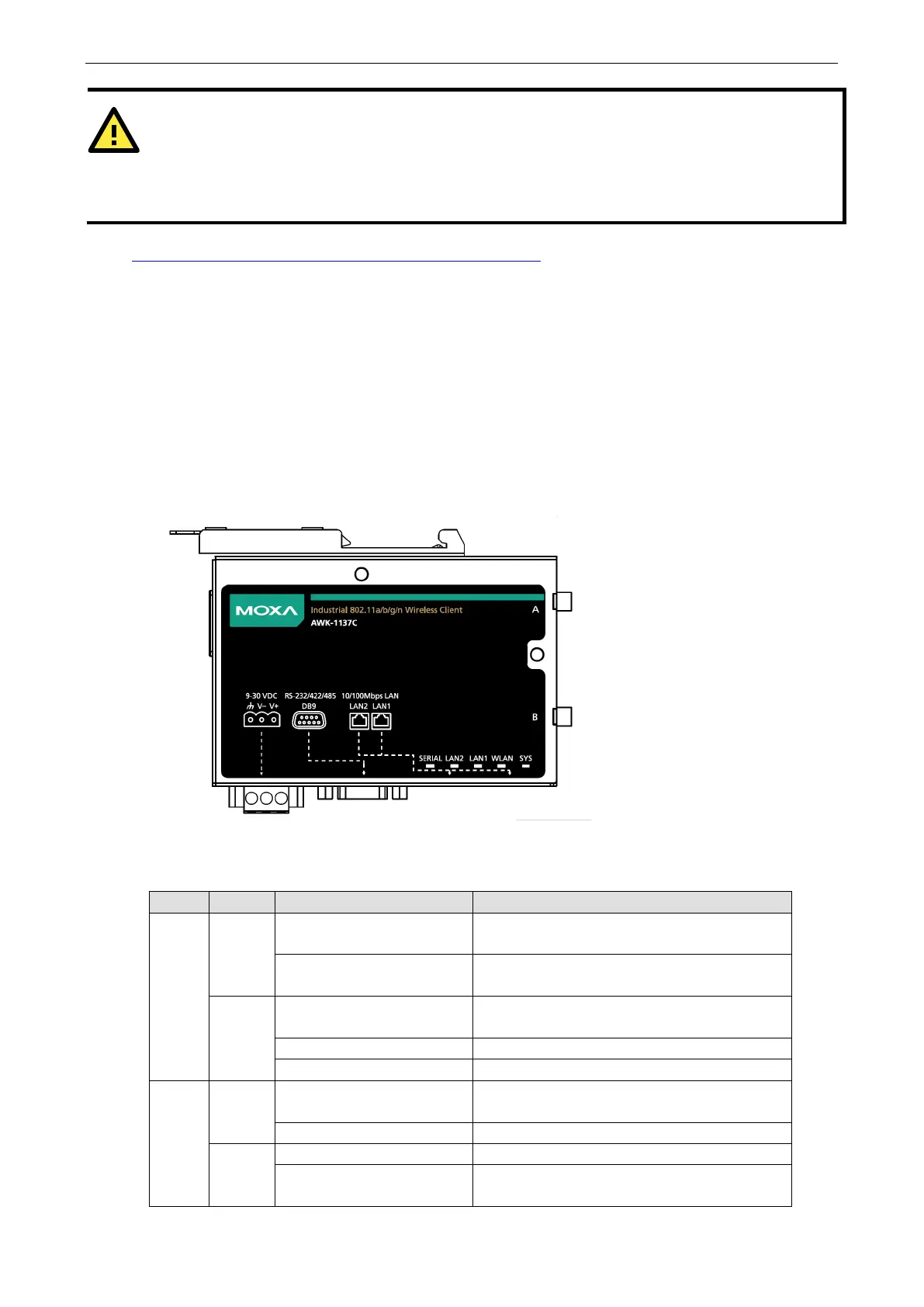

Functional Design
LED Indicators
The LEDs located both on the front and side panel of the AWK-1137C provide a quick and easy means of
determining the current operational status and wireless settings.
The SYS LED indicates system failures and user-configured events. If the AWK-1137C cannot retrieve the IP
address from a DHCP server, the SYS LED will blink at one-second intervals.
The following table summarizes how to read the device’s wireless settings from the LED displays. More
information is available in Chapter 3 in the “Basic WLAN Setup” section.
LED Color State Description
SYS Green On System start up complete and the system is in
operation
Blinking +
Beeps (at 1-sec intervals)
Device has been located by the Wireless Search
Utility
Red On System is booting or a system booting error has
occurred
Blinking (at 0.5-sec intervals) IP address conflict
Blinking (at 1-sec intervals)
Cannot obtain an IP address from DHCP server
WLAN Green On
(RSSI > 35)
WLAN interface has connected
Blinking Data communication via WLAN
Amber On WLAN interface has connected
Blinking Data communication via WLAN
