Moxa Technologies ioLogik E1212 User Manual

ioLogik E1200 Series Using the Web Console
3-13

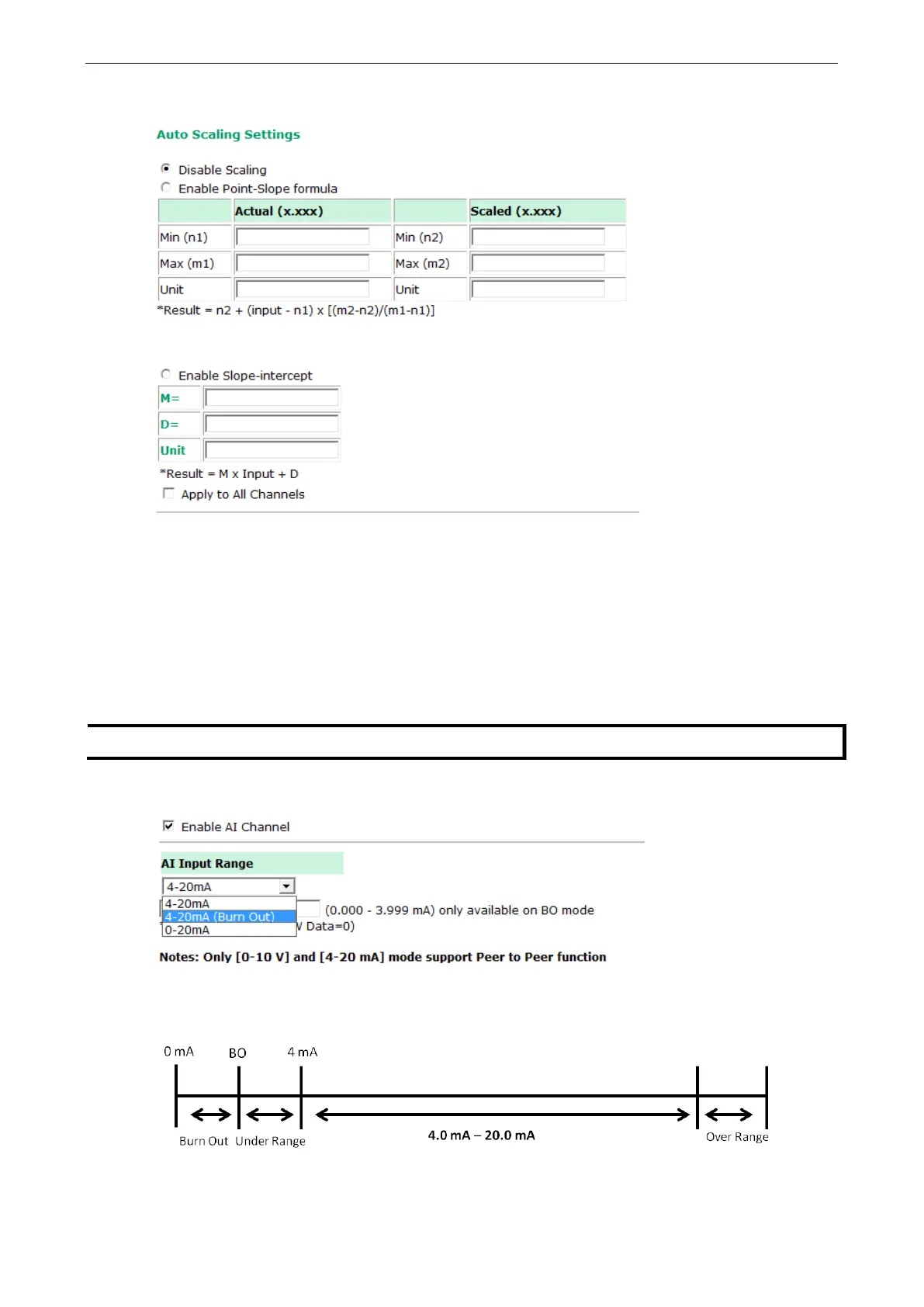

Auto Scaling and Slope-intercept functions of the AI value can be defined on this page.
AI Input Range
Set the AI input ranges for each mode, as follows:
1. Voltage Mode (V) (See Jumper Settings (DIO and AI) in Chapter 2 for more details)
There is only one default analog Voltage input range: [0-10V]
2. Current Mode (mA) (See Jumper Settings (DIO and AI) in Chapter 2 for more details)
There are three modes in the analog Current input range: [4-20 mA], [0-20 mA], [4-20 mA (Burn Out)]
NOTE
Only i
nput ranges [0-10 V] and [4-20 mA] support peer-to-peer networking.
AI Input: Current Mode
Burn Out mode indicates when the Current AI has burned out. For example, the 4–20 mA Burn Out mode is
defined in the following diagram:

Moxa Technologies ioLogik E1212 Specifications

General

Cable type	AWG
Module type	Digital
Channel type	-
Signal direction	Input/output
Power consumption	130 mA
Dimensions (WxDxH)	27.8 x 84 x 124 mm
Output current range	0 - 0.2 A
Ethernet LAN (RJ-45) ports	2
Supported network protocols	Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, HTTP
Isolation	3 kV
Channels quantity	16 channels
