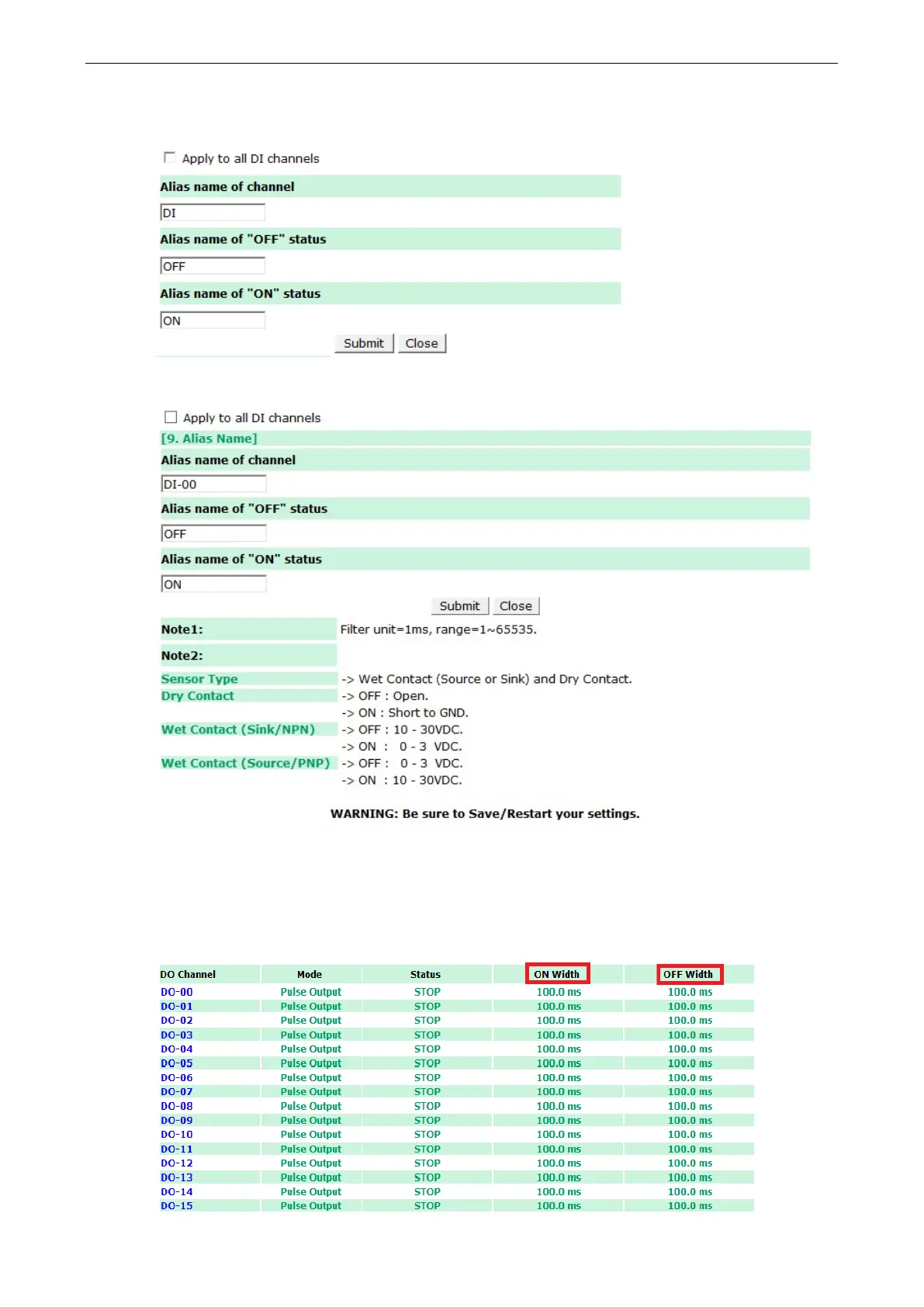

ioLogik E1200 Series Using the Web Console
3-10
The DI channel’s Alias Name and logic definition can also be configured on this page. You can apply the alias
name to all channels by selecting the Apply to all DI channels checkbox.
DI Channel Specification:
DO Channels
On the I/O Setting: DO (Digital Output) Channels page; you can configure each DO channel by clicking on
the channel.

Table of Contents

Other manuals for Moxa Technologies ioLogik E1212

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Moxa Technologies ioLogik E1212 and is the answer not in the manual?

Moxa Technologies ioLogik E1212 Specifications

General IconGeneral
Cable typeAWG
Module typeDigital
Channel type-
Signal directionInput/output
Power consumption130 mA
Dimensions (WxDxH)27.8 x 84 x 124 mm
Output current range0 - 0.2 A
Ethernet LAN (RJ-45) ports2
Supported network protocolsModbus/TCP, TCP/IP, UDP, DHCP, Bootp, HTTP
Isolation3 kV
Channels quantity16 channels
