Moxa Technologies ioLogik E1212 User Manual

ioLogik E1200 Series Initial Setup
2-11
Use the Cable Tie Base to Securely Route a Connected I/O
Cable
The products in this series have a cable tie base at the bottom of the unit for securely routing connected I/O
cables, thereby decreasing the risk that the cable or terminal will be damaged accidentally.

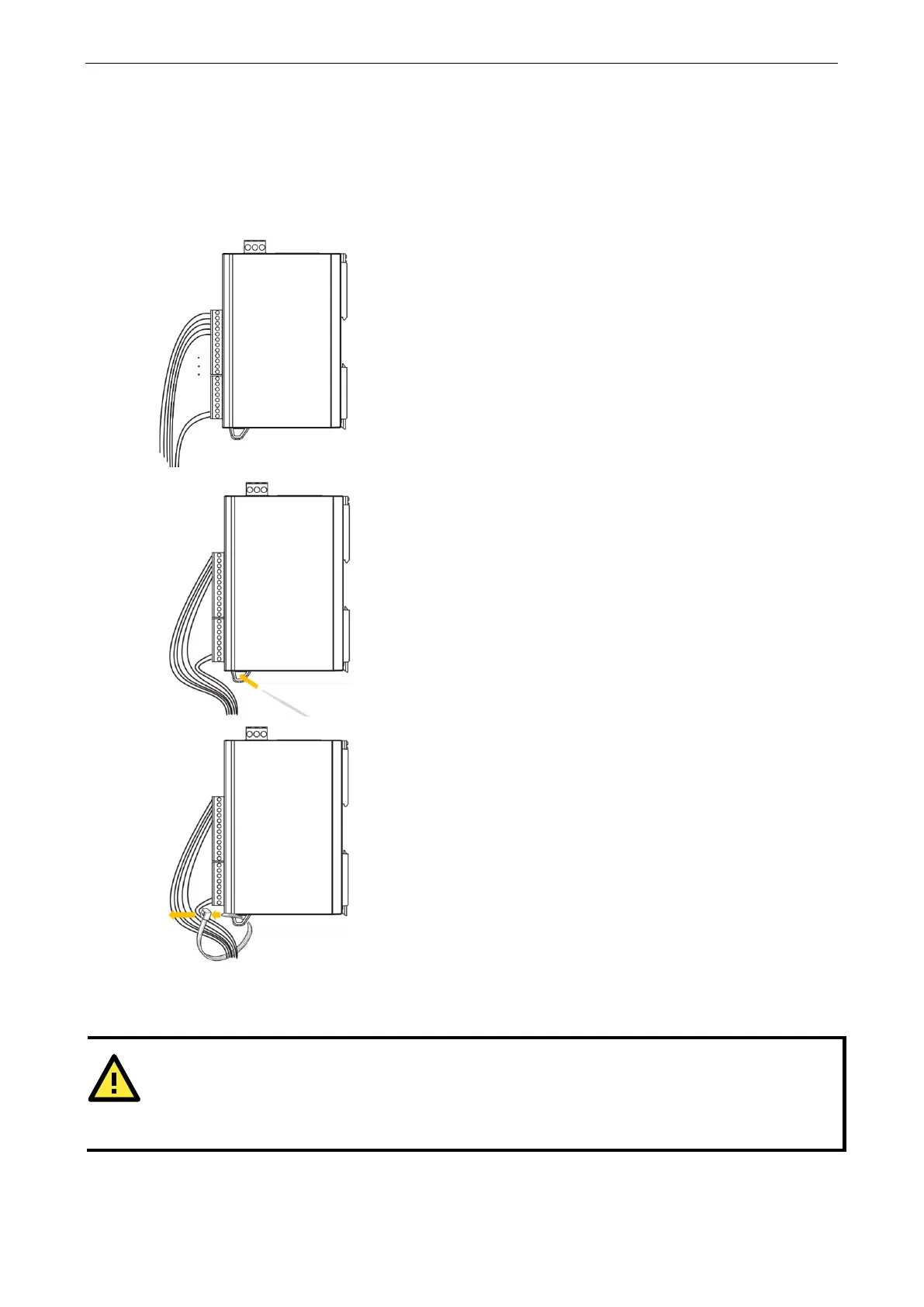

STEP 1.
Refer to the I/O wiring section to wire the I/O channel.
STEP 2.
Insert the cable tie strap through the cable tie base.
STEP 3. Fix the I/O channel cables to
the cable tie base
Powering Up the Unit
WARNING
Confirm
that the rated voltage of the connected DC Power Source is within 12 to 36 VDC to supply efficient
power to the unit
; if the power source does not supply voltage in this range, your unit could be damaged or
operate in an
unpredictable manner.

Moxa Technologies ioLogik E1212 Specifications

General

Cable type	AWG
Module type	Digital
Channel type	-
Signal direction	Input/output
Power consumption	130 mA
Dimensions (WxDxH)	27.8 x 84 x 124 mm
Output current range	0 - 0.2 A
Ethernet LAN (RJ-45) ports	2
Supported network protocols	Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, HTTP
Isolation	3 kV
Channels quantity	16 channels
