Moxa Technologies ioLogik E1212 User Manual

ioLogik E1200 Series Using the Web Console
3-12

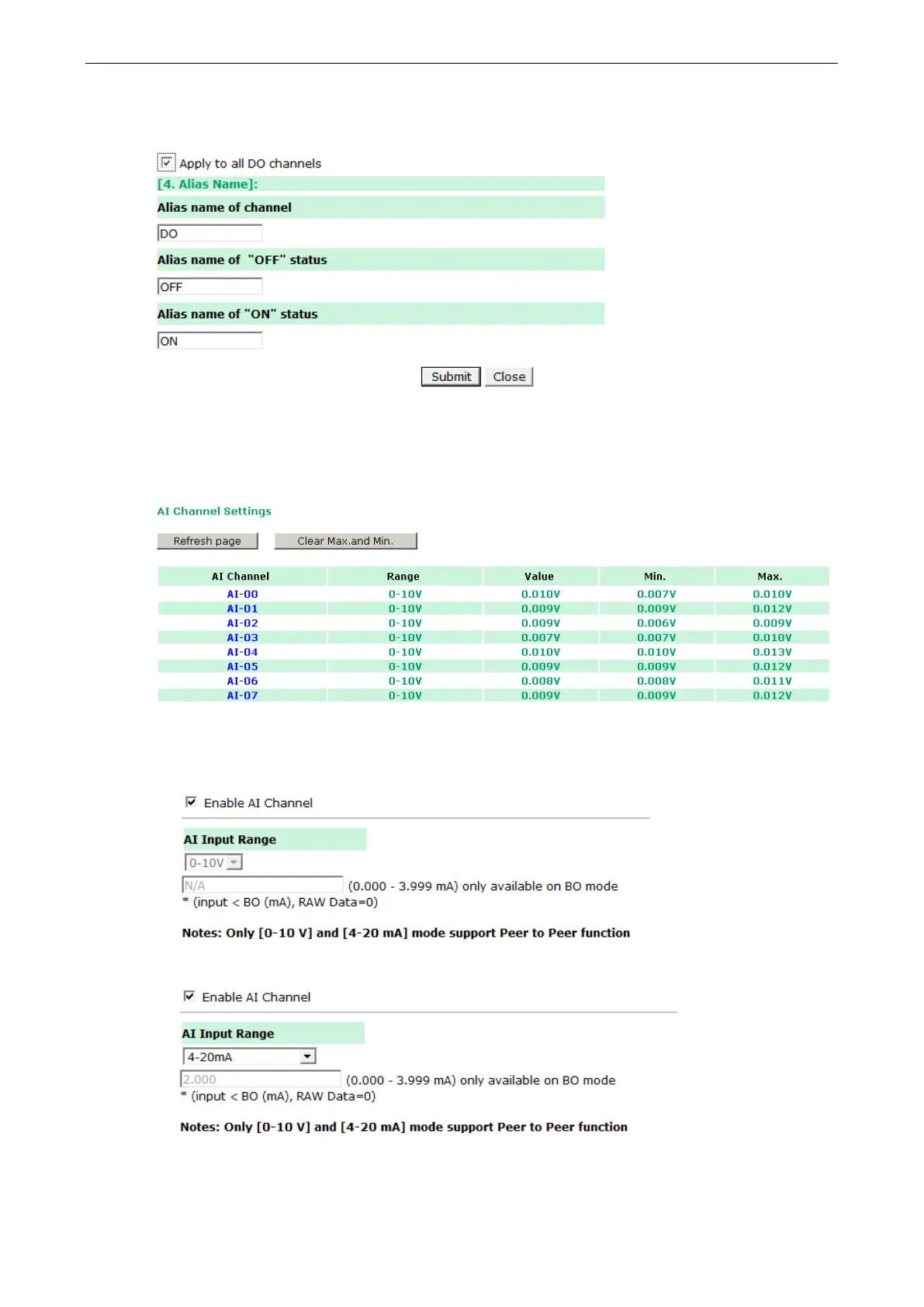

The DO channel’s Alias Name and logic definition can also be configured on this page. You can apply the alias
name to all channels by clicking on the Apply to all DO channels box.
AI Channels
The current status of each AI (analog input) channel can be viewed on the AI Channel Settings page.
Click on a specific AI channel to enable or disable it by selecting the Enable AI Channel field. There are two
modes available for the AI channels:
1. Voltage Mode (See the Jumper Settings (DIO and AI) in Chapter 2 for more details)
2. Current Mode (See the Jumper Settings (DIO and AI) in Chapter 2 for more details)

Moxa Technologies ioLogik E1212 Specifications

General

Cable type	AWG
Module type	Digital
Channel type	-
Signal direction	Input/output
Power consumption	130 mA
Dimensions (WxDxH)	27.8 x 84 x 124 mm
Output current range	0 - 0.2 A
Ethernet LAN (RJ-45) ports	2
Supported network protocols	Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, HTTP
Isolation	3 kV
Channels quantity	16 channels
