Moxa Technologies ioLogik E1212 User Manual

ioLogik E1200 Series Using the Web Console
3-17

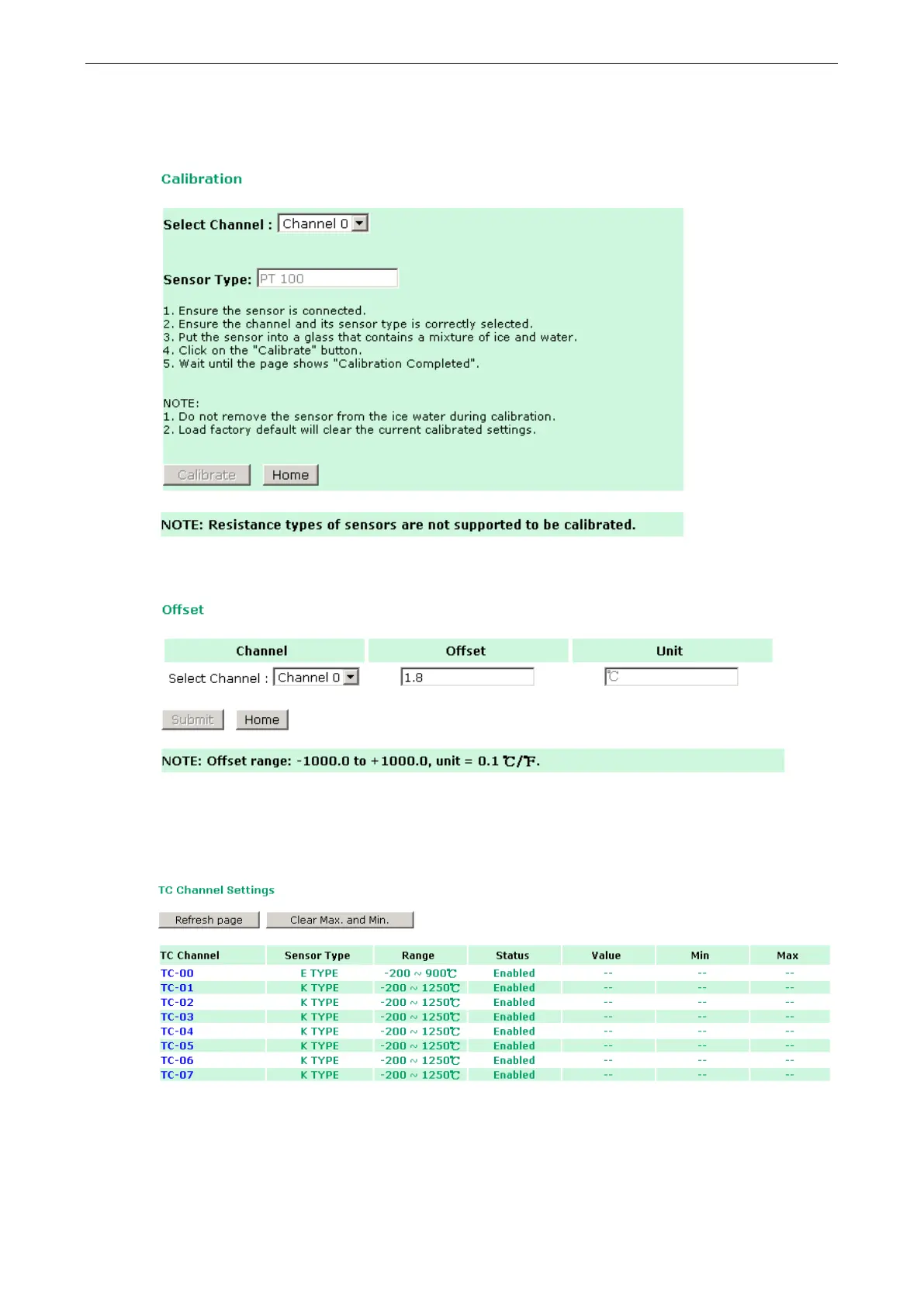

The ioLogik E1200 allows you to calibrate the temperature sensors. In each channel configuration section,
follow the instructions and click the Calibrate button to start the RTD sensor calibration. Each calibration
requires around 30 seconds per channel.
The ioLogik E1200 allows you to manually adjust the current temperature reading. In each channel
configuration section, select the channel, apply the offset value, and click the Submit button.
TC Channels
The current status of each TC (Thermocouple) channel can be viewed on the TC Channel page.

Moxa Technologies ioLogik E1212 Specifications

General

Cable type	AWG
Module type	Digital
Channel type	-
Signal direction	Input/output
Power consumption	130 mA
Dimensions (WxDxH)	27.8 x 84 x 124 mm
Output current range	0 - 0.2 A
Ethernet LAN (RJ-45) ports	2
Supported network protocols	Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, HTTP
Isolation	3 kV
Channels quantity	16 channels
