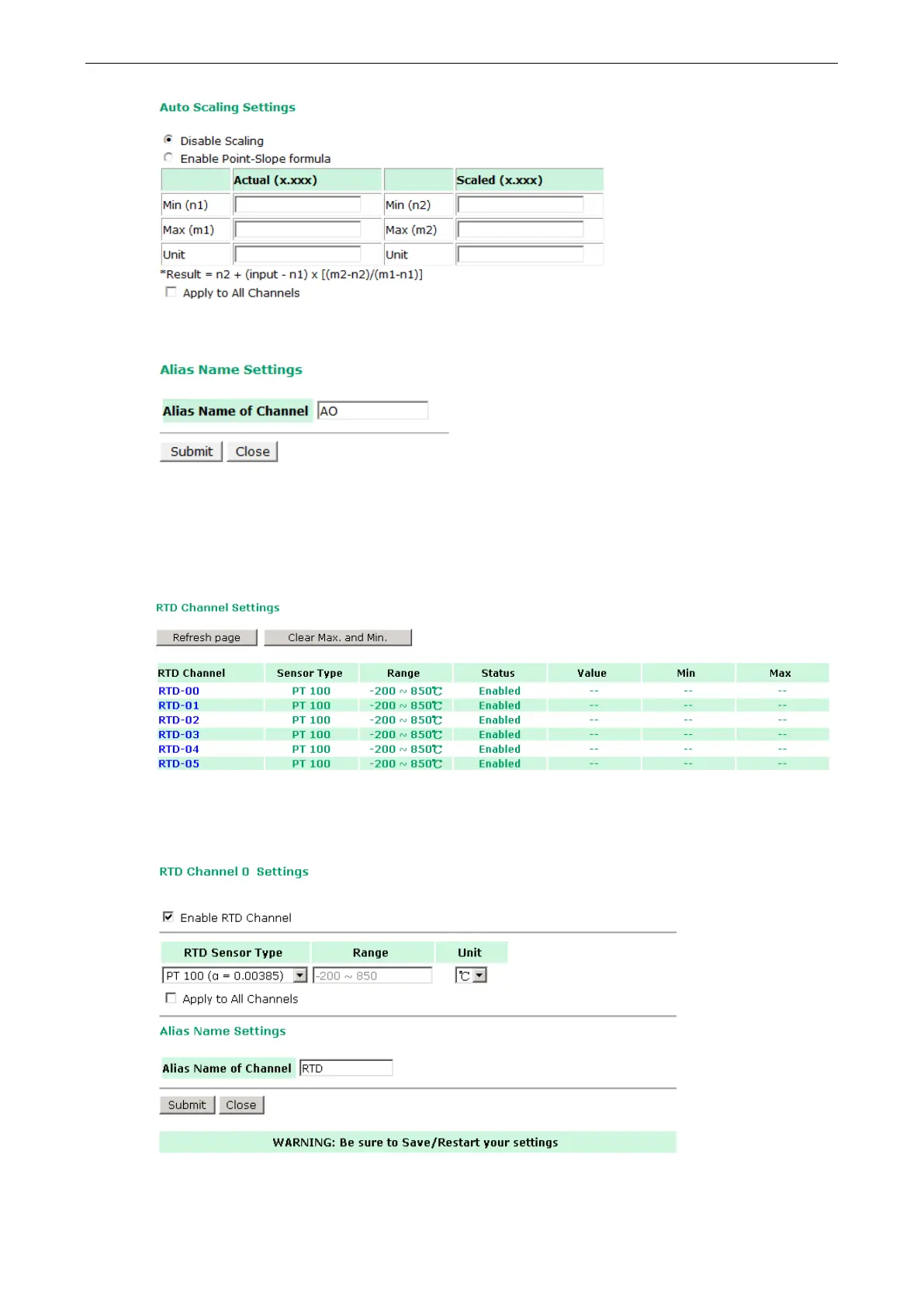

ioLogik E1200 Series Using the Web Console
3-16
The AO channel’s Alias Name can also be configured on this page.
RTD Channels
The current status of each RTD (Resistance Temperature Detector) channel can be viewed on the RTD
Channel page.
Click on a specific channel to access the RTD channel settings.
Select the Enable RTD Channel checkbox and then select the sensor type from the dropdown menu that
meets the physical attachment to the ioLogik E1200.
