NPort IA5150A/IA5250A Series Configuring NPort Administrator
6-4
Configuration

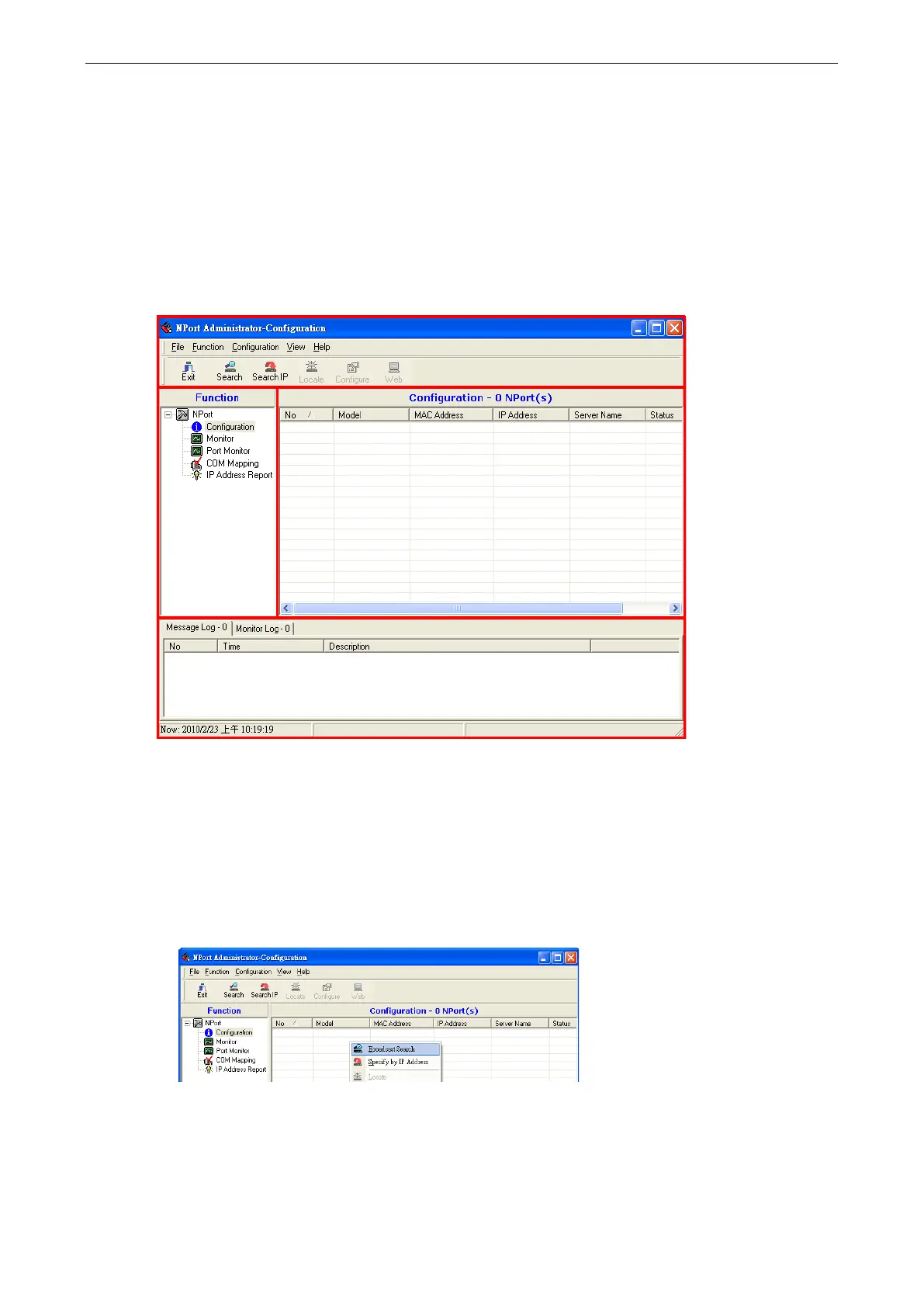

The Administrator-Configuration window is divided into four parts.
• The top section contains the function list and online help area. (Windows NT does not support this .chm file
format.)
• The five Administrator function groups are listed in the left section.
• A list of NPort IA5150A/IA5250A serial device servers, each of which can be selected to process user
requirements, is displayed in the right section.
• The activity Log, which displays messages that record the user’s processing history, is shown in the bottom
section.
Broadcast Search
The Broadcast Search function is used to locate all NPort IA5150A/IA5250As that are connected to the same
LAN as your computer. Since the Broadcast Search function searches by MAC address and not IP address, all
NPort IA5150A/IA5250As connected to the LAN will be located, regardless of whether or not they are part of the
same subnet as the host.
1. Position the cursor in the right middle section of the Administrator window and then click the right mouse
button.

Moxa Technologies NPort IA5150AI-T Specifications

General

Isolation	2 kV
Certification	CE, FCC
Serial interface type	RS-232/422/485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	2
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, HTTP, SMTP, SNTP, IGMP
Connectivity LEDs	Yes
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL-508

Weight and Dimensions

Weight	475 g
Dimensions (WxDxH)	36 x 105 x 140 mm
