Moxa Technologies NPort IA5150AI-T User Manual

NPort IA5150A/IA5250A Series Configuring NPort Administrator
6-13
The second way is with Off-line COM Installation, without first connecting the NPort IA5150A/IA5250A to
the network. Off-line COM Mapping can decrease the system integrator’s effort by solving different field
problems. Via off-line installation, users can first process software installation for the host, and then install the
NPort IA5150A/IA5250A to different fields.
Use the following procedure to map COM ports:
1. On-line COM Mapping:
Connect NPort IA5150A/IA5250A to the network  Set NPort IA5150A/IA5250A to the proper IP address 
Map COMs to your host  Apply Change.
2. Off-line COM Mapping:
Map COMs to your host  Apply Change  Connect the NPort IA5150A/IA5250A to the network 
Configure NPort IA5150A/IA5250A’s IP address.

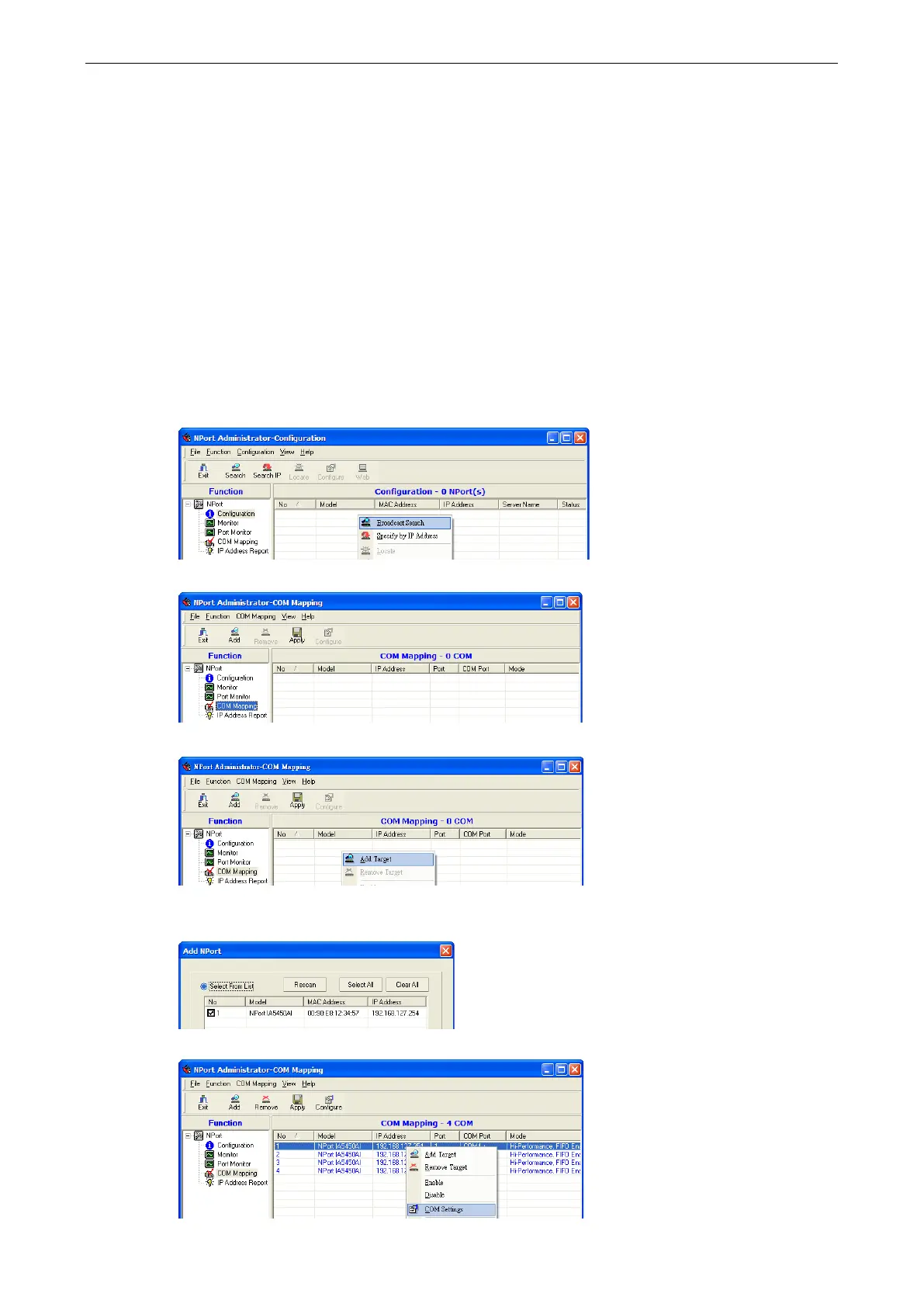

On-line COM Mapping
1. Broadcast Search for NPort IA5150A/IA5250As on the network.
2. Select the COM Mapping function group.
3. Add the target to which you would like to map COM ports.
4. The NPort IA5150A/IA5250A list that appears is the list generated by the previous Broadcast Search. Select
the NPort IA5150A/IA5250A to which you would like to map COM ports.
5. Select COM Settings to modify COM No., default setting, etc.

Moxa Technologies NPort IA5150AI-T Specifications

General

Isolation	2 kV
Certification	CE, FCC
Serial interface type	RS-232/422/485
Serial ports quantity	1
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	2
Supported network protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, HTTP, SMTP, SNTP, IGMP
Connectivity LEDs	Yes
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95 %
Input voltage	12 - 48 V
Safety	UL-508

Weight and Dimensions

Weight	475 g
Dimensions (WxDxH)	36 x 105 x 140 mm
