mru NOVA compact - Front- and Side View

USER MANUAL NOVAcompact
MRU GmbH, D-74172 Neckarsulm
11 / 50

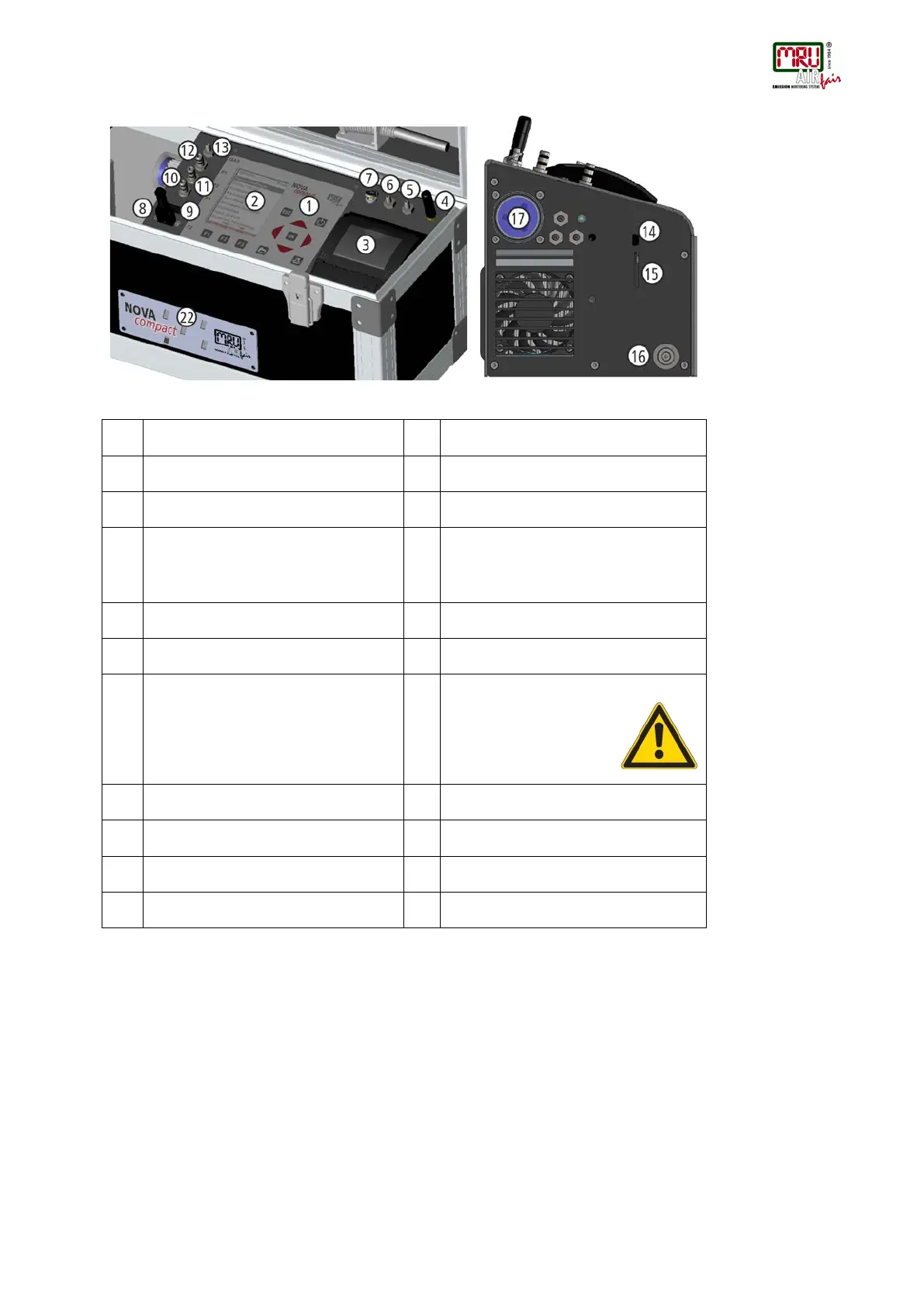

2.3. Front- and side view
1
Keypad
12
Connector pressue /draft +
2
Display
13
Connector sample gas
3
Printer
14
Mini USB port
4
Bluetooth aerial
15
SD-card reader (only by using a MRU-
SD-CARD we can assure the
compatibility of all analyzer functions)
5
Connector external filter unit
16
Connector power supply
6
Connector external filter unit
17
Filter
7
Connector AUX
22
Gas outlet.
During a measurement,
the blow-out openings
must not be covered.
8
Connector Temp 1 (T Air)
9
Connector Temp 2 (T Gas)
10
Connector pressure / draft -
11
Connector TRGI
