2 Description
2.1 Overview

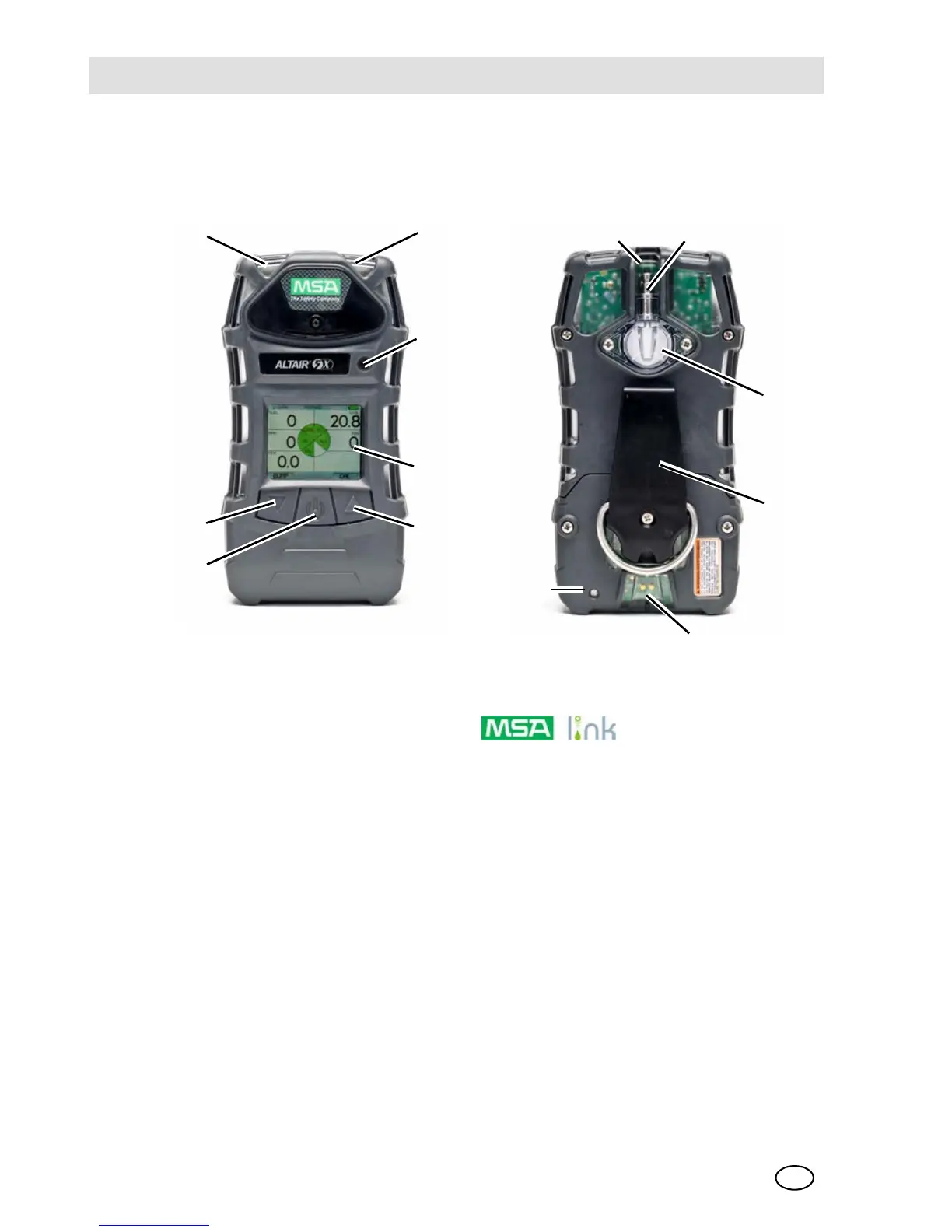

Fig. 1 Device view
The device monitors gases in ambient air and in the workplace.
The ALTAIR 5X is available with a maximum of four sensors, which can display
readings for five separate gases [one Dual Toxic Sensor provides both CO and H
2
S
sensing capabilities in a single sensor].
The ALTAIR 5X IR is available with a maximum of five sensors, which can display
readings for six separate gases [one Dual Toxic Sensor provides both CO and H
2
S
sensing capabilities in a single sensor].
1
LEDs [2 red "Alarm",
1 green "Safe"]
7 Communication
2 Horn 8 Pump inlet
3 Display 9 Filter
4  Button 10 Belt Clip [ALTAIR 5X only]
5 ON/OFF Button 11 Charging connections
6  Button 12 Charge Status LED
1
1
2
3
4
6
5
7 8
10
9
11
12
