ALTAIR 5X/ALTAIR 5X IR
18
GB
Colour Display

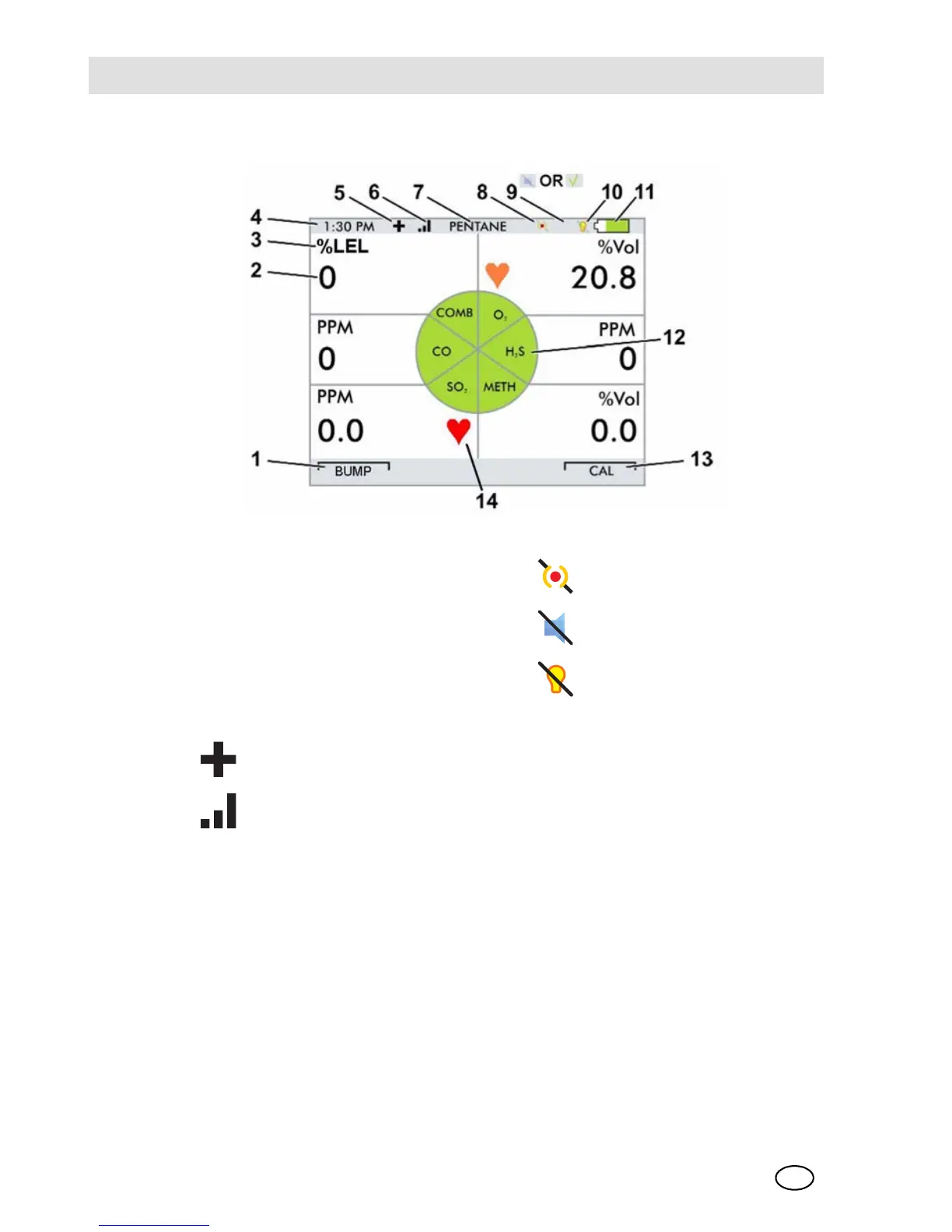

Fig. 3 Colour display
Battery Indicator
The battery condition icon continuously displays in the upper right-hand corner of
the colour display and in the lower right hand corner of the monochrome display.
A bar represents the charging level of the battery.
The nominal run-time of the device [COMB, O
2
, H
2
S, with pump and monochrome
display] at room temperature is 17 hours. Actual run-time will vary depending on
ambient temperature and alarm conditions.
1 "Soft Key" Indicator 8 Vibration alarm off
2 Gas reading 9 Horn OFF or successful Bump
Test/Calibration Indicator
3 Gas Concentration Units 10 LED off
4 Current Time 11 Battery Condition
5 Motion Alert symbol ON 12 Gas Type
6 Wireless ON 13 "Soft Key" Indicator
7 Combustible Gas type calibra-
tion
14 Sensor Life Indicator
