16. Fasten the Remote Sensor module to the bracket using
two 10-32 screws and lock washers.
• These screws pass through the bracket and into two
tapped holes in the module.
17. Push the Remote sensor Toxgard II Gas Monitor
through the slit gasket on the Duct Mount base plate
(FIGURE A-7).
18. Fasten the sensor module bracket to the base plate using
the 10-32 screws removed in step 15.
• Do not tighten completely.
19. Fasten the calibration tubing fitting into the center post of
the SensorGard (FIGURE A-7).

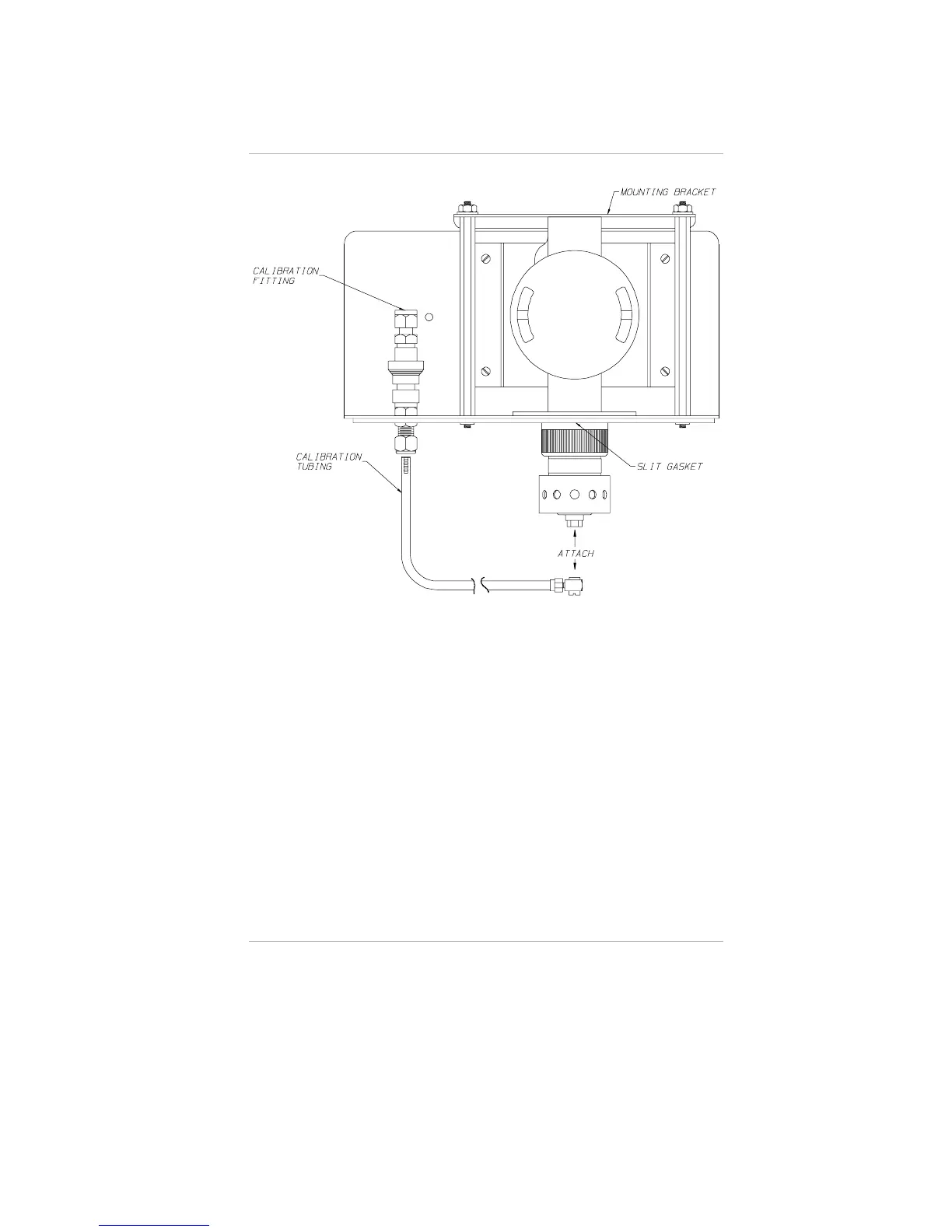

Figure A-7.
Duct Mount and Sensor
Appendix A, Optional Toxgard II Duct Mount Kit
A-7
