MTD 700 Series Shop Manual

Medium Frame 2 & 3 Stage Snow Throwers
118
8. Set the right housing on top of the left housing.
Install the eight screws.
9. Slide the hex key out of the housing. See Figure
10.37.
10. On 4-way units, install the lock nut and ground wire
(if equipped) on the left side of the housing.
11. Install the joystick assembly by following steps 1
through 11 of the disassembly section in reverse
order.
12. On 4-way units, install the Pitch Control Remote
Head.
13. Test run the snow thrower in a safe area before
returning it to service.

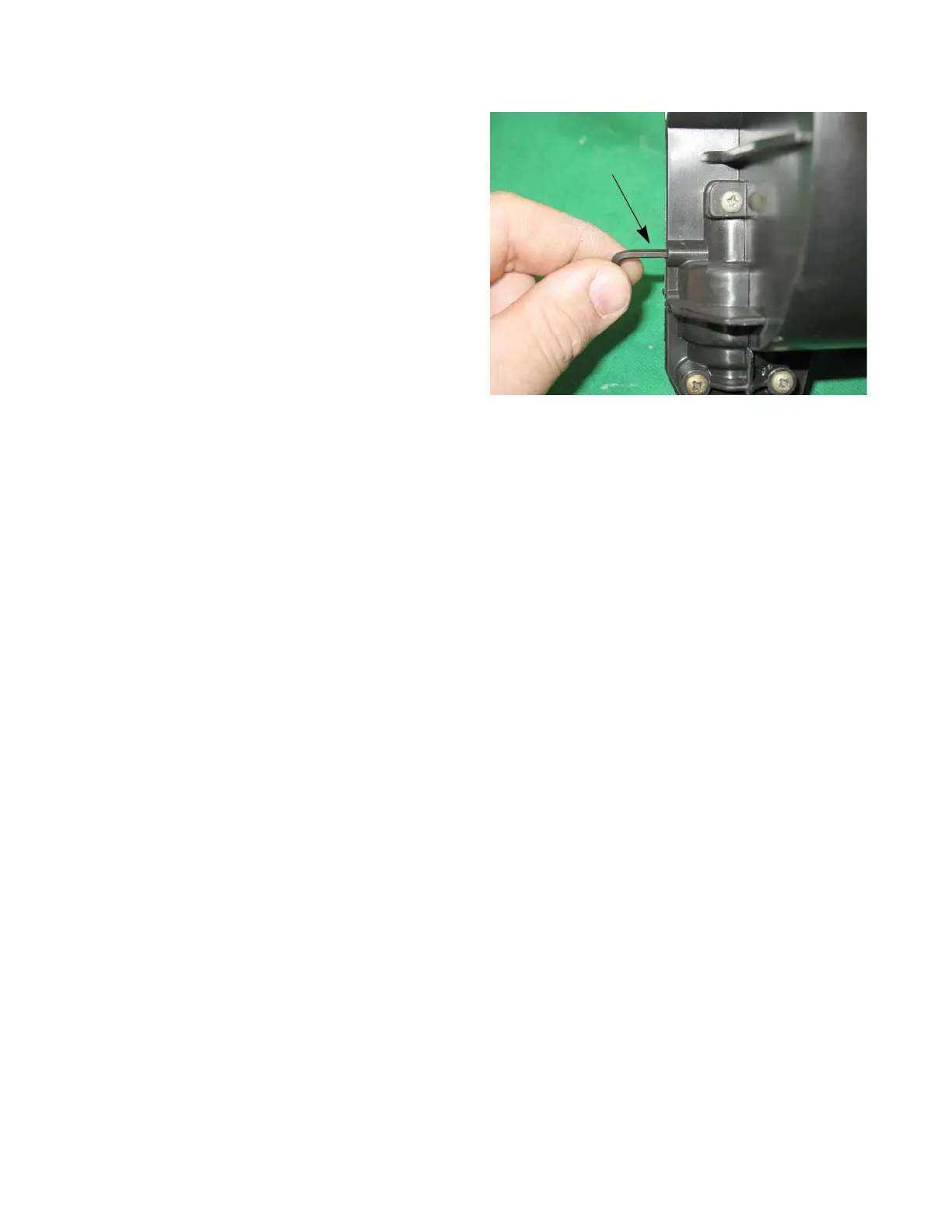

Figure 10.37
Hex key

MTD 700 Series Specifications

General

Turning Radius	18 inches
Engine Type	Single-cylinder
Drive Type	Rear-wheel drive
Tire Size (Front)	15x6.00-6
Tire Size (Rear)	20x10.00-8
