Temposonics
®
R-Series SSI
Operation Manual
Temposonics
®
R-Series SSI
Operation Manual

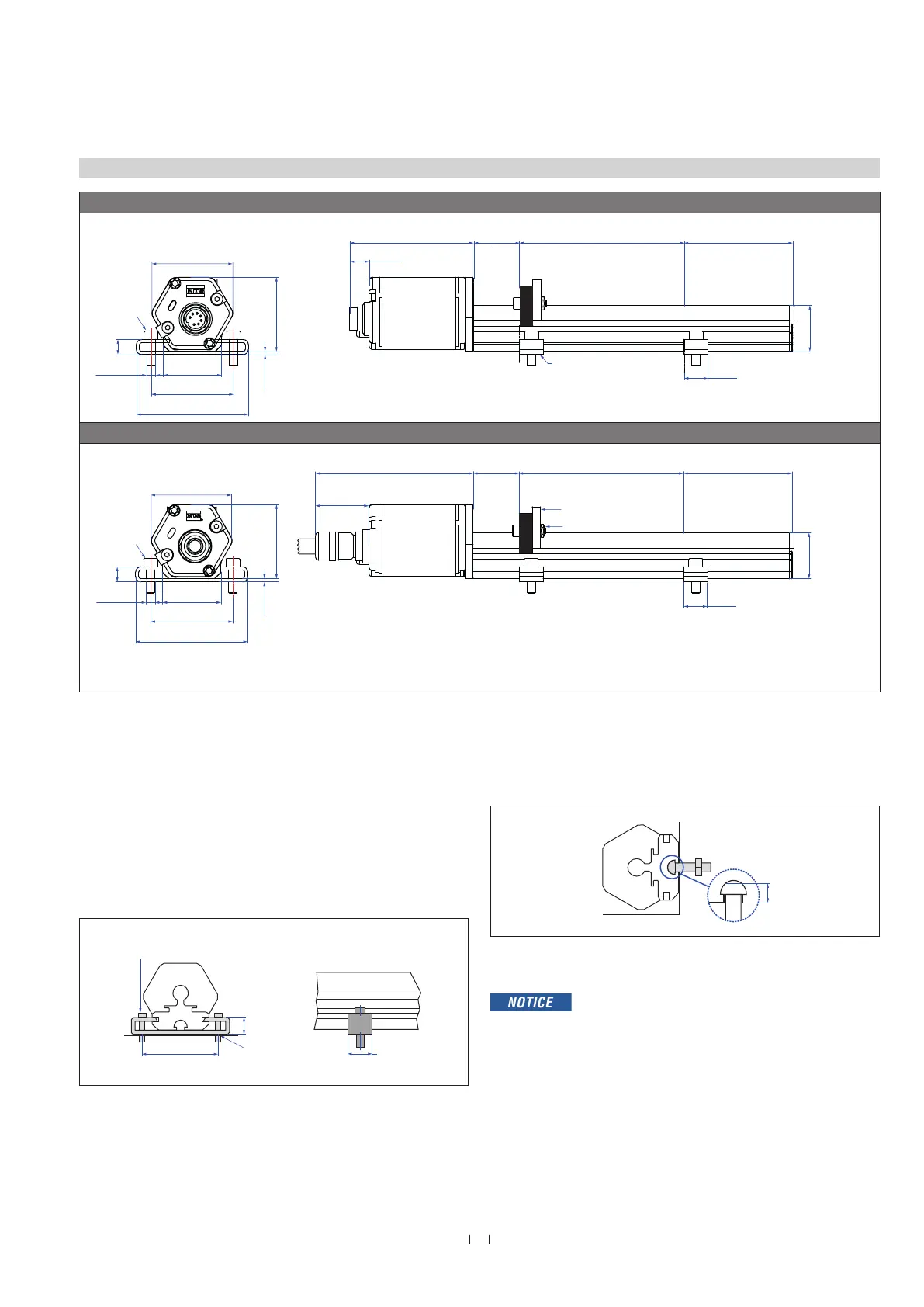

4.2 Styles and installation of Temposonics
®
RP
Fig. 4: Temposonics
®
RP with U-magnet
Installation of RP
The position sensor can be installed in any position. Normally, the
sensor is firmly installed and the position magnet is fastened to the
mobile machine part. Thus it can travel along the sensor profile. The
sensor is fitted on a flat machine surface using the mounting clamps
(Fig. 5). A length-dependent number of these clamps is delivered with
the sensor and must be distributed over the profile at regular distances.
For fastening use M5×20 screws to DIN 6912 that should be tightened
with a fastening torque of 5 Nm.
Fig. 5: Mounting clamps (part no. 400 802) with cylinder screw M5×20
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
Fig. 6: T-slot nut M5 (part no. 401 602)
NOTICE
Take care to mount the sensor in an axially parallel
position to avoid damage to magnet and sensor.
Alternative: If only limited space is available, the profile sensor can be
mounted also via the T-rail in the profile bottom using an T-slot nut M5
(part no. 401 602) or a sliding block (Fig. 6).
Fastening torque: 5 Nm
50
(1.97)
9.5
(0.38)
Bore Ø 5.5
(Ø 0.27)
14.5
(0.57)
≤ 5
(≤ 0.2)
M5
RP-M, example: Connector outlet D70
Ø 5.5
(Ø 0.22)
9
(0.36)
68 (2.68)
2
(0.08)
50 (1.97)
35.6 (1.4)
Dead zone
66 / 71*
(2.6 / 2.8*)
Stroke length
25…5080
(1…200)
Dead zone
66 / 71*
(2.6 / 2.8*)
Stroke length
25…5080
(1…200)
Sensor electronics housing
75.2
(2.96)
12
(0.47)
32.5
(1.28)
Sensor electronics housing
96
(3.78)
28
(1.1)
14.5
(0.57)
28
(1.1)
28
(1.1)
Adjustable mounting clamp
Ø 5.5
(Ø 0.22)
9
(0.36)
68 (2.68)
2
(0.08)
50 (1.97)
35.6 (1.4)
e.g. for M5 or
#10 screws
M4×0.7-6g
Non-magnetic
mounting support
14.5
(0.57)
Null zone
28
(1.1)
Null zone
49 (1.93)
45
(1.77)
49 (1.93)
45 (1.77)
Magnet
Magnet
* Stroke length > 5000 mm (196.9 in.)
* Stroke length > 5000 mm (196.9 in.)
e.g. for M5 or
#10 screws
RP-M, example: Cable outlet FXX / HXX / PXX / RXX
Ø 5.5
(Ø 0.22)
9
(0.36)
68 (2.68)
2
(0.08)
50 (1.97)
35.6 (1.4)
Dead zone
66 / 71*
(2.6 / 2.8*)
Stroke length
25…5080
(1…200)
Dead zone
66 / 71*
(2.6 / 2.8*)
Stroke length
25…5080
(1…200)
Sensor electronics housing
75.2
(2.96)
12
(0.47)
32.5
(1.28)
Sensor electronics housing
96
(3.78)
28
(1.1)
14.5
(0.57)
28
(1.1)
28
(1.1)
Adjustable mounting clamp
Ø 5.5
(Ø 0.22)
9
(0.36)
68 (2.68)
2
(0.08)
50 (1.97)
35.6 (1.4)
e.g. for M5 or
#10 screws
M4×0.7-6g
Non-magnetic
mounting support
14.5
(0.57)
Null zone
28
(1.1)
Null zone
49 (1.93)
45
(1.77)
49 (1.93)
45 (1.77)
Magnet
Magnet
* Stroke length > 5000 mm (196.9 in.)
* Stroke length > 5000 mm (196.9 in.)
e.g. for M5 or
#10 screws
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
