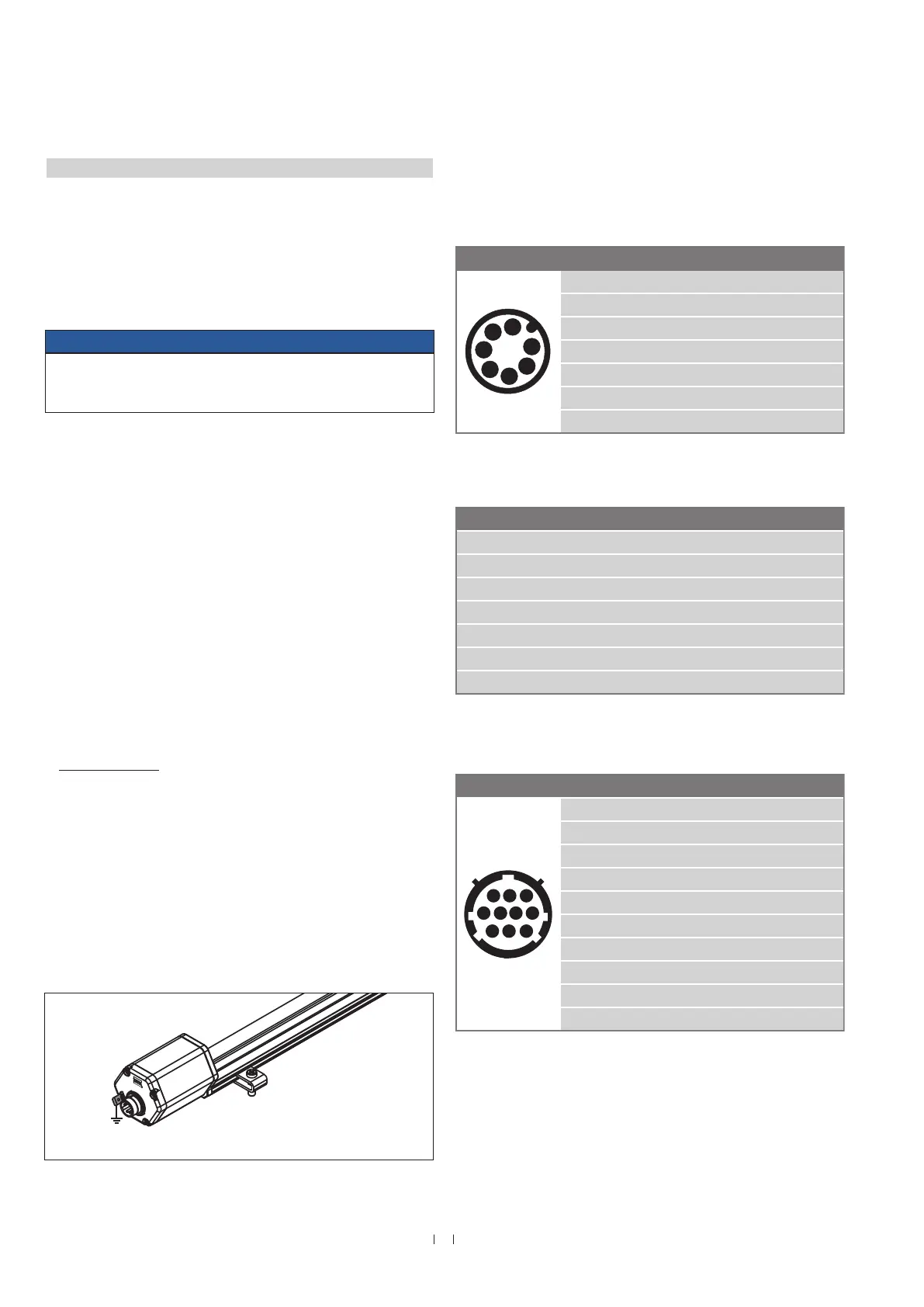

4.9 Electrical connections
Placement of installation and cabling have decisive influence on the
sensor‘s electromagnetic compatibility (EMC). Hence correct
installation of this active electronic system and the EMC of the entire
system must be ensured by using suitable metal connectors, shielded
cables and grounding. Overvoltages or faulty connections can damage
its electronics despite protection against wrong polarity.
Instructions for connection
• Use low-resistance twisted pair and shielded cables. Connect the
shield to ground externally via the controller equipment.
• Keep control and signal leads separate from power cables and
sufficiently far away from motor cables, frequency inverters,
valve lines, relays, etc..
• Use only connectors with metal housing and connect the shielding
to the connector housing.
• Keep the connection surface at both shielding ends as large
as possible. Connect the cable clamps to function as a ground.
• Keep all non-shielded leads as short as possible.
• Keep the earth connection as short as possible with a large
cross section. Avoid ground loops.
• With potential differences between machine and electronics earth
connections, no compensating currents are allowed to flow across
the cable shielding.
Recommendation:
Install potential compensating leads with large cross section, or use
cables with separate double shielding, and connect only one end of
the shield.
• Use only stabilized power supplies in compliance with the specified
connecting values.
NOTICE
1. Do not mount the sensors in the area of strong magnetic or
electric noise fields.
2. Never connect / disconnect the sensor when voltage is applied.
Connector wiring
Connect the sensor directly to the control system, indicator or other
evaluating systems as follows:
M16 connector Pin Cable Function
1
4
2
6
3
5
7
1 GY Data (−)
2 PK Data (+)
3 YE Clock (+)
4 GN Clock (−)
5 BN +24 VDC (−15 / +20 %)
6 WH DC Ground (0 V)
7 – Not connected
D70 / HXX / PXX / RXX
Grounding of profile and rod sensors
Connect the sensor electronics housing to machine ground. Ground
sensor types RP, RH, RD4, RT4 and RF via ground lug as shown in
Fig. 47. In addition you can ground the sensor type RH via thread.
Fig. 47: Grounding via ground lug (e.g. profile sensor)
Fig. 48: Connector wiring D70 (M16) / HXX / PXX / RXX
Cable Function
GY Data (−)
PK Data (+)
YE Clock (+)
GN Clock (−)
RD +24 VDC (−15 / +20 %)
WH DC Ground (0 V)
– Not connected
FXX
Fig. 49: Connector wiring FXX
MS connector Pin Cable Function
H BA
CG
F D
E
JK
A WH DC Ground
B – Not connected
C GY Data (−)
D PK Data (+)
E RD +24 VDC (−15 / +20 %)
F – Not connected
G YE Clock (+)
H GN Clock (−)
J – Not connected
K – Not connected
MS0
Fig. 50: Connector wiring MS0 (MS)
