Mueller ISOBUS SPRAYER-Controller MIDI 3.0 User Manual

Mounting and installation
System Overview
4
30303187-02-EN
V1.20170116
17

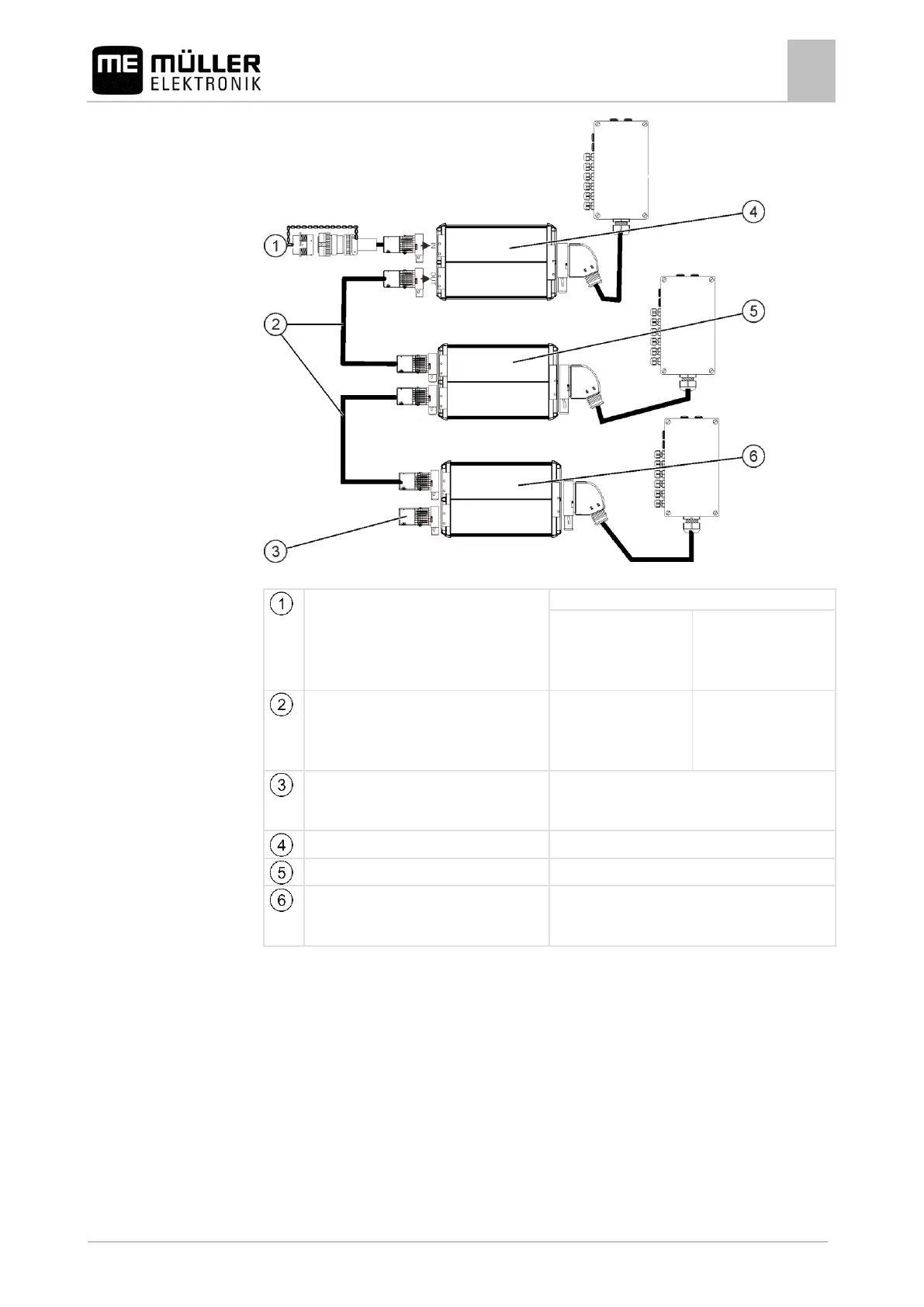

Main system of the MIDI 3.0 version
Connector cable for job computer to ISOBUS
Connection to ISOBUS power socket
Cable length - Item number:
1m - 3030314301
2.5m - 3030314601
4m - 3030314401
5.5m - 3030314801
6.5m - 3030314001
8.5m - 3030314201
11m - 3030314101
14m - 3030314701
Connector cable
0.3m - 30322355
1.5m - 30322359
3.2m - 30322358
4m - 3032235801
6.5m - 30322357
8m - 3032235802
10m - 30322356
14m - 3032235803
Water and dust protection cap or terminating
resistor.
Otherwise, connection of extensions.
31300581 - Terminating resistor is supplied with the
master job computer and must not be ordered
separately.
ECU-MIDI - Master
30322455
ECU-MIDI - Slave
30322456
ECU-MIDI - Slave
30322456
Slave job computers differ in terms of the software and
configuration. The hardware is the same.
Cabling concept
To prevent voltage drops, always install the job computers close to their power consumers (especially
the actuators).
