4
Mounting and installation

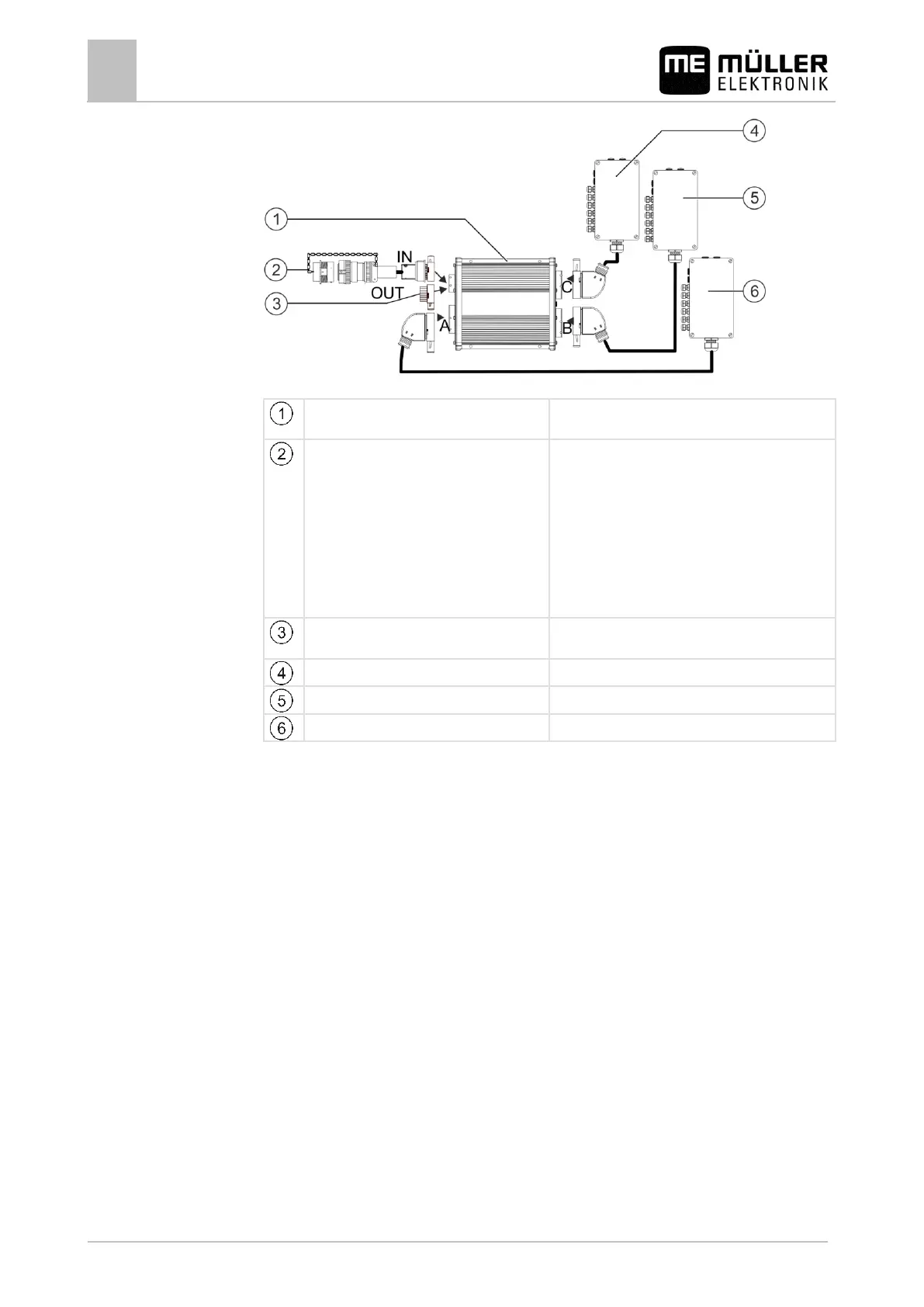

System Overview
16
30303187-02-EN
Main system - Version MAXI 3.0
ISOBUS job computer SPRAYER-Controller
MAXI 3.0
30303187
Connector cable for job computer to ISOBUS
Connection to ISOBUS power socket
Cable length - Item number:
1m - 3030314301
2.5m - 3030314601
4m - 3030314401
5.5m - 3030314801
6.5m - 3030314001
8.5m - 3030314201
11m - 3030314101
14m - 3030314701
Water and dust protection cap.
Otherwise, connection of extensions.
Junction box C
Depending on the field sprayer model
Junction box B
Depending on the field sprayer model
Junction box A
Depending on the field sprayer model
The system can be expanded with other components. For each extension, another job computer with
cable harness and junction box is connected to the main system. The system overviews are given in
the following sections.
Main system - MIDI
The system can be expanded. The basic version consists of one to three job computers. The first job
computer is connected to the ISOBUS power socket on the tractor.
Extensions
4.1.2
