Basic control principles
Screen structure
Boom display area
In the boom display you find the following information:
▪ Number of sections
▪ Which sections are preselected or switched off
▪ Which sections are applying

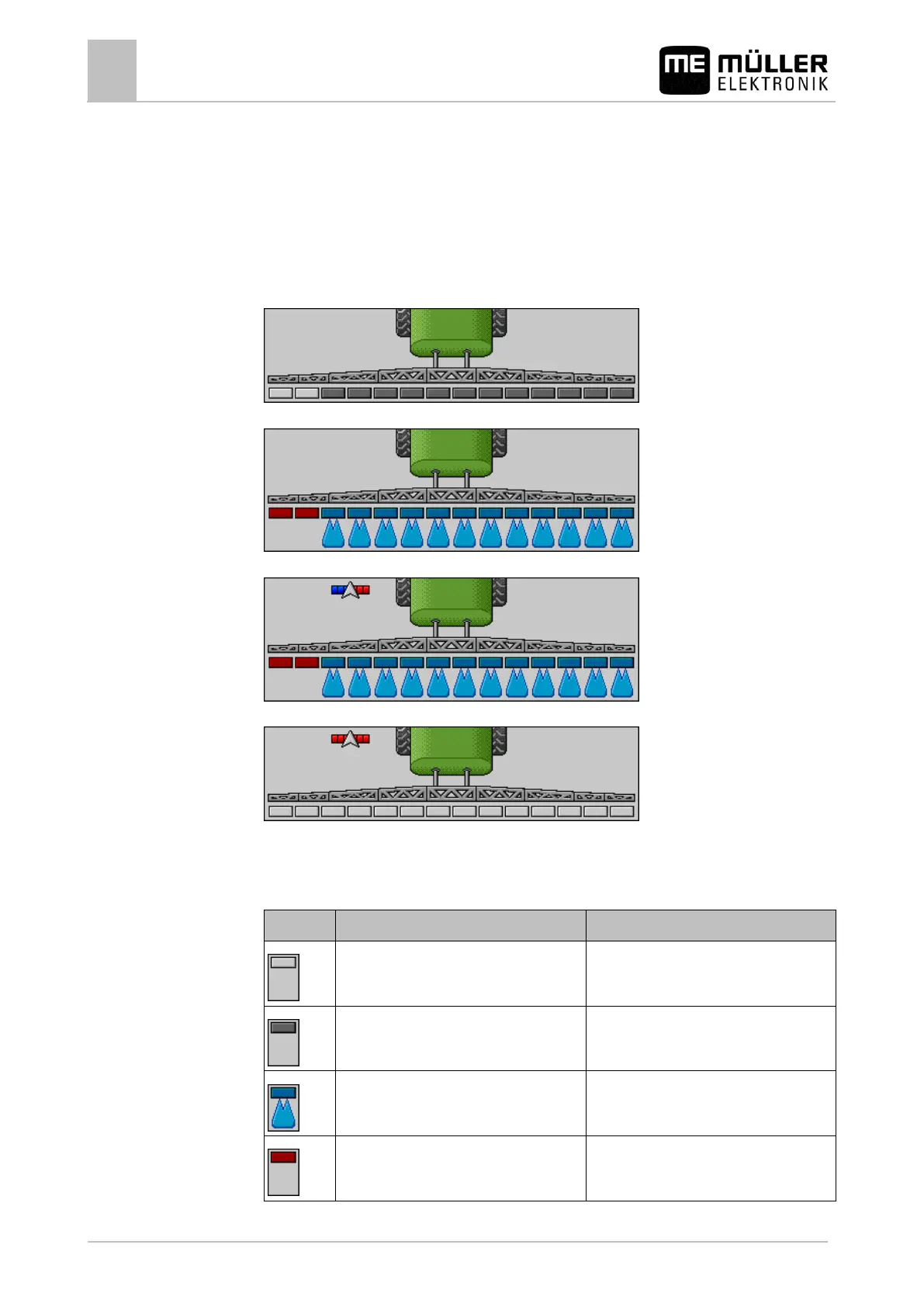

The diagrams below show how the sections may appear in the boom display area:
Sections 1 and 2 are closed and deactivated.
Sections 1 and 2 are closed. All of the other sections are open and spraying.
When SECTION-Control is activated, the blue-red SECTION-Control icon also appears.
When SECTION-Control is not possible, this icon is red.
Each square under the boom icon represents one section valve.
Section status
Status of the section valve
Status of the control/main valve
