Mounting and installation
Connecting the terminal to the basic equipment
12 Copyright © Müller-Elektronik GmbH & Co.KG
Terminal ports

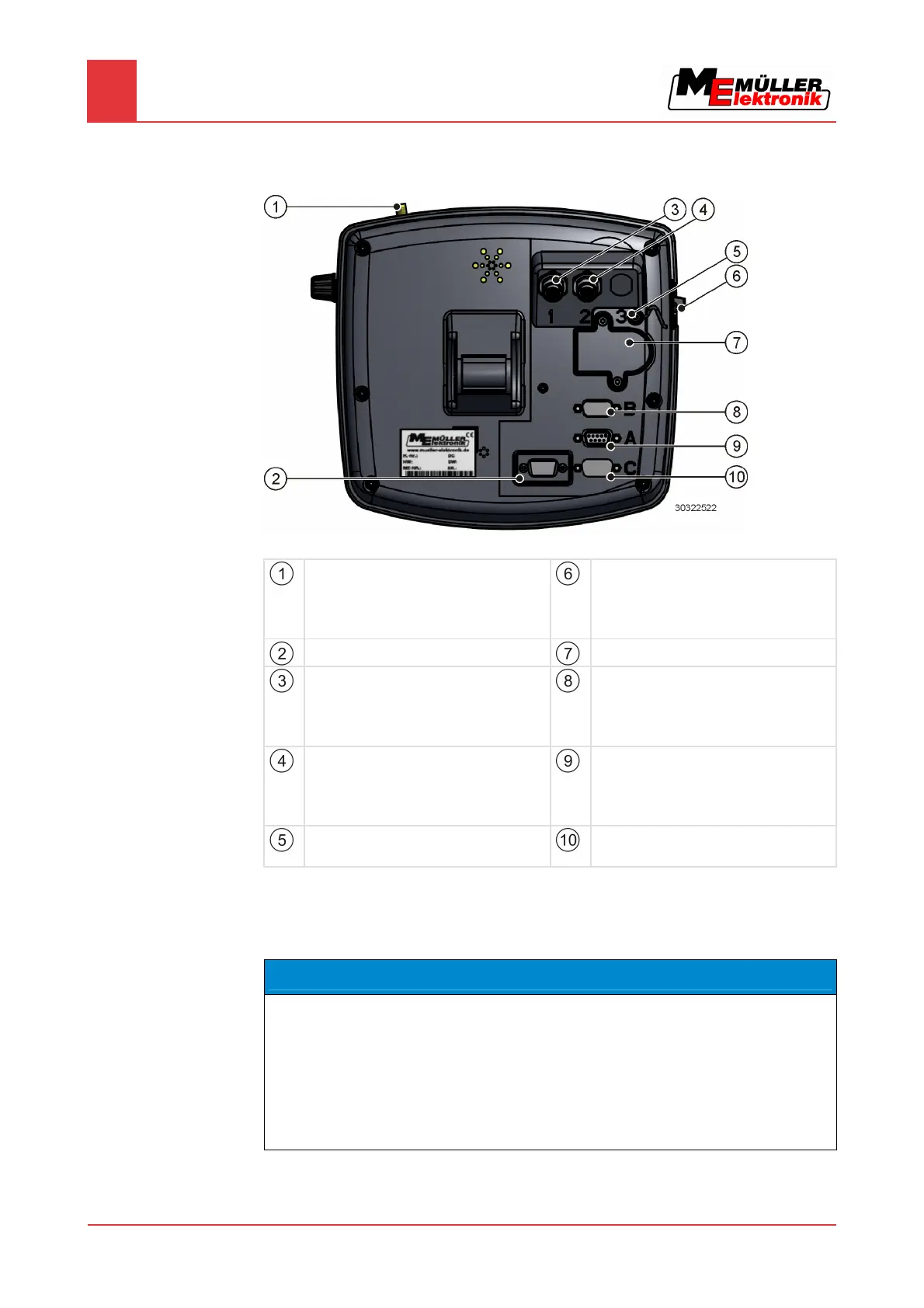

Reverse of the terminal BASIC-Terminal
GSM antenna port
Only for terminals with a GSM modem
installed.
Item no. 30322512
USB port
USB 1.1
Not currently in use SIM card slot
Port for analogue camera
Only for terminals with a GSM modem
installed.
Item no. 30322512
Port B
CAN bus port
To connect a working position sensor for
TRACK-Leader 2
Port for analogue camera
Only for terminals with a GSM modem
installed.
Item no. 30322512
Port A
CAN bus port
To connect the ISOBUS basic equipment.
Covering cap for USB port
Prevents dust from entering the USB socket.
Port C
Serial port RS232
Connecting the terminal to the basic equipment
NOTICE
Risk of damage when using non-standard basic equipment.
Connecting the terminal to non-standard basic equipment may damage both the terminal and the
basic equipment.
◦ Before connecting the terminal to any existing basic equipment, check that the equipment
conforms to ISO 11783.
◦ Do not connect the terminal to any basic equipment that does not comply with ISO 11783.
