Muller Elektronik BASIC-Terminal User Manual

Mounting and installation
Connecting the terminal to the basic equipment
4
Copyright © Müller-Elektronik GmbH & Co.KG 13
Checking the ISOBUS compatibility of the basic equipment

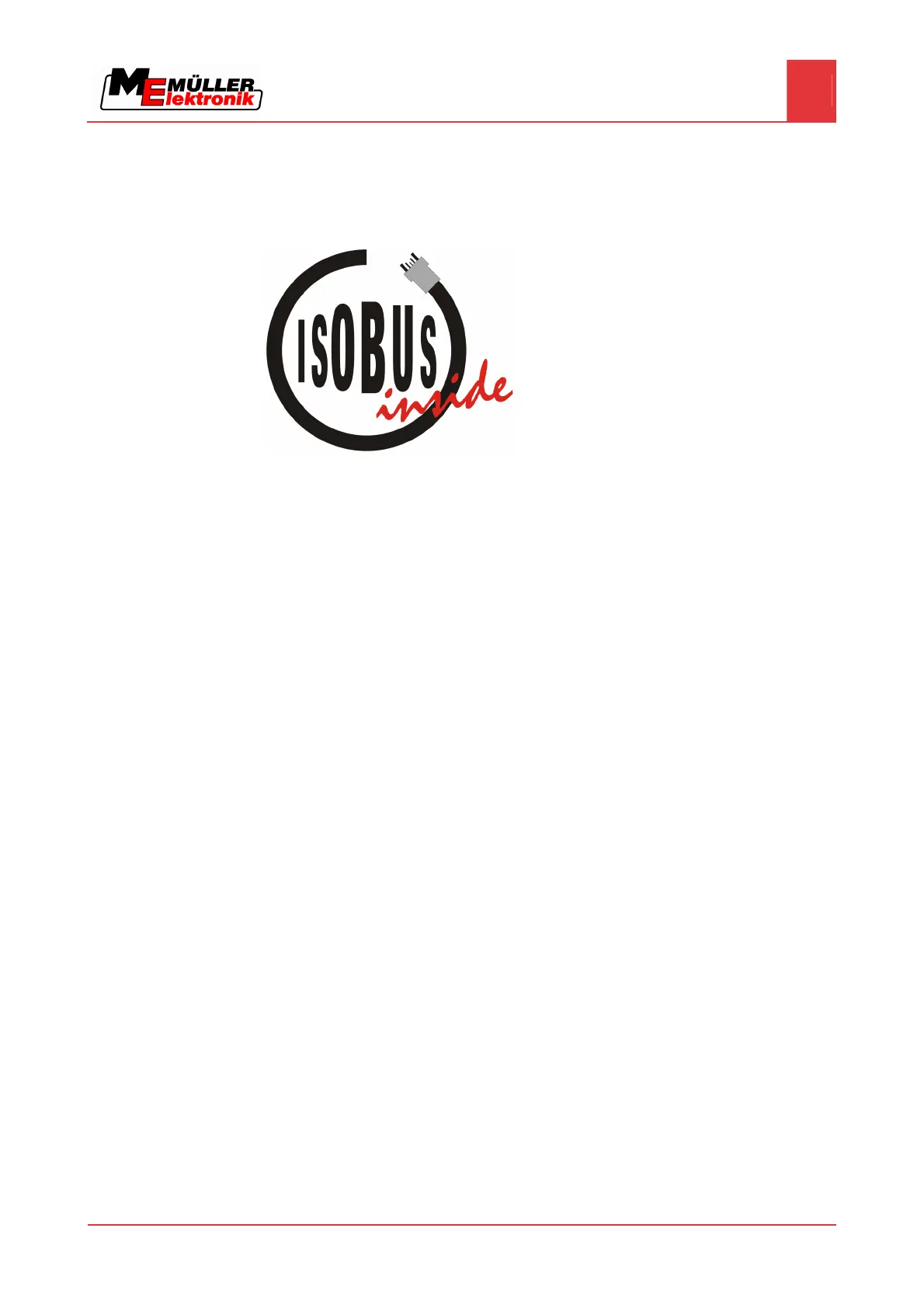

The basic equipment provided by Müller-Elektronik is ISO 11783-compatible and labelled with the
following sticker on the ISOBUS socket:
Selecting the correct basic equipment
You must select basic equipment that matches the fittings of the vehicle in which the terminal BASIC-
Terminal is to be installed.
The following types of basic equipment are available:
▪ Basic equipment for ISOBUS tractors
▪ Basic equipment for tractors without signal capture
▪ Basic equipment for retrofitting tractors and for signal capture.
Basic equipment for ISOBUS tractors
Item name: Basic equipment BASIC – Terminal / -TOP for ISOBUS tractors (ISO 11783) with
ISOBUS terminal connector
(Item no.: 30322541)
Suitable for:
▪ Tractors with a power socket for connecting the ISOBUS basic equipment. The power socket
must conform to ISO 11783.
In this case, only one connecting cable is required to link the terminal to the tractor bus and the power
supply.
Basic equipment for tractors without signal capture
Item name: Basic equipment BASIC – Terminal / -TOP without tractor jobcomputer
(Item no.: 30322550)
Suitable for:
▪ Tractors without signal capture.
Basic equipment for retrofitting tractors and for signal capture.
Item name: Basic equipment BASIC – Terminal / -TOP with tractor jobcomputer
Suitable for retrofitting tractors and for signal capture.
