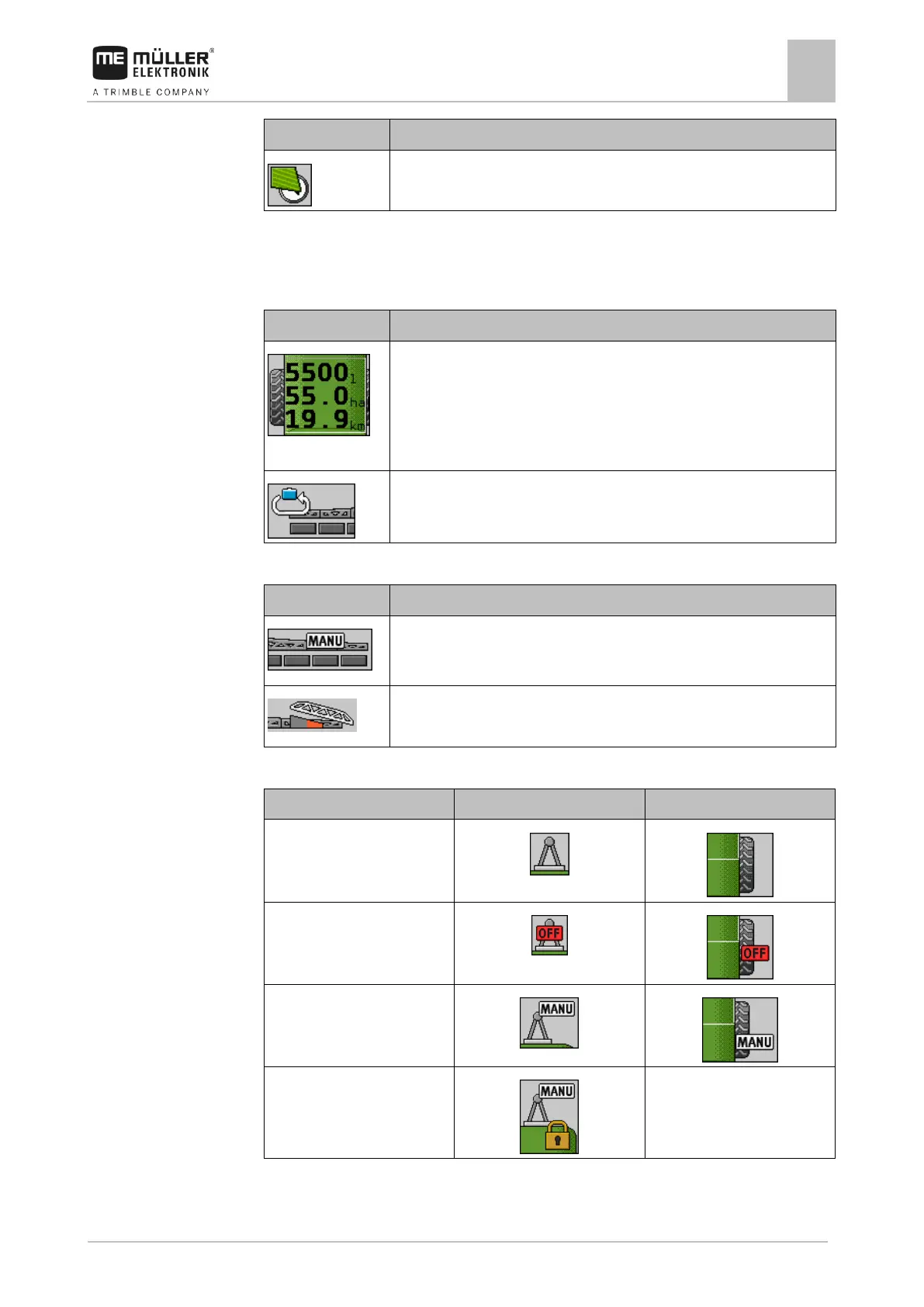

Icon
Meaning
Area output per hour
Icons on the implement image
General icons
Icon
Meaning
Tank counter:
- Current fill level (l)
- Area that can be sprayed until the tank is empty (ha)
- Distance that can be driven until the tank is empty (km)
Ring line circulation function switched on.
Boom
Icon
Meaning
DISTANCE-Control is installed but is deactivated.
The boom has to be controlled manually.
Display of the current boom slope. See: Reproducing the boom slope when
turning [➙ 40]
TRAIL-Control
Meaning
Icons for drawbar steering
Icons for axle steering
No TRAIL-Control or TRAIL-
Control in automatic mode.
TRAIL-Control is installed but is
deactivated.
TRAIL-Control is in manual
mode.
The drawbar is locked with a
pin
5.2.4
