Basic control principles
Layout of work screen

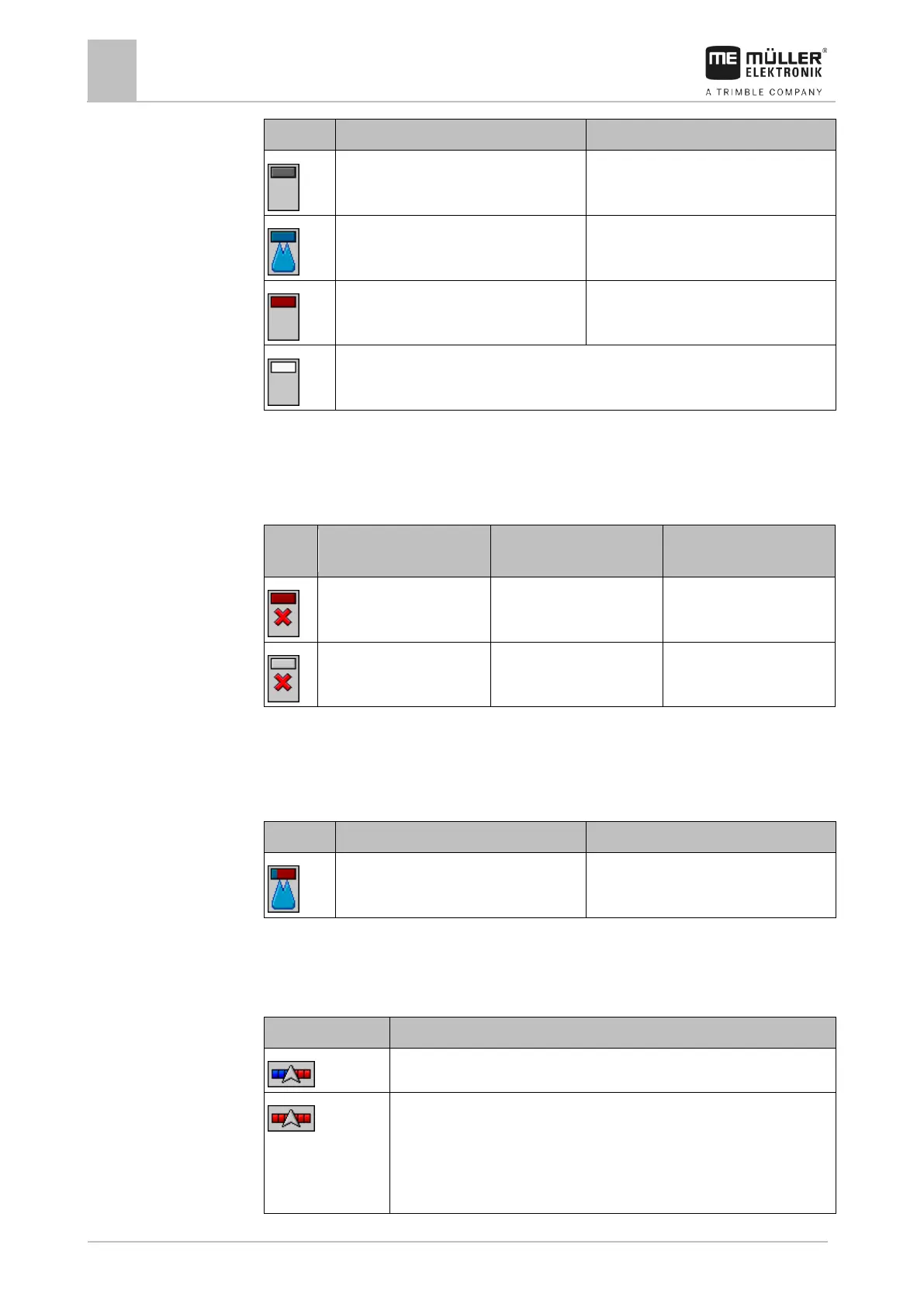

Status of the section valve
Status of the control/main valve
The section is permanently deactivated
When the sections are automatically switched using SECTION-Control, you have to ensure that the
sections are not deactivated using an S-Box or a joystick. In this case, the section would be marked
with a red cross and remain closed.
Section status with SECTION-Control and with S-Box
Status defined by SEC-
TION-Control
Status of the control/main
valve
Status via S-Box or joy-
stick
Field sprayers with EDS (single nozzle switching) do not have section valves. One section consists of
multiple nozzles that are switched by EDS modules. The section icon is divided into several
segments. Each segment represents one nozzle.
Section status with EDS
Icons beside the implement image
Functions
Sections are switched via SECTION-Control.
The SECTION-Control application has closed all sections.
Examples for the cause:
- Field sprayer is outside of the field boundary or in an area that has already
been applied
