User Manual

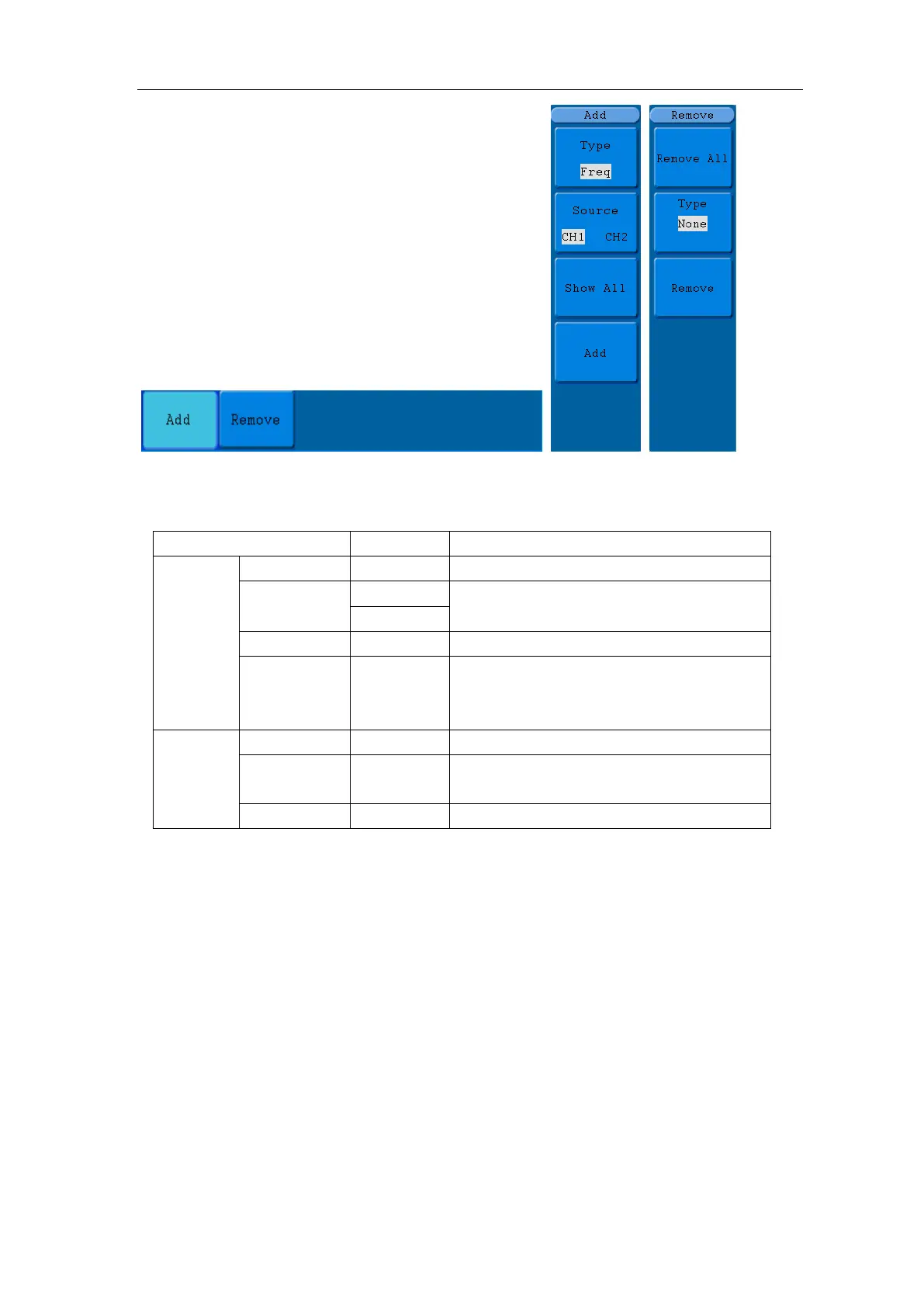

Figure 5-67 Measure Menu
The "Automatic Measurements" menu is described as the following table:
Press F1 ,show the measure types
Show all the measures on the screen
Add the selected measure types (shown
at the left bottom, you could only add 8
types at most)
Turn the M rotary control, select the
types need to be deleted.
Remove the chosen measure type
Measure
The measured values can be detected on each channel simultaneously. Only if the
waveform channel is in the ON state, the measurement can be performed. The automatic
measurement cannot be performed in the following situation: 1) On the saved waveform.
2) On the mathematical waveform. 3) On the XY format. 4) On the Scan format.
Measure the period, the frequency of the CH1 and the mean, the peak-to-peak voltage of
the CH2, following the steps below:
1. Press the Measure button to show the automatic measurement function menu.
2. Press the H1 button to display the Add menu.
3. Press the F2 button and choose CH1 as the source.
4. Press the F1 button, the type items will display at the left of screen, and turn the M
rotary control to choose Period.
5. Press the F4 button, the period options added completes.
To Next Page
