User Manual
(3) Press the F1 button to select the Band Limit as full band. The high
frequency of the signal will be allowed to pass.
(4) Press the F2 button to select the Band Limit as 20M. The bandwidth is
limited to 20 MHz. The frequencies above 20 MHz will be rejected.
Use Mathematical Manipulation Function
The Mathematical Manipulation function is used to show the results of the addition,
multiplication, division and subtraction operations between Channel 1 and Channel 2,
and the FFT operation of Channel 1 or Channel 2.

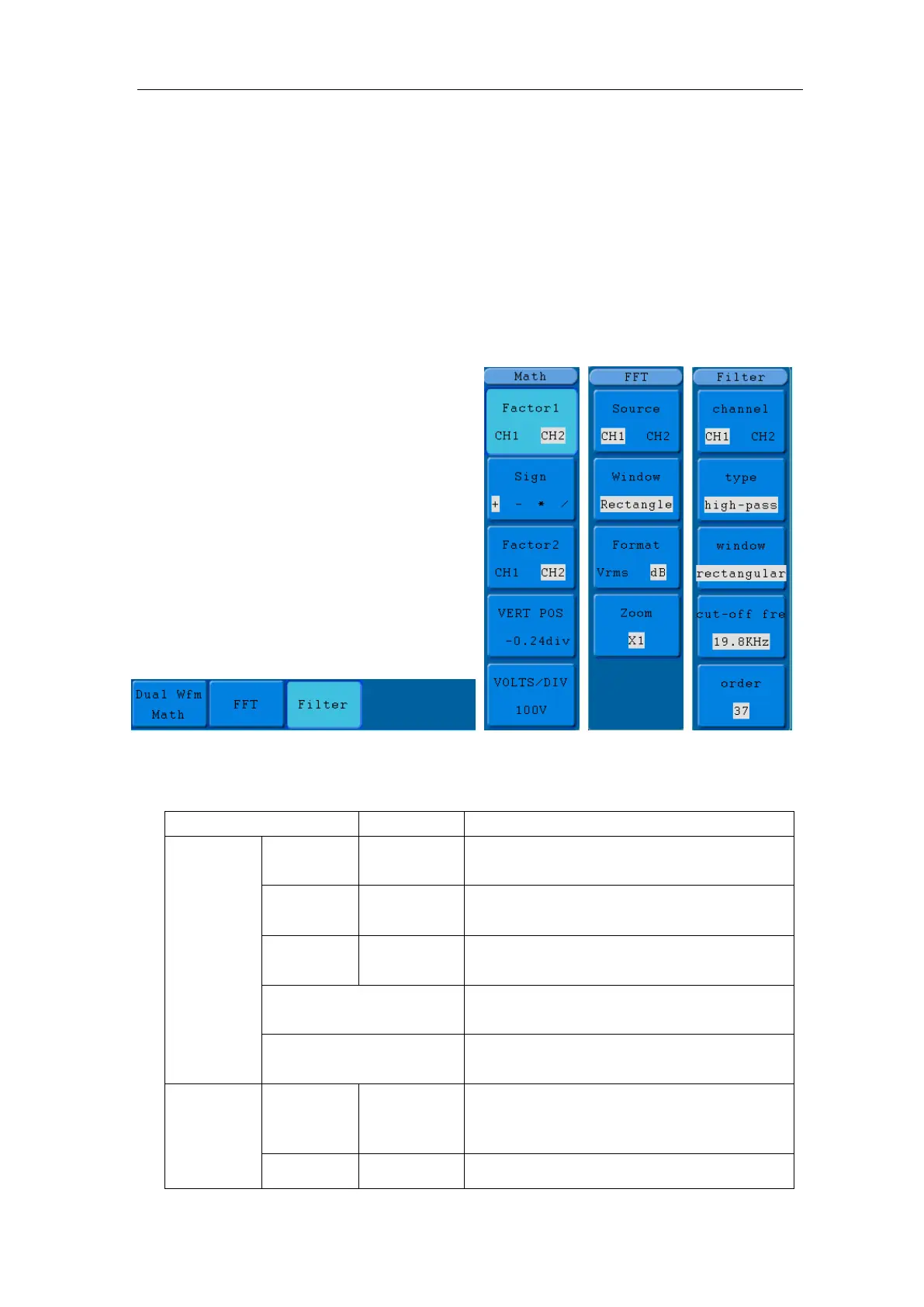

Figure 5-7 Wave math menu (Filter is only for some models)
The corresponding FCL (Functional Capabilities List) of the Waveform Calculation:
Select the signal source of the factor1
Select the sign of mathematical manipulation
Select the signal source of the factor2
Turn the M rotary control to adjust the
vertical position of M waveform
Turn the M rotary control to adjust the
voltage division of M waveform
Select CH1 as FFT source.
Select CH2 as FFT source.
To Next Page
