User Manual
(4) Set the network parameters of the oscilloscope. In the oscilloscope, press the
Utility button and press H1 button, turn the M rotary control to select the LAN Set;
press the H2 button, the set menu is displayed on the right. Set the IP and the Port to
the same value as the "Ports-settings" in the software in step (3). The Netgate and Net
mask should be set according to the router. Press the H3 button to select "Save set", it
prompts "reset to update the config". After resetting the oscilloscope, if you can get
data normally in the oscilloscope software, the connection is successful.

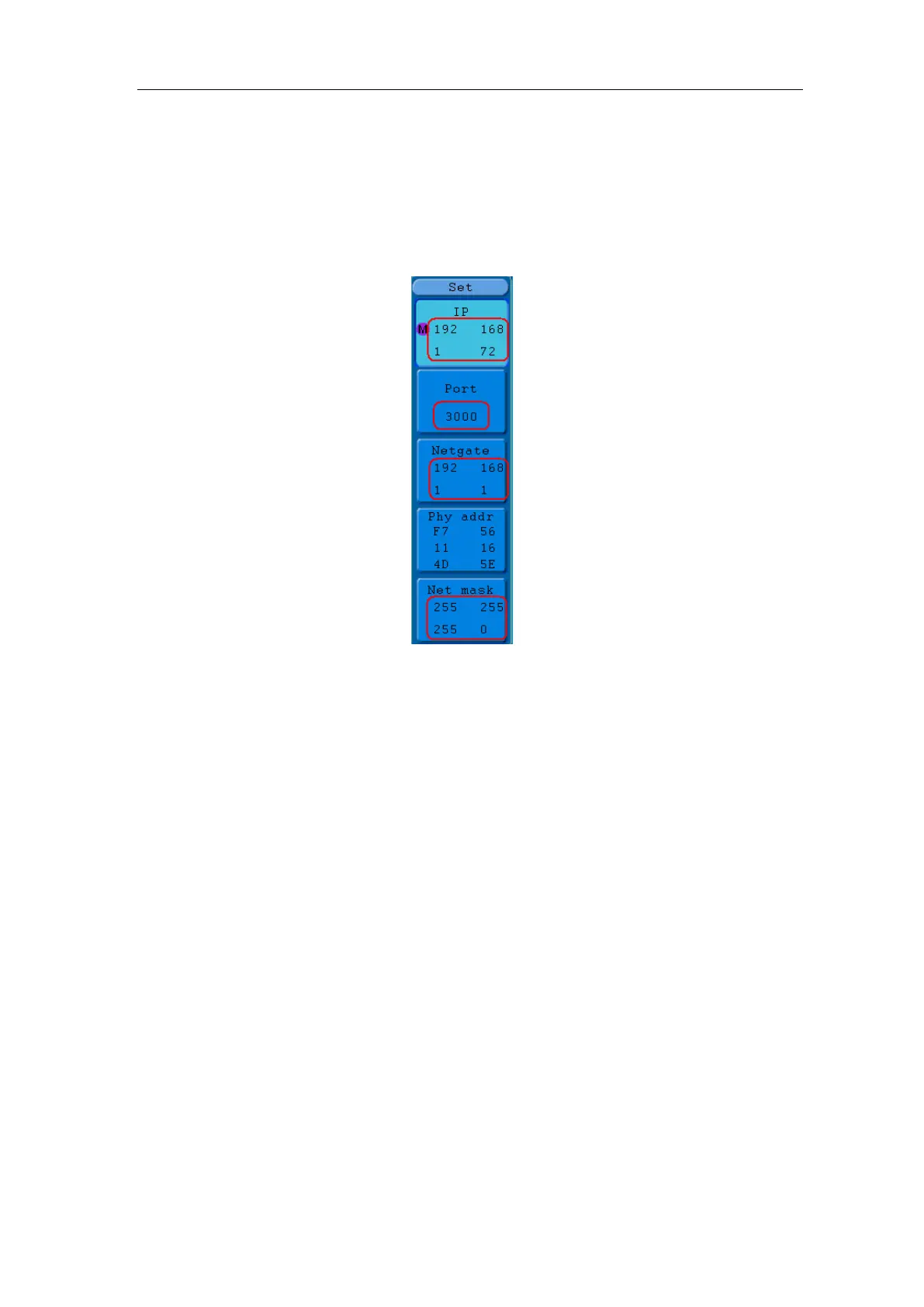

Figure 6-7 Set the network parameters of the oscilloscope
Using COM Port
(1) Connection. Use a data cable to connect the COM port in the right panel of the
Oscilloscope, to the COM port of a PC.
(2) Port setting of the software: Run the Oscilloscope software; click
"Communications" in the menu bar, choose "Ports-Settings", in the setting dialog,
choose "Connect using" as COM.
To learn about how to operate the software, you can press F1 in the software to open the
help document.
