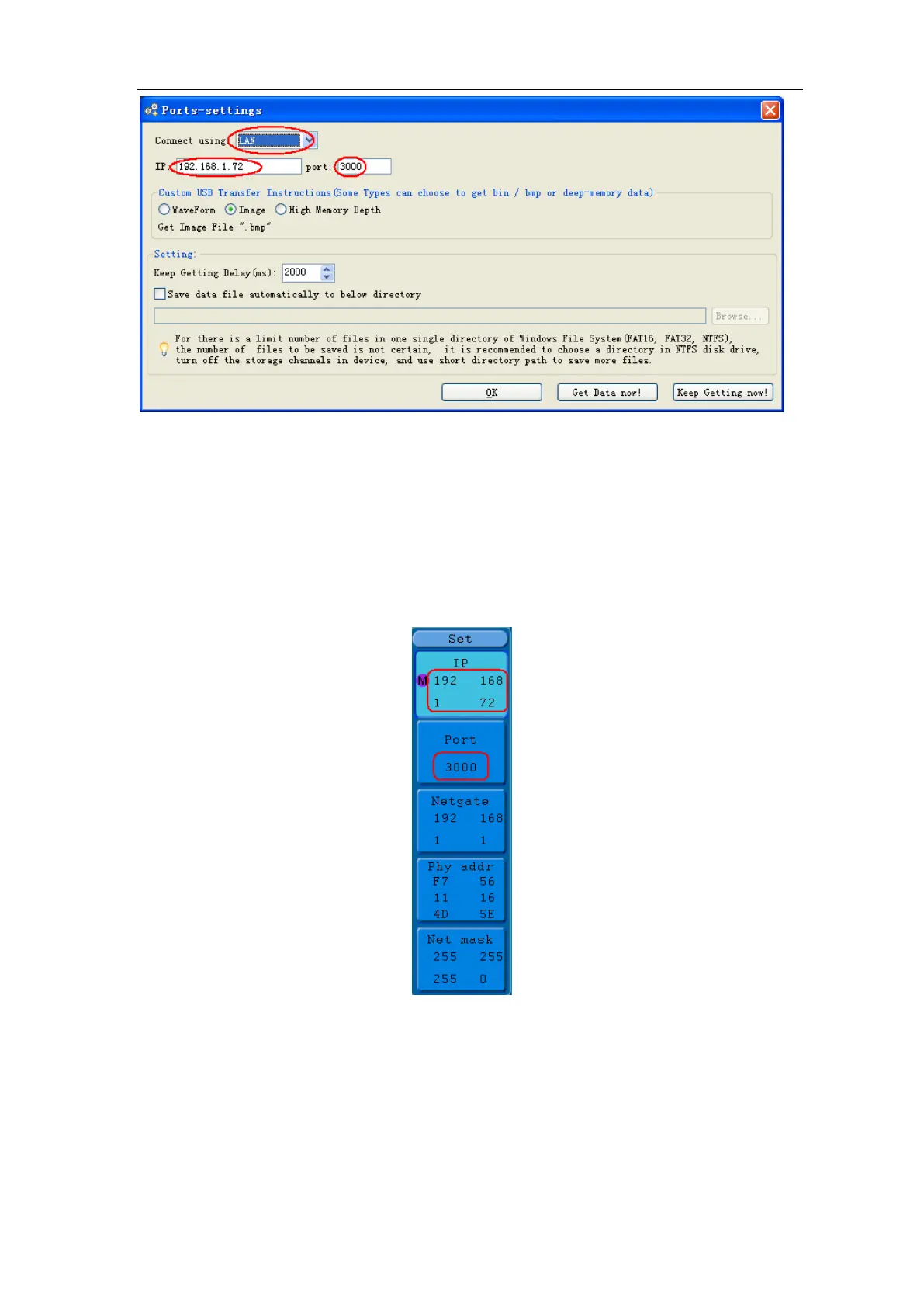

Figure 6-3 Set the network parameters of the Oscilloscope Software
(4) Set the network parameters of the oscilloscope. In the oscilloscope, press the
Utility button and press H1 button, turn the M rotary control to select the LAN Set;
press the H2 button, the set menu is displayed on the right. Set the IP and the Port to
the same value as the "Ports-settings" in the software in step (3). Press the H3 button
to select "Save set", it prompts "reset to update the config". After resetting the
oscilloscope, if you can get data normally in the oscilloscope software, the connection
is successful.
Figure 6-4 Set the network parameters of the oscilloscope
Connect through a router
(1) Connection. Use a LAN line to connect the oscilloscope with a router, the LAN port
of the oscilloscope is in the right side panel; the computer should be connected to the
router too.
(2) Set the network parameters of the computer. Since the oscilloscope can not
support obtaining an IP address automatically, you should assign a static IP address.
