User Manual

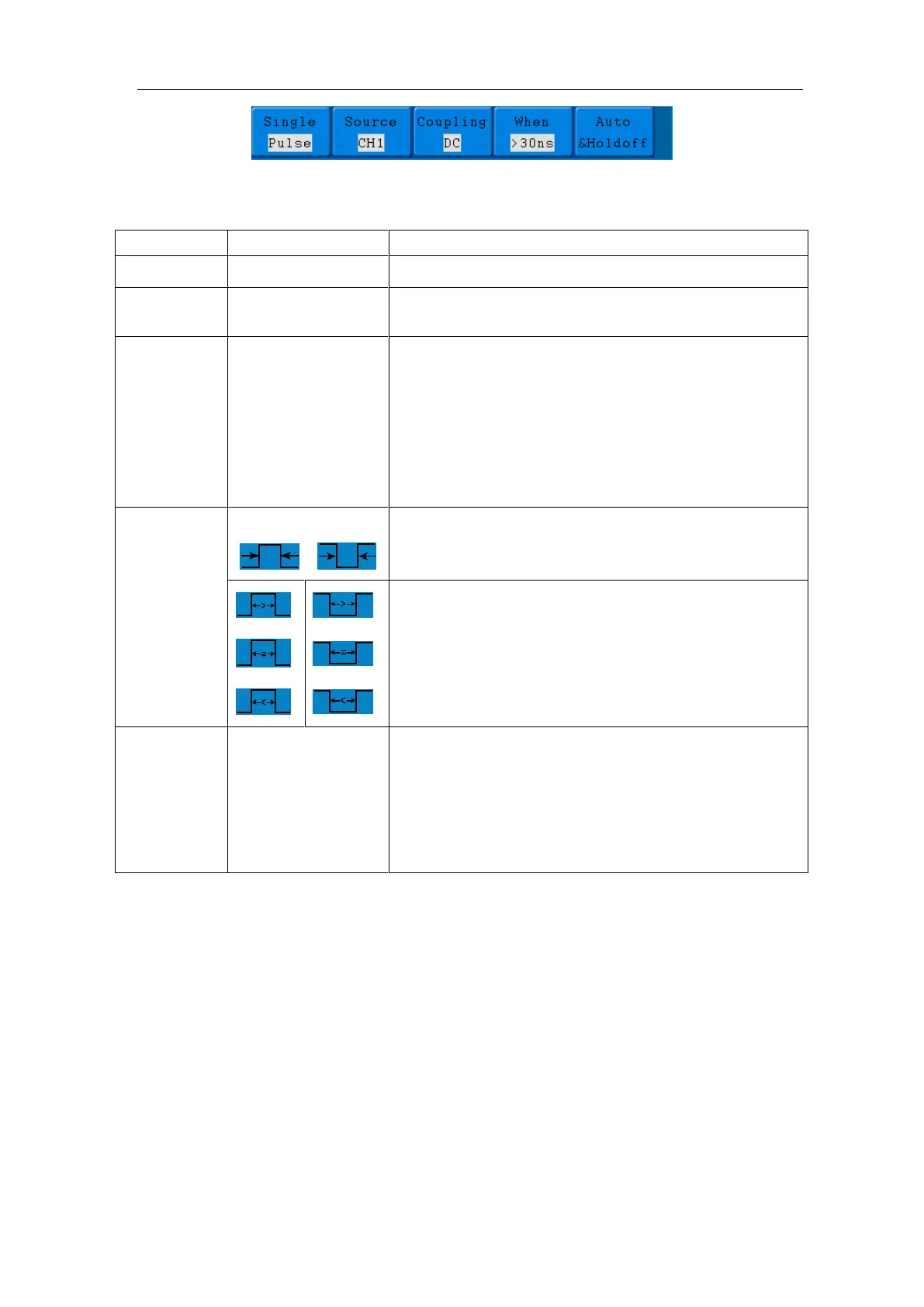

Figure 5-21 Pulse Width Trigger menu
Pulse Width Trigger menu list:
Set vertical channel trigger type as pulse trigger.
Select CH1 as the trigger source.
Select CH2 as the trigger source.
Not allow DC portion to pass.
Allow all portion pass.
Not allow high frequency of signal pass and only low
frequency portion pass.
Not allow low frequency of signal pass and only high
frequency portion pass
(SDS5032E(V), SDS5052E(V) do not have HF and LF)
Select pulse width condition and adjust the M rotary
control to set time.
Auto
Normal
Single
Holdoff
Reset
Acquire waveform even no trigger occurred
Acquire waveform when trigger occurred
When trigger occurs, acquire one waveform then stop
100 ns - 10 s, adjust M rotary control to set time
interval before another trigger occur.
Set Holdoff time as 100 ns
Alternate trigger
Trigger signal comes from two vertical channels when alternate trigger is on. This mode is
used to observe two unrelated signals. You can choose different trigger modes for different
channels. The options are as follows: edge, video, pulse or slope.
1. Alternate trigger (Trigger mode: Edge)
Alternate trigger (Trigger Type: Edge) Menu is shown as Figure 5-22.
