multicomp pro MP720012 - How to Implement Sampling Setup

User Manual
40

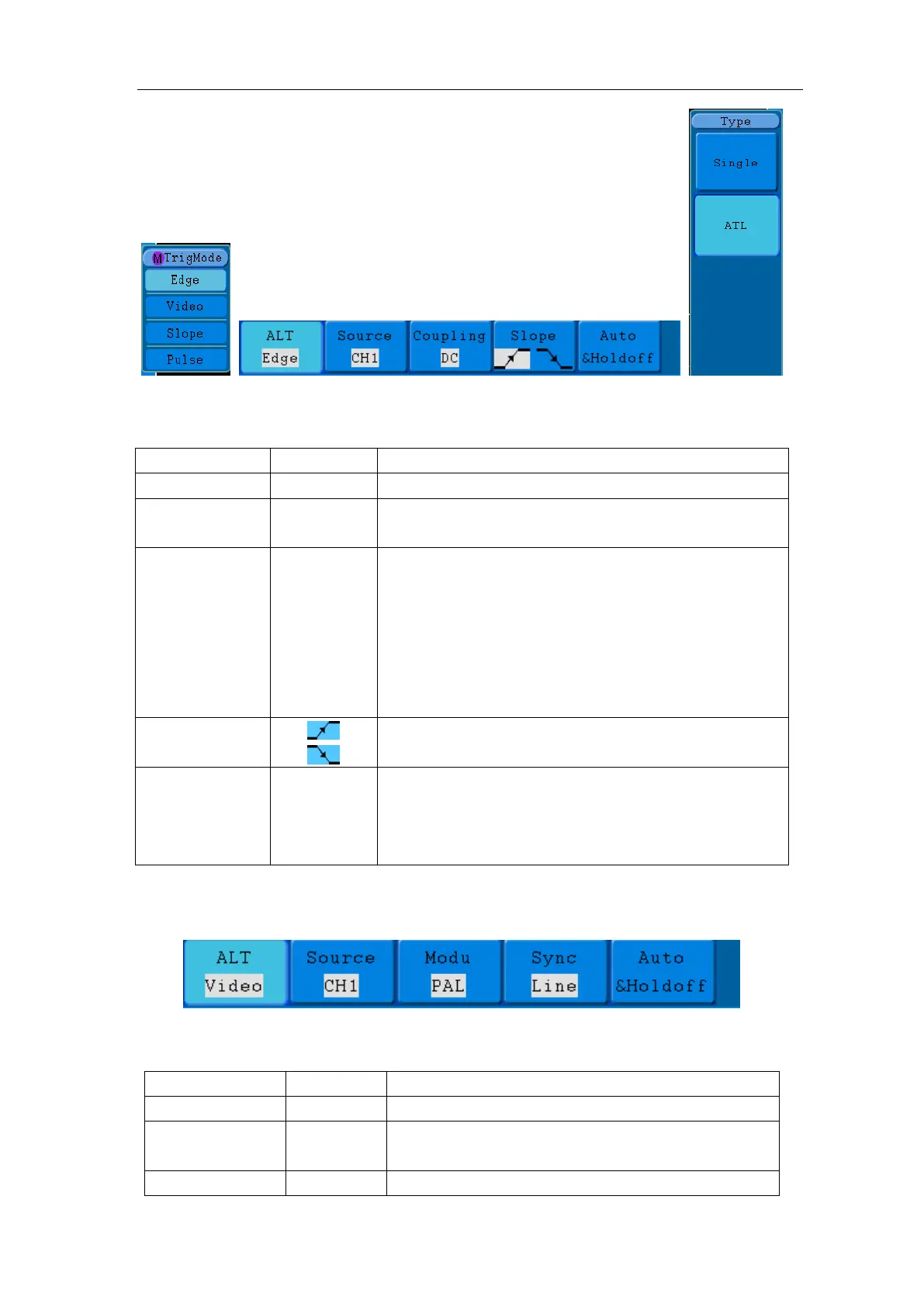

Figure 5-22 Alternate trigger (Trigger Type: Edge) Menu
Alternate trigger (Trigger Type: Edge) Menu list:
MENU
SETTING
INSTRUCTION
Alternate Mode
Edge
Set vertical channel trigger type as edge trigger.
Source
CH1
CH2
Select CH1 as the trigger source.
Select CH2 as the trigger source.
Coupling
AC
DC
HF
LF
Not allow DC portion to pass.
Allow all portion pass.
Not allow high frequency of signal pass and only
low frequency portion pass.
Not allow low frequency of signal pass and only
high frequency portion pass.
(SDS5032E(V), SDS5052E(V) do not have HF and LF)
Slope
Trigger in signal rising edge
Trigger in signal falling edge
Mode
Holdoff
Auto
Holdoff
Reset
Acquire waveform even no trigger occurred
100 ns - 10 s, adjust M rotary control to set time
interval before another trigger occur.
Set Holdoff time as 100 ns
2. Alternate trigger (Trigger Mode: video)
Alternate trigger (Trigger Type: video) Menu is shown as Figure 5-23.
Figure 5-23 Alternate trigger (Trigger Type: video) Menu
Alternate trigger (Trigger Type: video) Menu list:
MENU
SETTING
INSTRUCTION
Alternate Mode
Video
Set vertical channel trigger type as video trigger.
Source
CH1
CH2
Select CH1 as the trigger source.
Select CH2 as the trigger source.
Modu
NTSC
Select video modulation
