User Manual
41
PAL
SECAM
Sync
Line
Field
Odd Field
Even Field
Line NO.
Synchronic trigger in video line.
Synchronic trigger in video field.
Synchronic trigger in video odd filed
Synchronic trigger in video even field
Synchronic trigger in designed video line, turn the
M rotary control to set the line number
Mode
Holdoff
Auto
Holdoff
Reset
Acquire waveform even no trigger occurred
100 ns - 10 s, adjust the M rotary control to set
time interval before another trigger occur.
Set Holdoff time as 100 ns
3. Alternate trigger (Trigger Mode: Slope)

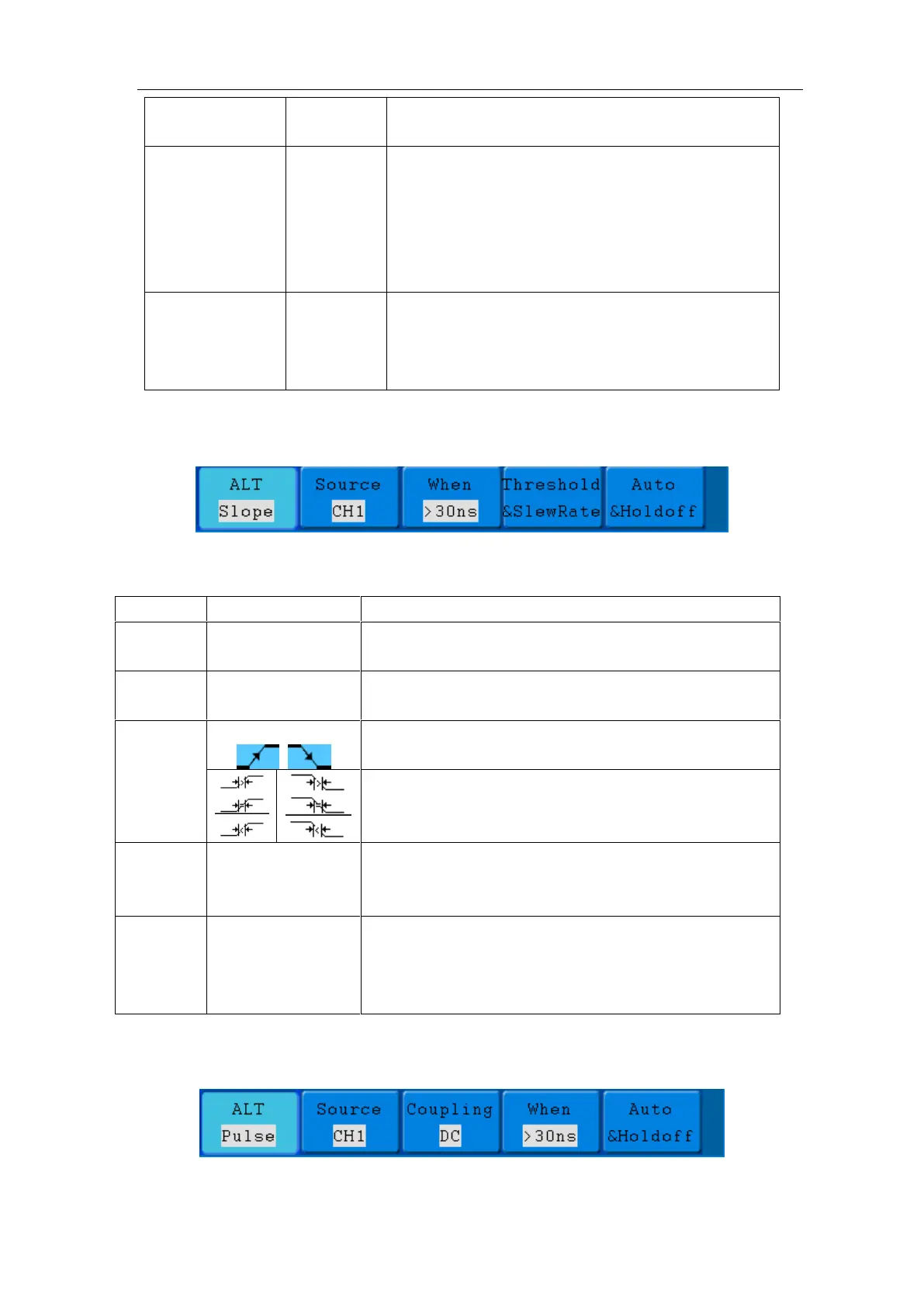

Alternate trigger (Trigger Type: Slope) Menu is shown as Figure 5-24.
Figure 5-24 Alternate trigger (Trigger Type: Slope) Menu
Alternate trigger (Trigger Type: Slope) menu list:
MENU
SETTING
INSTRUCTION
Alternate
Mode
Slope
Set vertical channel trigger type as slope trigger.
Source
CH1
CH2
Select CH1 as the trigger source.
Select CH2 as the trigger source.
When
slope
Select slope condition
Set slope condition; turn the M rotary control to set
time.
Threshold
High level
Low level
Slew rate
Turn the M rotary control to set the High level
Turn the M rotary control to set Low level
Slew rate=( High level- Low level)/ Settings
Mode
Holdoff
Auto
Holdoff
Reset
Acquire waveform even no trigger occurred
100 ns - 10 s, adjust the M rotary control to set time
interval before another trigger occur.
Set Holdoff time as 100 ns
4. Alternate trigger (Trigger Mode: Pulse)
Alternate trigger (Trigger Type: Pulse) Menu is shown as Figure 5-25.
Figure 5-25 Alternate trigger (Trigger Type: Pulse) Menu
