vertical sensitivity and anti-clockwise to decrease.
3. When the vertical position of the channel waveform is adjusted, the changed
value is displayed at the left bottom corner of the screen (see Figure 5-13).

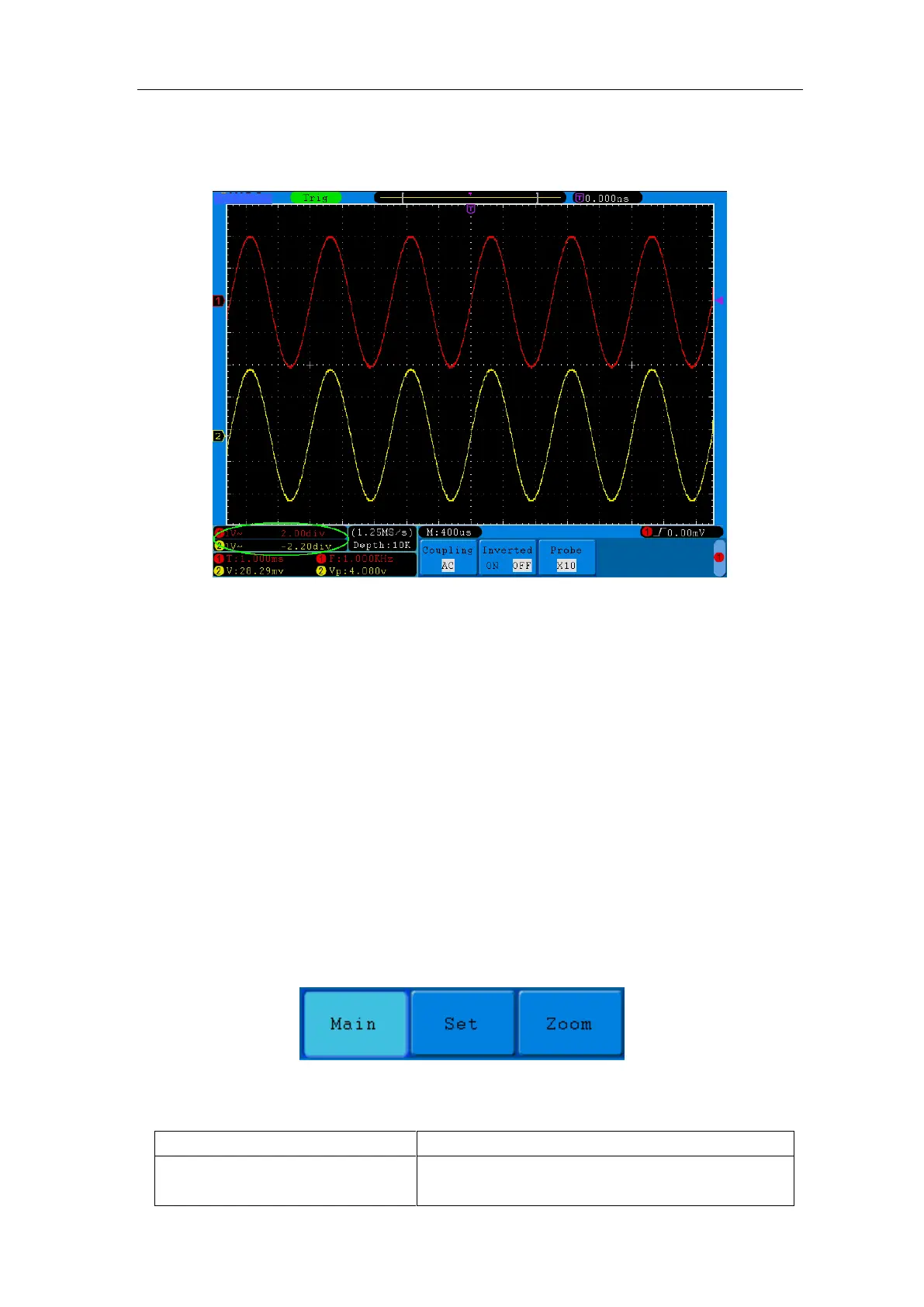

Figure 5-13 Information about Vertical Position
How to Set the Horizontal System
The HORIZONTAL CONTROLS includes the HORIZ MENU button and such
rotary controls as HORIZONTAL POSITION and SEC/DIV.
1. HORIZONTAL POSITION rotary control: this rotary control is used to adjust
the horizontal positions of all channels (include those obtained from the
mathematical manipulation), the analytic resolution of which changes with the
time base.
2. SEC/DIV rotary control: it is used to set the horizontal scale factor for setting the
main time base or the window.
3. HORIZ MENU button: with this button pushed down, the screen shows the
operating menu (see Figure 5-14).
Figure 5-14 Time Base Mode Menu
The description of the Horizontal Menu is as follows:
The setting of the horizontal main time base is
used to display the waveform.
