User Manual
A window area is defined by two cursors. This
function is not available at FFT mode.
The defined window area for display is
expanded to the full screen.
Main Time Base
Press the H1 menu selection button and choose Main. In this case, the
HORIZONTAL POSITION and SEC/DIV rotary controls are used to adjust the
main window. The display in the screen is shown as Figure 5-15.

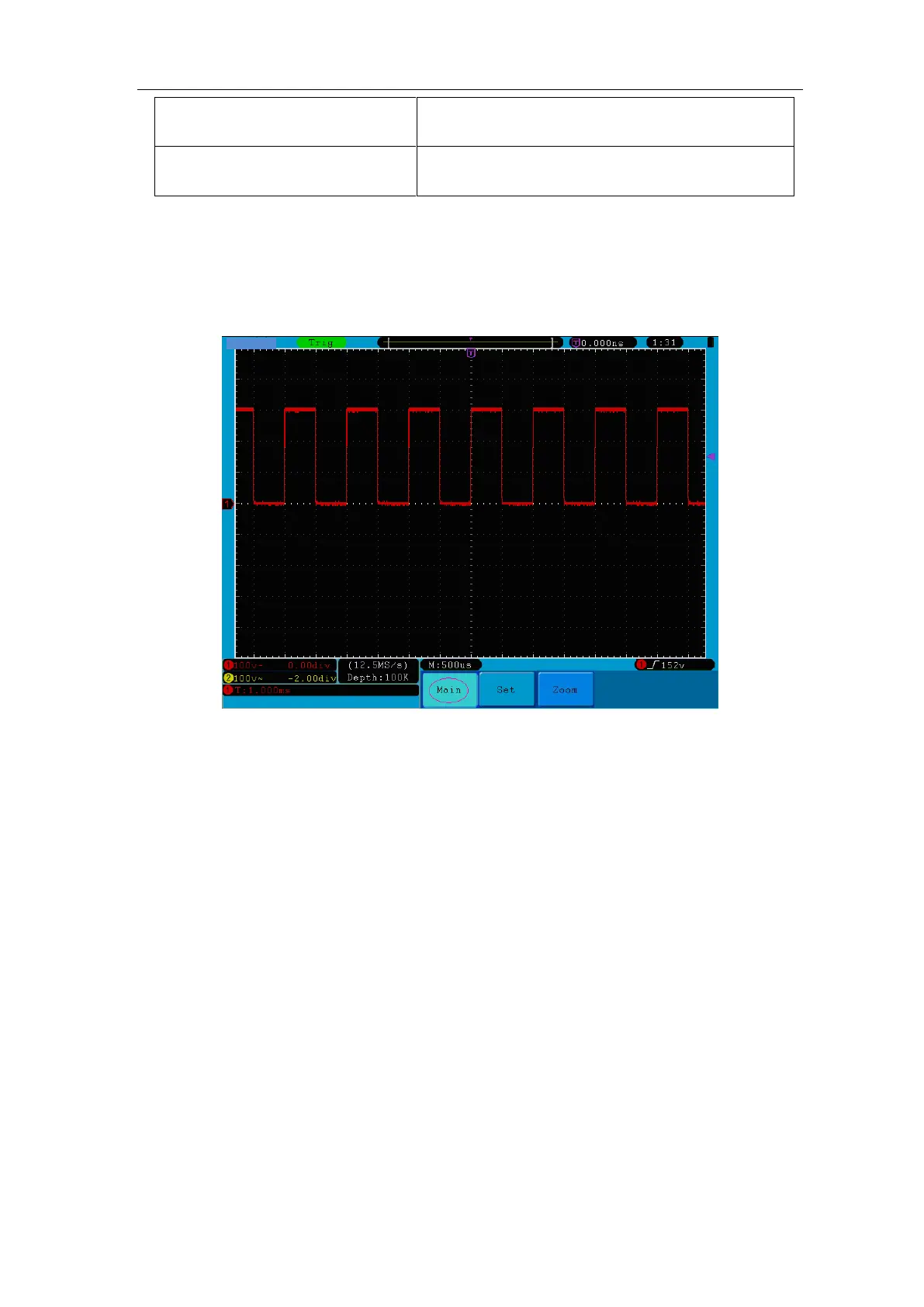

Figure 5-15 Main Time Base
Set Window
Press the H2 menu selection button and choose Set. The screen will show a window
area defined by two cursors. Use the HORIZONTAL POSITION and SEC/DIV
rotary controls to adjust the horizontal position and size of this window area. In FFT
mode, Set menu is invalid. See Figure 5-16.
To Next Page
