RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL S/N 3069933~ — REV. #0 (11/29/23) — PAGE 67
TRANSPORTING UNIT
74 RAMMAX 1575
1233029
WLL
3527 lb
1600 kg
15°
<
-
65°
<
-
30°
<
-
<
-
75°
LC
5511 lb
2500 kg
α
α
β
β
2.8 How to transport the Machine

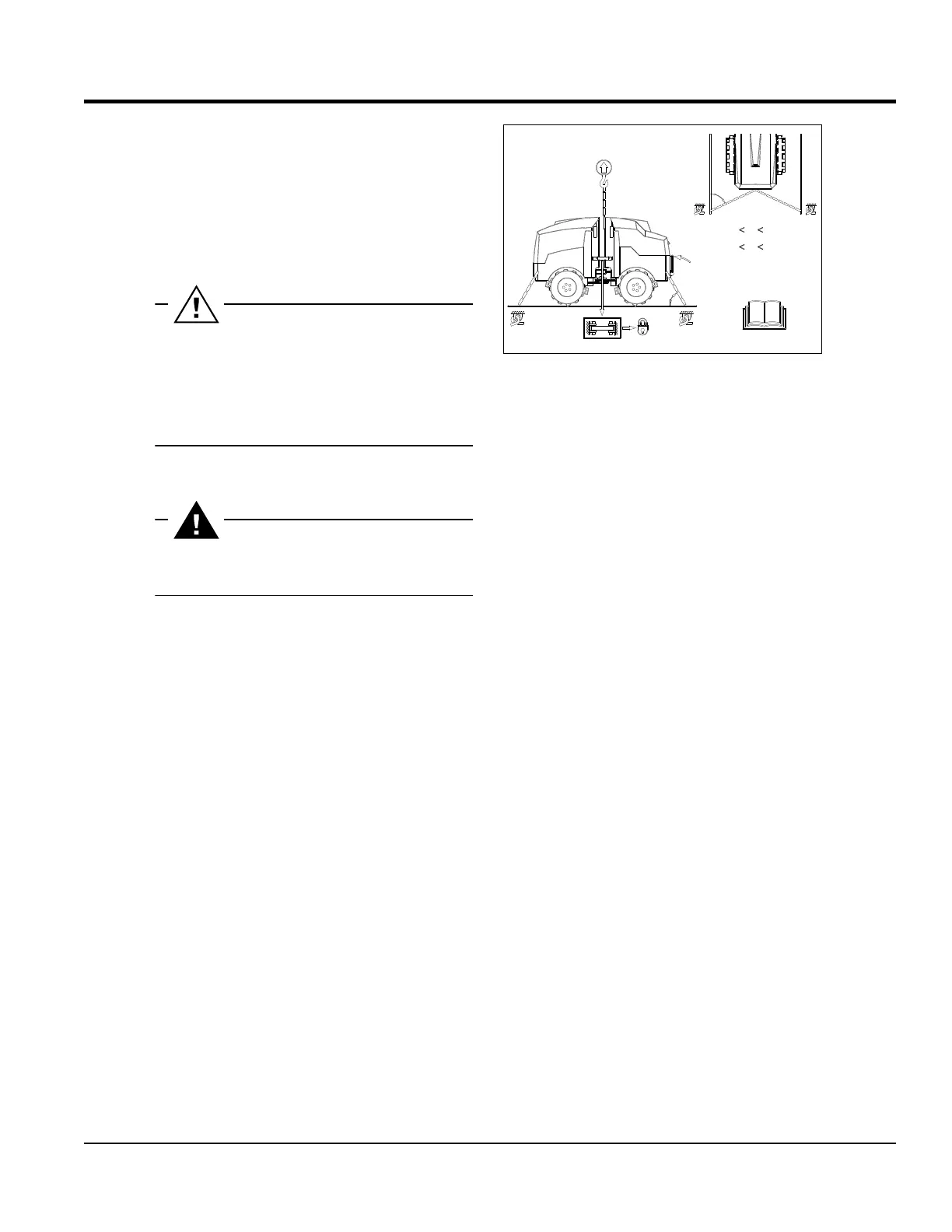

2.8.1.2 Loading the machine using a crane
• When loading with crane the Machine is tted with lifting
lugs - refer to the Fig. showing the lifting method.
• The 1-point lifting eye is designed for a WLL of 1.6 tons
(Working Load Limit).
• When lifting the Machine the Machine’s joint shall be se-
cured against turning.
Before lifting , make sure all screws on the 1-point lifting
eye are damage free and securely tightened. There must
not be any cracks or deformations on the one-point lift-
ing eye.
Observe the relevant national safety measures when
loading the machine with a crane.
Pay increased attention when loading the machine.
Improper handling can cause serious injury or death.
