RX1575 SERIES TRENCH ROLLER • OPERATION MANUAL S/N 3069933~ — REV. #0 (11/29/23) — PAGE 93
MAINTENANCE
2
1
Every 250 operating hours
The set of lters after 250 operating hours can be or-
dered under the order number 1228782. For the list of all
spare parts, see the table in the end of this publication.
3.6.15 Check of the fan and engine belt
condition
First carry out after 50 hours.
• Check the ventilator visually. In case of any damage (e.g.
missing parts of the material, cracks, changes in shape etc.)
replace the ventilator.
Fan
Order number: 1-952338
Check visually the belt, for intersecting crakcks. Longitudinal (di-
rection of belt length) cracks that intersect with traverse cracks
are not acceptable. Replace the belt if it is frayed or has pieces
of materiál missing.
The engine must be stopped for check of tightness of the
belt.

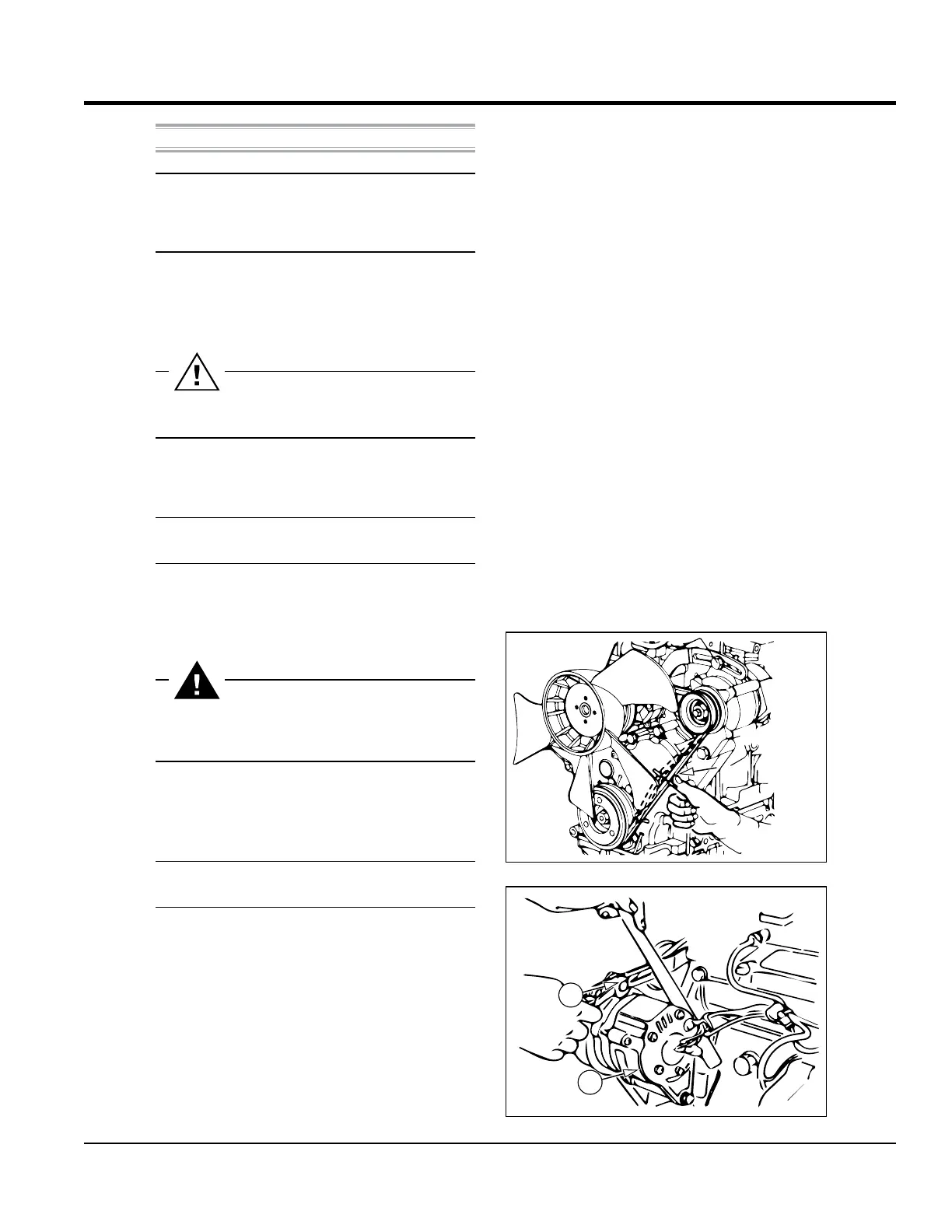

Use your thumb to press the belt by the force of 100 Nm. Check
the slack of the belt at the point illustrated in the picture. It
should be between 10-14 mm.
Belt
Order number: 1183743
• If needed, tighten the belt by releasing the bolt (1) and shift-
ing the alternator (2).
• Let the engine run for ve minutes and then check the belt
for correct tightness.
