10.2 Expansion Wiring Diagrams
• Trio to Trio Expansion Wiring
• High Voltage Relays
• Alarms and Power
10.2.1 T
RIO TO
T
RIO
E
XPANSION
W
IRING

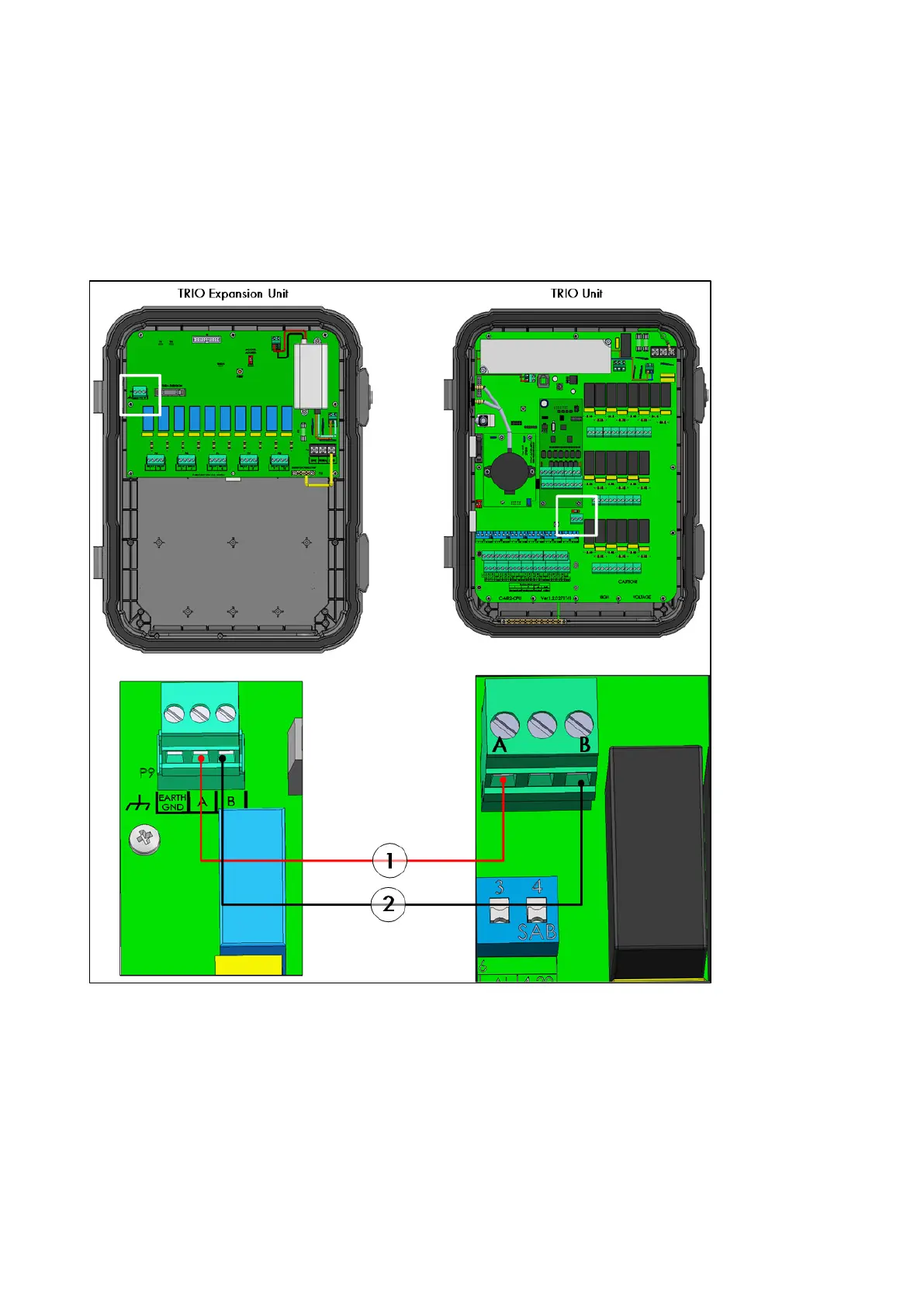

Figure 34: Wiring diagram
• The cable between the controller and the expansion unit should be a 4-wire twisted shielded
cable (22 or 24 AWG).
• 1 – red wire
• 2 – black wire
