Mapping Devices in Expansion
Install and wire the Expansion unit to the Trio and to the external devices before beginning.
After wiring the Expansion unit to Trio, go to System > General Settings > Info and
click . Follow the online instructions. Trio will not
recognize the Expansion until this step is performed.
After wiring devices to the Trio Expansion Unit, each device must be mapped and then defined. Mapping
and defining devices enable the system software to control each device’s functionality.
CAUTION
Mapping MUST match the physical wiring! An error message appears if the physical
device is not wired to the relay or port as defined on the mapping screen..
To map the devices:

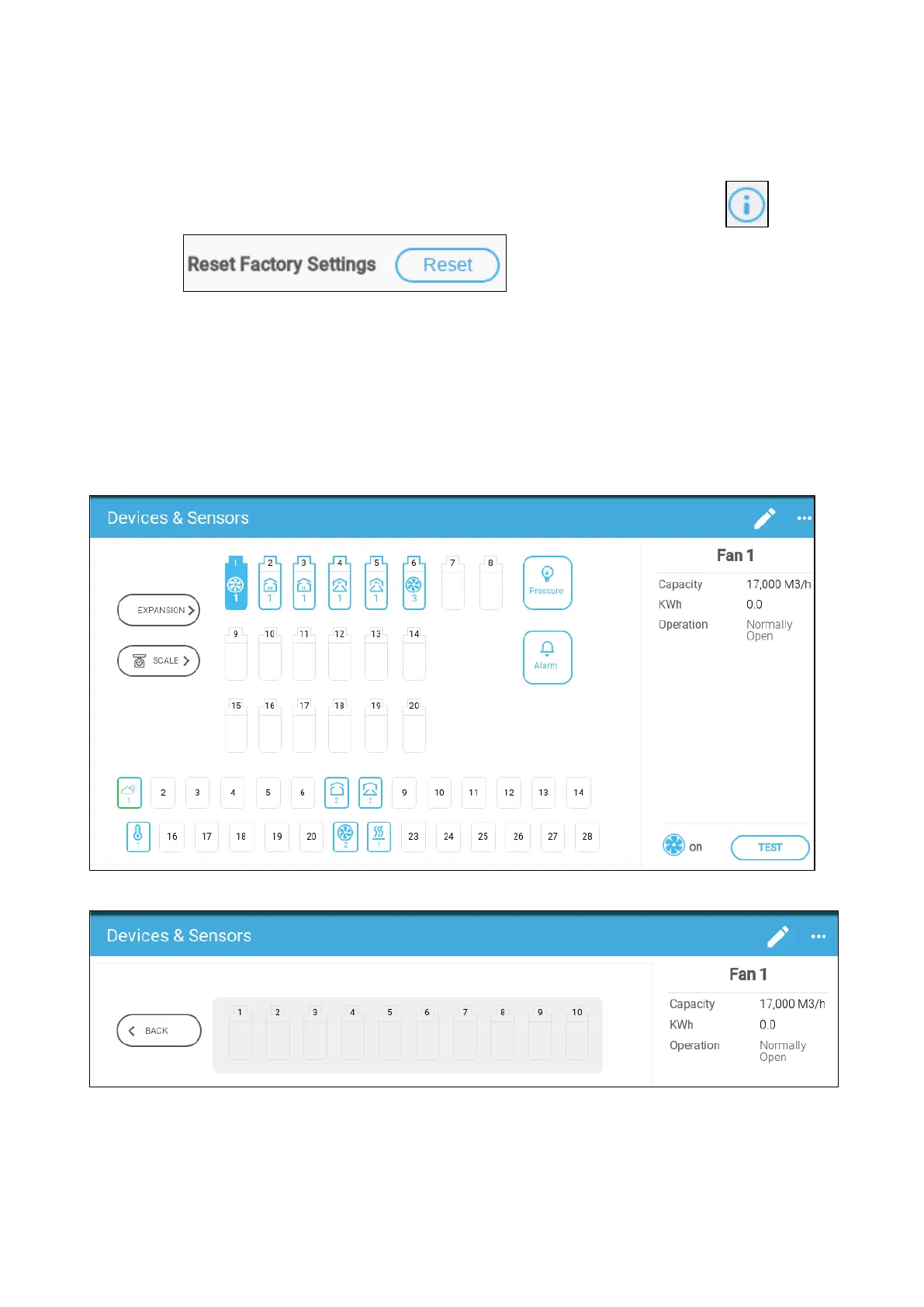

1. Go to System > Device and Sensors.
2. Click Expansion.
3. Map the devices as detailed in the Trio manual. Refer to Mapping Devices, page 44 for more
information.
