7.15.3

ESTING THE

IRD

CALE

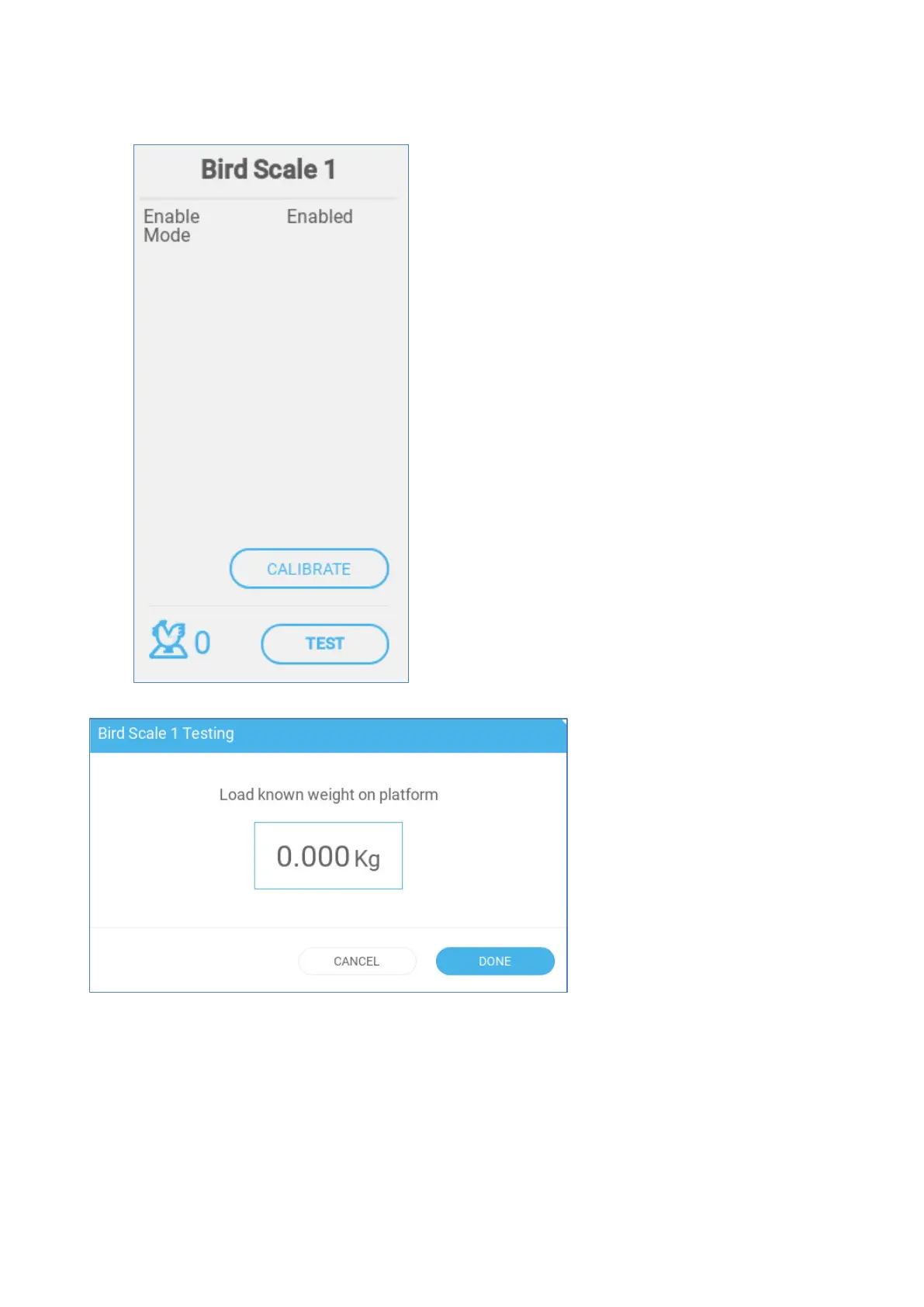

1. Click Test.

2. Place a known weight on the bird scale and click Done.

The result should be fairly close to the true weight.
