Munters Trio Poultry Controller - Analog Input Devices

© Munters AB, 2020 22
3.4.6 A
NALOG
I
NPUT
D
EVICES
• CO2 Sensor Wiring
• Temperature Sensor Wiring
• Humidity Sensor Wiring
• Potentiometer Wiring
• Ammonia Sensor Wiring
• Light Sensor Wiring
3.4.6.1 CO2 Sensor Wiring

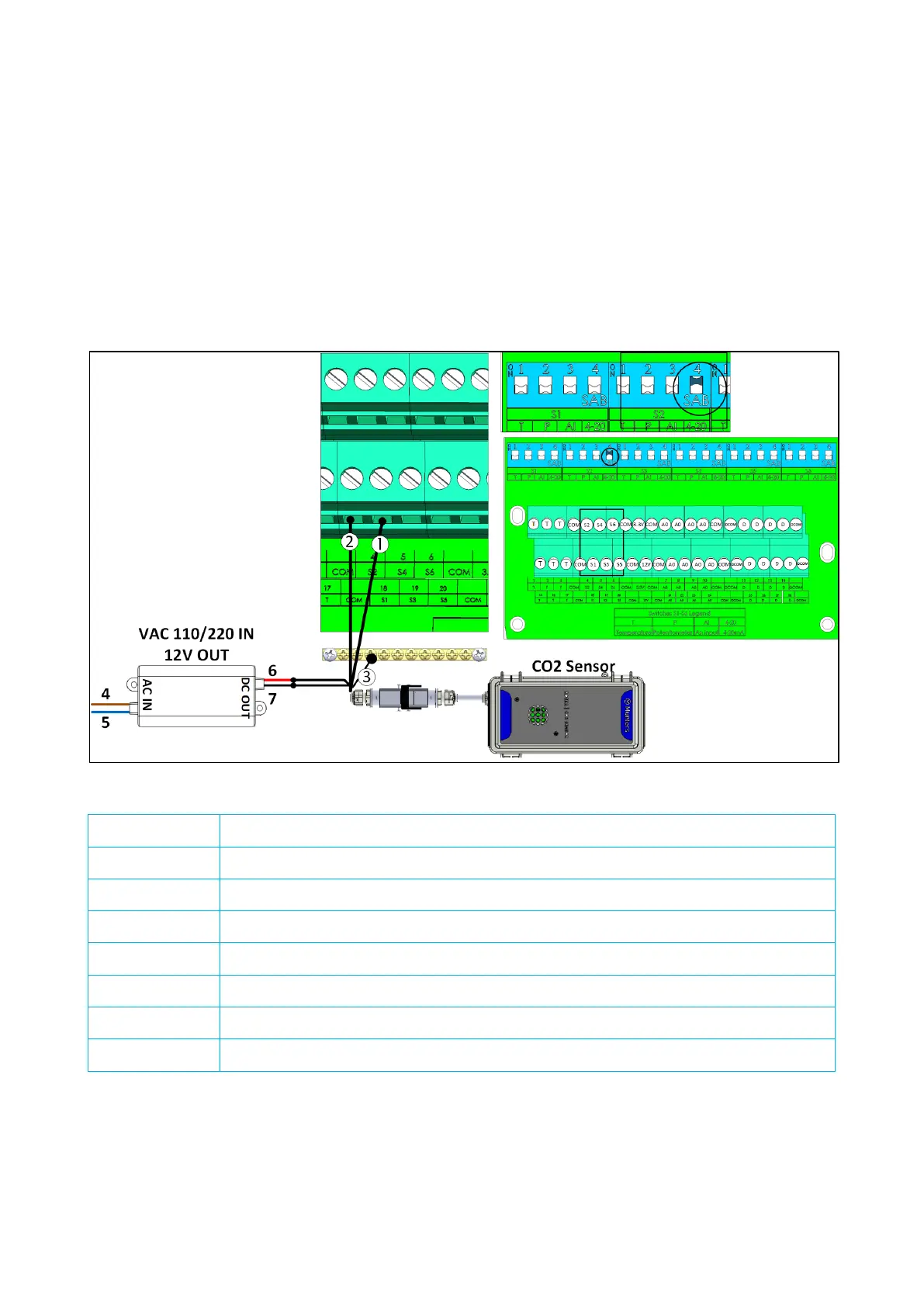

Figure 14: CO2 Sensor Wiring
Number
Function
1 S port
2 COM port
3 Shield wire
4 Brown wire: phase
5 Blue wire: neutral
6 Red wire: +12VDC
7 Black wire: -12VDC
