Munters Trio Poultry Controller - RSU Wiring

© Munters AB, 2020 33
RJB Wire
RSC Ports
Green 2, 5, 8 (Upper)
Black 2, 5, 8 (Lower)
White 3, 4, 6, 7, 9, 10 (Upper)
Note: Connect each RJB white and red
wire to matching ports. For example
White Ch.1 and Red Ch.1
Red 3, 4, 6, 7, 9, 10 (Lower)
3.4.10 RSU W
IRING

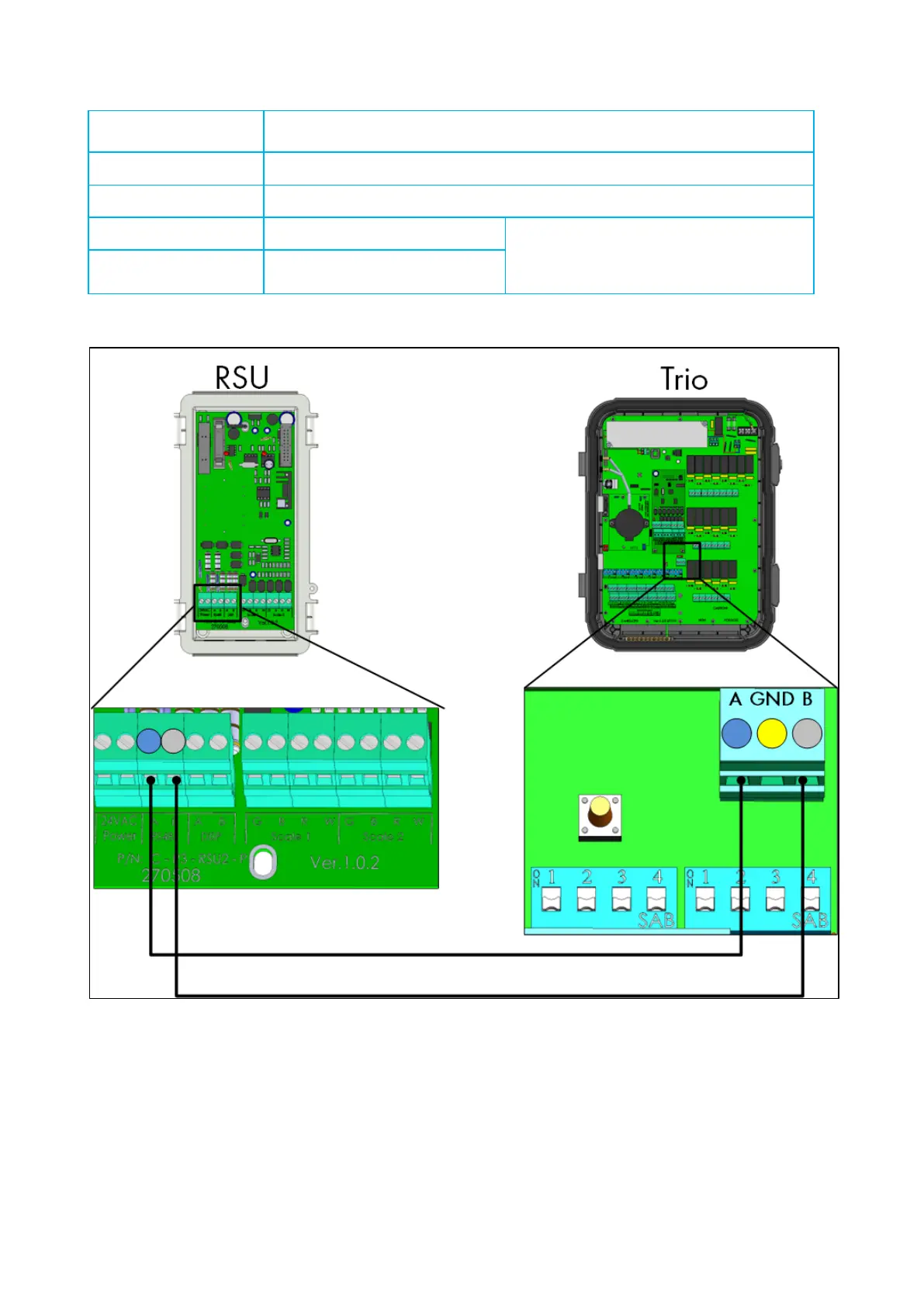

Figure 30: Trio – RSU Wiring
