3.4.9

ILO

IRING

Wire the Trio to an RJB Junction Box and power supply. For details on how to wire the Junction Box to

the load cells, refer to the RJB manual.

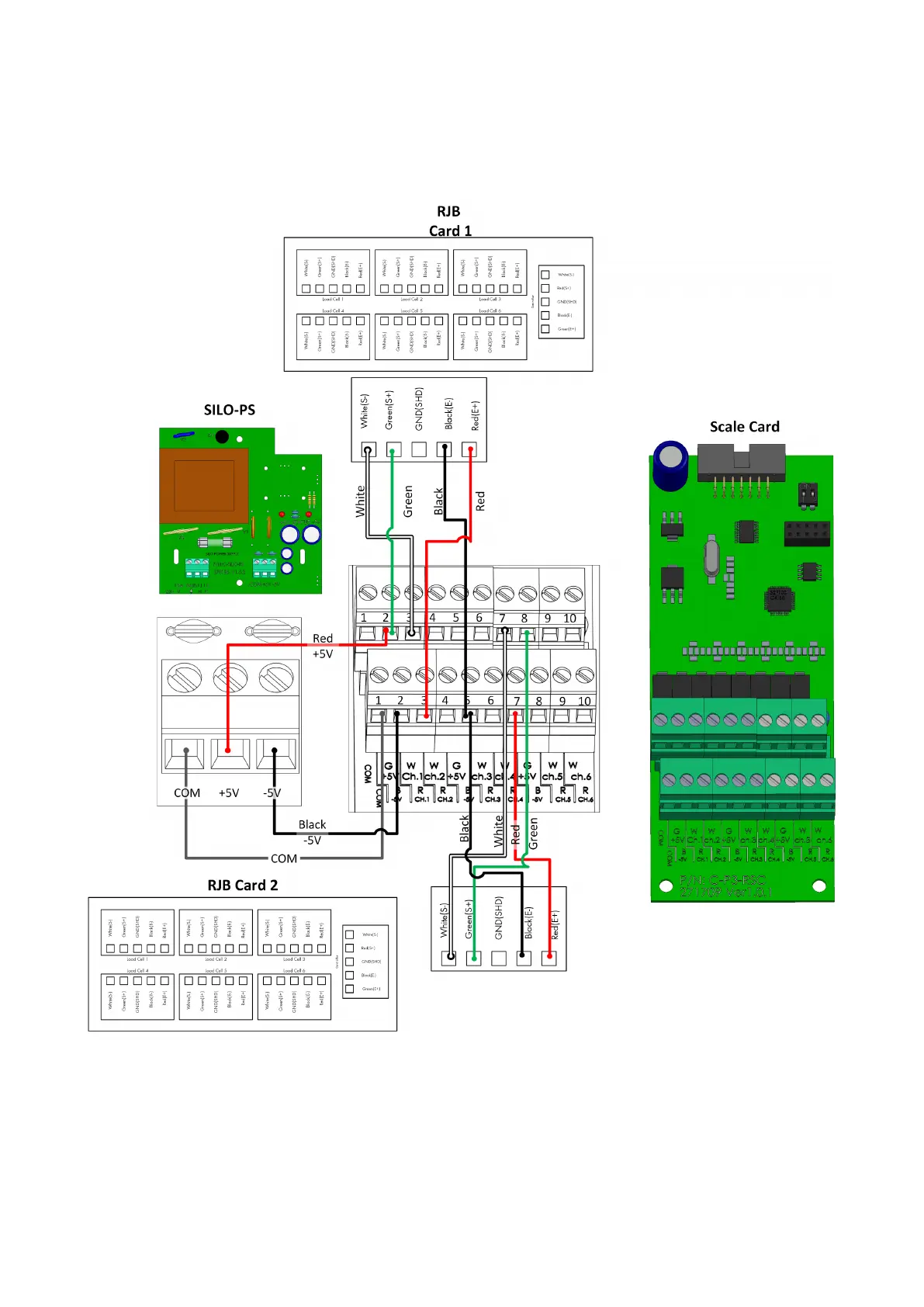

Figure 29: Scale Card wiring to Trio
